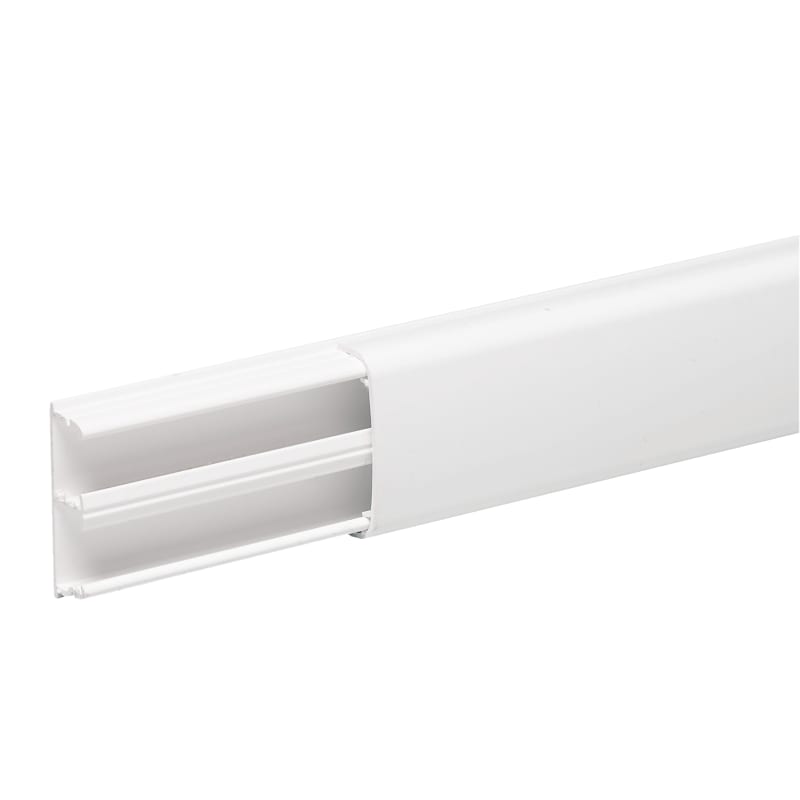

Schneider Electric Mini trunking, OptiLine, 12X30MM, PVC, 2 compartiments + back, polar white tape ISM14225P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM14225P OptiLine Mini Trunking 12x30mm, 2 Rooms, PVC, Pure white, Tape.
Technical Specifications
- Manufacturer part number (MPN)
- ISM14225P
- EAN / GTIN
- 3606489604103
- Sales unit
- m
- Package quantity
- 420 m
- Range of product
- Optiline
- Cabling installation system
- Trunking
- product type
- Mini trunking
- trunking type
- Mini trunking
- Trunking material
- Plastic
- Compartment partitioning
- 2 compartments
- colour
- White (RAL 9003)
- trunking dimension
- 12 x 30 mm
- Fixing mode
- Pre-punched fixing hole 100 mm
- Material
- PVC (polyvinyl chloride)
- quantity per package
- 21 m
- operating temperature
- -25…60 °C
- Length
- 2100 mm
- Height
- 30 mm
- Width
- 12 mm
- Standards
- 73/23/EEC; EN 50085-1:2005; EN 50085-2-1:2006
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.2 cm
- Package 1 Width
- 3.0 cm
- Package 1 Length
- 210.0 cm
- Package 1 Weight
- 389.0 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 20
- Package 2 Height
- 7.6 cm
- Package 2 Width
- 12.8 cm
- Package 2 Length
- 213.4 cm
- Package 2 Weight
- 8.19 kg
- Warranty (in months)
- 18
- Halogen free
- No
- RAL-number
- 9003
- Surface protection
- Untreated
- Pre-stamping
- No
- Material quality
- Polyvinyl chloride (PVC)
- Type of fastening
- Self-adhesive and bottom perforation
- Impact strength
- IK07
- Number of permanent partitions
- 1
- With cable fixing clip
- No
- With duct connector
- No
- Usable cross section
- 230 mm²
- With protective foil
- No
- Degree of protection (IP)
- IP40
- Delivery on roll
- No
- Transparent
- No
- Suitable for circuit integrity
- No
- Cover model
- Loose
- Anti-bacterial treatment
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606489604103
- SAP 1200738940
- Code 83878005
Product Documentation
