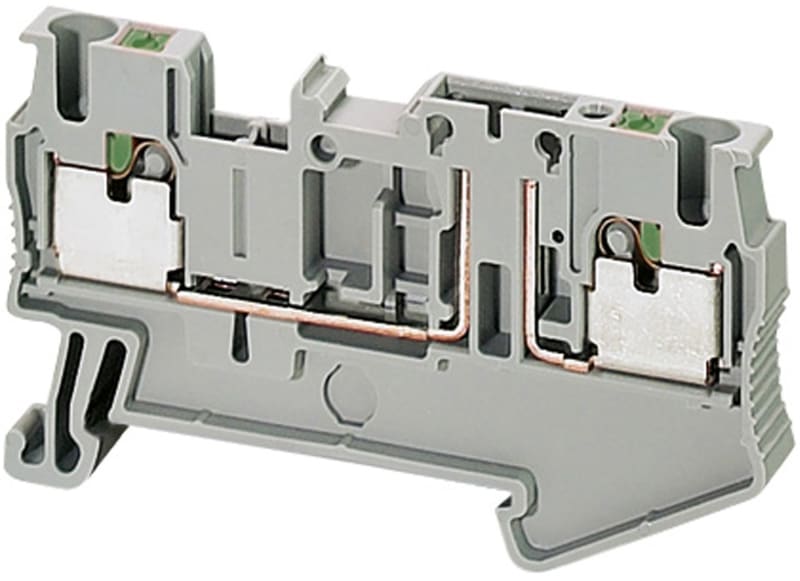

Schneider Electric NSYTRP22TB Linergy TR Push-In Knife Disconnect Terminal Block 2.5 mm² Grey

Schneider Electric NSYTRP22TB is a Linergy TR removable-carrier knife disconnect terminal block rated 2.5 mm² and 20 A at 400 V AC per EN/IEC 60947-7-1. Push-in connections on both the upstream and downstream sides accept 0.14–2.5 mm² flexible or 0.14–4 mm² solid conductors, with a 10 mm stripping length. The single-level polyamide 6/6 body is 5.2 mm wide and clips onto standard 35 mm DIN rail. Supplied in packs of 50 for cylindrical fuses 5×20 mm and 6×32 mm or blade fuses.

Manufacturer part number (MPN)

NSYTRP22TB

EAN / GTIN

3606480533389

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

2.5 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRP

Terminal block type

Removable carrier disconnect

Associated connection component

Diode; Cylindrical fuse; Blade

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

2.5 mm²

Length

62 mm

Colour

Grey

Quantity per set

Set of 50

Fuse size

5 x 20 mm; 6 x 32 mm

Width

5.2 mm

Height

36.5 mm

Connections - terminals

1 x push-in: upstream; 1 x push-in: downstream

number of connections

2

Connection position

Top

Number of measurement input

2

Cable cross section

0.14…2.5 mm², flexible without cable end; 0.14…4 mm², solid

Wire stripping length

10 mm

Tool type

Disconnection: flat screwdriver; Connection: without tool

[Ue] rated operational voltage

400 V conforming to EN/IEC 60947-7-1; 300 V UL; 300 V CSA

[In] rated current

20 A conforming to EN/IEC 60947-7-1; 20 A UL; 20 A CSA

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

8 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; TeSys

Product compatibility

Spacial enclosures

Product certifications

UL; VDE; CSA; GL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

1250

Country of origin

PL

Warranty (in months)

18

Explosion-tested version 'Ex e'

No

Connectable conductor cross section solid-core

0.14–4 mm²

Connectable conductor cross section multi-wired

0.14–2.5 mm²

Rated current In

20 A

Rated voltage

400 V

Type of electrical connection 1

Plug-in connection

Type of electrical connection 2

Plug-in connection

Number of levels

1

Number of clamp positions per level

2

Internally connected stages

No

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

5.2 mm

Depth

62 mm

Closing plate required

Yes

Type of component

Free configurable

HS Code

8536.90
