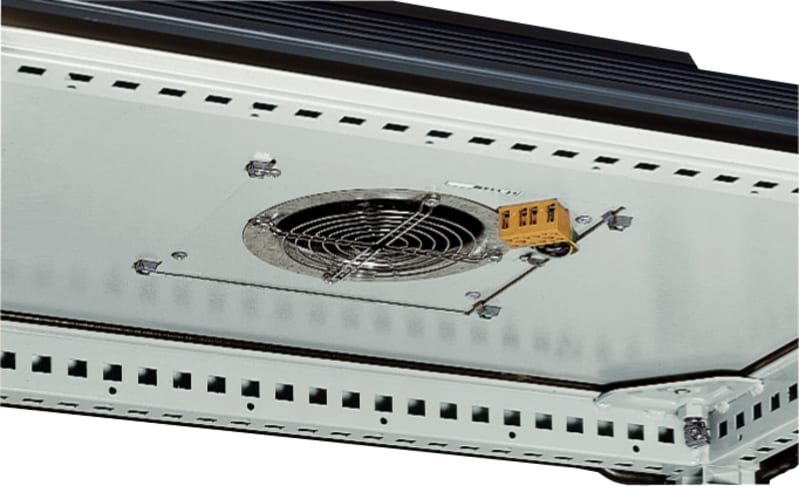

Schneider Electric ClimaSys forced vent. roof, 575M3/h, 230V, with roof outlet grille and filter G2 NSYCVF575M230MF
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF575M230MF CEILING FAN 575M3/H 230V, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF575M230MF
- EAN / GTIN
- 3606480151392
- Sales unit
- pcs
- Voltage
- 230 V
- Flow rate
- 575 m³/h
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Top hood with fan
- Range compatibility
- Prisma Prisma P; Prisma Prisma POLAR WHITE; Prisma Prisma iPM M; Acti 9 enclosure
- Type of filter
- G2
- Input voltage
- 230 V 50/60 Hz
- Absorbed power
- 85 W
- Noise level < at
- 64 dB
- Height
- External: 96 mm
- Width
- External: 340 mm
- Depth
- External : 340 mm
- Cut-out dimensions
- 228 x 228 mm
- Material
- Hood: steel
- Colour
- Hood: grey (RAL 7035)
- IP degree of protection
- IP54
- Device composition
- 1 hood: top of enclosure; 1 fan; 1 fixing elements
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Country of origin
- IT
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With protective cover
- No
- With filter
- No
- Rated power
- 85 W
- Roof fan
- Yes
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 575 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 64 dB(A)
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151392
- SAP 1000089065
- Code 8581363
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric iCT 25A 2NO 2NC 220...240V 50Hz contactor A9C20838
Schneider Electric
Schneider Electric Solid state panel mount relay, 10 A, zero voltage switching, thermal pad, input 3...32 V DC, output 24…300 V AC SSP1A110BDT
Schneider Electric
Schneider Electric PanelSet S3X stainless 304L, Scotch Brite® finish, H800XW800XD300 mm. NSYS3X8830
Schneider Electric
Schneider Electric Mureva BOX - junction box - without - 80X80X45 mm ENN05044
Schneider Electric
Load-break switch changeover switch INS630 3P
31154
Schneider Electric
Schneider Electric Harmony, Solid state relay, 20 A, DIN rail mount, zero voltage switching, input 90…280 V AC/DC, output 48...600 V AC SSD1A320M7C1
Schneider Electric

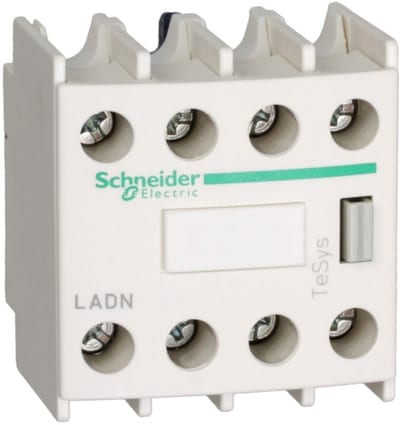

Schneider Electric Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals, EN 50012 LADN22G
