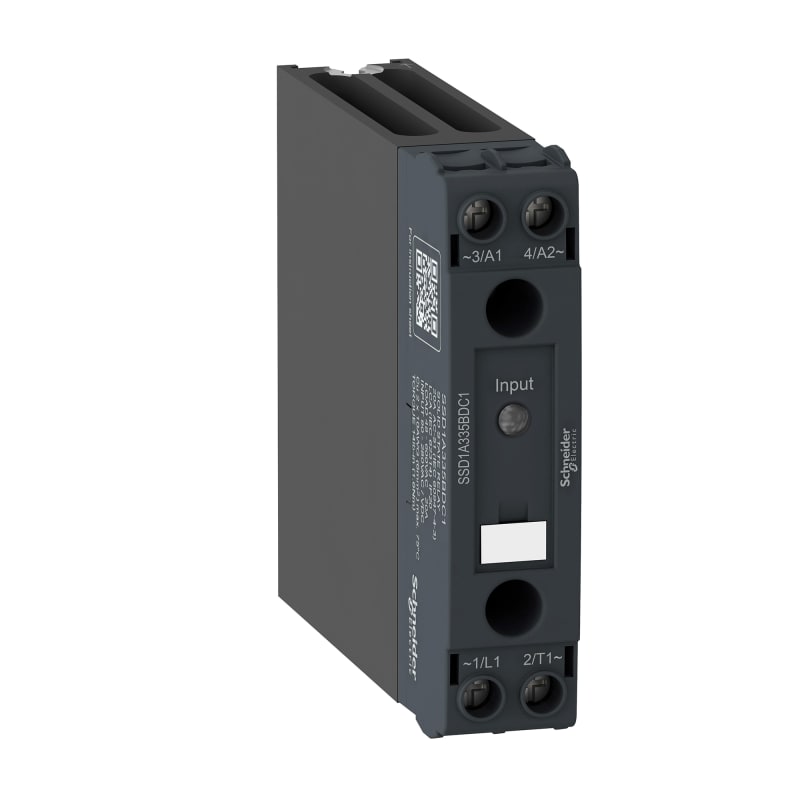

Schneider Electric Harmony, Solid state relay, 20 A, DIN rail mount, zero voltage switching, input 90…280 V AC/DC, output 48...600 V AC SSD1A320M7C1

Schneider Electric SSD1A320M7C1 Solid state relay-DIN rail, 1-phase, 48-600VAC output, 90-280VAC/VDC control, 20A.

Manufacturer part number (MPN)

SSD1A320M7C1

EAN / GTIN

3606489807832

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

Voltage

48-600 V AC

Rated current

20 A

Range of product

Harmony Solid State Relays

Product or component type

Modular DIN rail relay

Device short name

SSD1

Number of channels

1

Number of phases

1 phase

Product configuration type

Relay configuration

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715

Output switching mode

Zero voltage switching

operating frequency

47...440 Hz

Rated duty

Uninterrupted

Output voltage

48...600 V AC

control circuit voltage

90...280 V AC/DC

Tightening torque

1.5...1.7 N.m for control input; 13...15 lb.in for control input; 1.5...1.7 N.m for load output; 13...15 lb.in for load output

Connections - terminals

screw terminals, clamping connection capacity:1...4 mm², 18 AWG...12 AWG for input; screw terminals, clamping connection capacity:1...6 mm², 18 AWG...10 AWG for output

Dielectric strength

4 kV AC for input/output circuit; 4 kV AC for input or output to case

rated impulse withstand voltage

6 kV for input/output circuit; 6 kV for input or output to case

Insulation resistance

1000 MOhm at 500 V DC

Local signalling

LED (green) for control voltage

pick-up voltage

90 V AC/DC turn-on

drop-out voltage

5 V AC/DC turn-off

input current range

6…10 mA

solid state switching type

Zero voltage switching

Load current

0.2…20 A

transient overvoltage

1200 V

Inrush current

300 A at 60 Hz

Maximum voltage drop

<1.3 V on-state

motor controller rating

0.37 kW/0.5 hp at 120 V AC; 1.12 kW/1.5 hp at 240 V AC; 2.24 kW/3 hp at 480 V AC

Electromagnetic compatibility

Electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2; Electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2; Conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6; Electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4; Radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3; Radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3; Radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3; Surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5; Surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5; Surge immunity test 1 kV criteria A input ports line to line conforming to IEC 61000-4-5; Surge immunity test 2 kV criteria A input ports line to earth conforming to IEC 61000-4-5; Radiated emission environment B for AC input supply conforming to IEC 60947-4-3; Conducted emission environment A for AC input supply conforming to IEC 60947-4-3; Immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11; Immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11

device form designation

Form 5 semiconductor output DOL contactor

Maximum I²t for fusing

409 A².s for 10 ms; 375 A².s for 8.33 ms

Maximum leakage current

1 mA off-state

DV/dt

500 V/µs off-state at maximum rated voltage

Response time

20 ms (turn-on); 30 ms (turn-off)

Power factor

0.5 with maximum load

short circuit protection coordination

Type 1; Type 2

Overvoltage category

III

Width

22.5 mm

Height

95.0 mm

Depth

117.0 mm

test button

Without test button

Product weight

0.3 kg

Device presentation

Complete product

[Ui] rated insulation voltage

600 V

Flammability rating

V-0 conforming to UL 94

Vibration resistance

0.75 mm (f = 10…150 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27; 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27

Pollution degree

2

Standards

IEC 61373:class B: category 1; IEC 60947-4-3; IEC 62314; IEC 60950-1

IP degree of protection

IP20

Ambient air temperature for operation

-40…80 °C

Ambient air temperature for storage

-40…100 °C

Country of origin

MX

Warranty (in months)

18
