Modular unit 84M H600XW600
Pricing
Request a quote
We reply within 24 hours
Product Description

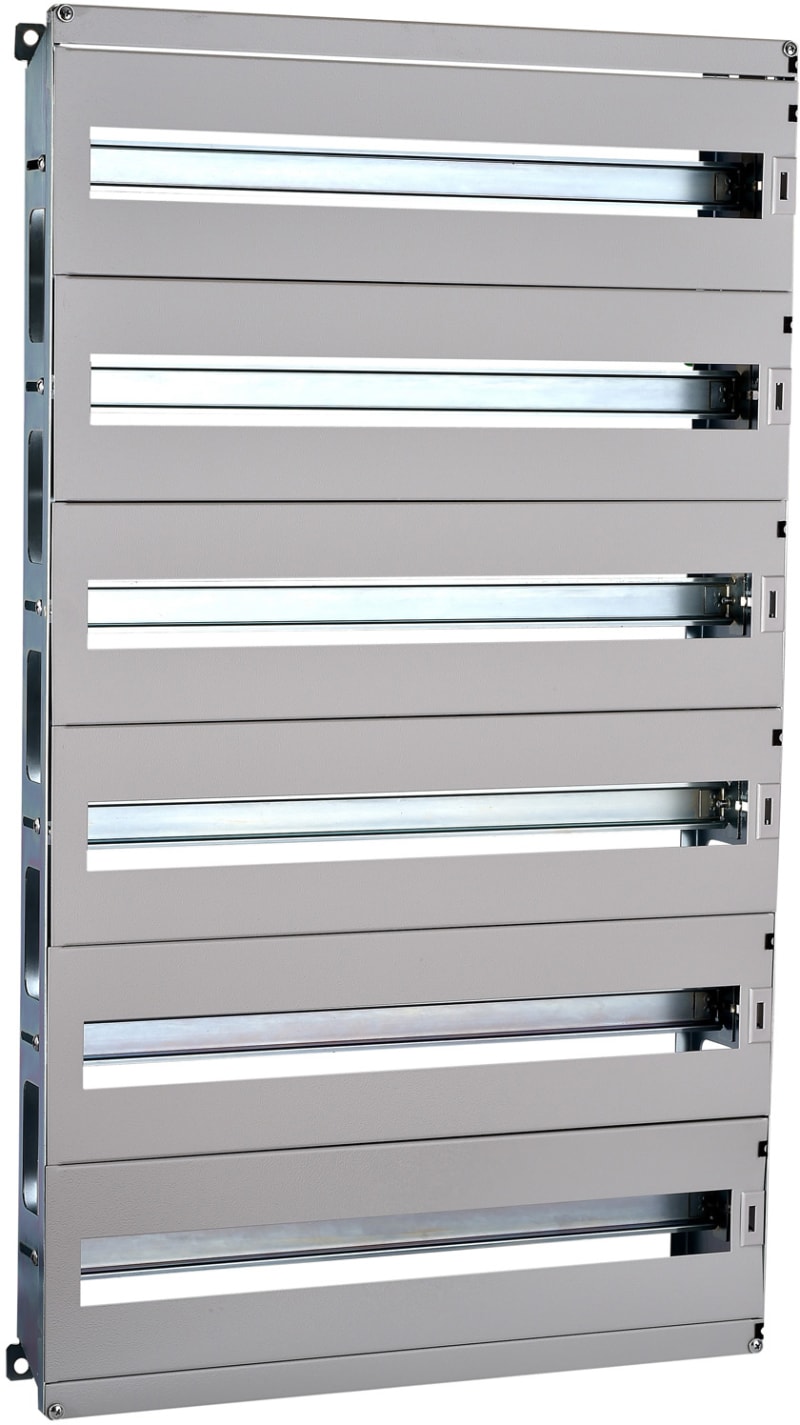

Schneider Electric NSYDLM84 Modular unit 84m H600xW600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLM84 EAN / GTIN: 3606480162558 Sales unit: pcs Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Modular distribution application; Multi-purpose Product or component type: Chassis Device short name: DLM For enclosure nominal dimensions: - Mounting location: Front of enclosure; Step slide Range compatibility: PanelSeT S3D; PanelSeT CRN Device composition: 1 chassis structure; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 3 front panels with 35 mm DIN rail; 1 plain front panel with mounting plate Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on front and back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 3 Total number of 18 mm modules: 84 Type of front plate: Plain and cut-out plates Number of cut-out: 3 cut-outs Height: 753 mm Width: 555 mm Depth: 101.5 mm Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 12.000 cm Package 1 Width: 56.000 cm Package 1 Length: 77.000 cm Package 1 Weight: 8.078 kg Unit Type of Package 2: PAM Number of Units in Package 2: 20 Package 2 Height: 135.000 cm Package 2 Width: 100.000 cm Package 2 Length: 120.000 cm Package 2 Weight: 175.000 kg Country of origin: ES Warranty (in months): 18 Type of covering: With notch Number of DIN-rails: 3 Number of modular spacings per DIN-rail: 28
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480162558
- SAP 1000470577
- Code 8580134
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Spacial 2 Cable Supports 120° for 800 mm Enclosure
NSYCFS128
Schneider Electric
Schneider Electric ACTI9 iPB 1NO-1NC double push button green/red A9E18034
Schneider Electric
Schneider Electric Actassi 19-C Patch Panel RJ45 shutter Green pack of 24PCS VDIM11U243
Schneider Electric
Schneider Electric Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19 AP8681
Schneider Electric
Sign Frame flush with sign (ZBYF6102)
Schneider Electric
Schneider Electric Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 3 positions, stay put, 2NO XB4FD33
Schneider Electric
Schneider Electric TeSys K -Time delay auxiliary contact block - 1 C/O - 24...48 V - 1…30S LA2KT2E
Schneider Electric
Schneider Electric Interface plug-in relay, 10 A, 1 CO, LED, 120 V AC RXG13F7
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYDLM84?
- NSYDLM84 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYDLM84.
- What is the HS code for NSYDLM84?
- The customs tariff (HS) code for NSYDLM84 is 8538.10.
- Who manufactures NSYDLM84?
- NSYDLM84 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYDLM84?
- Yes — the NSYDLM84 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYDLM84?
- The minimum order quantity is 1.
- Is NSYDLM84 available?
- Yes — NSYDLM84 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
