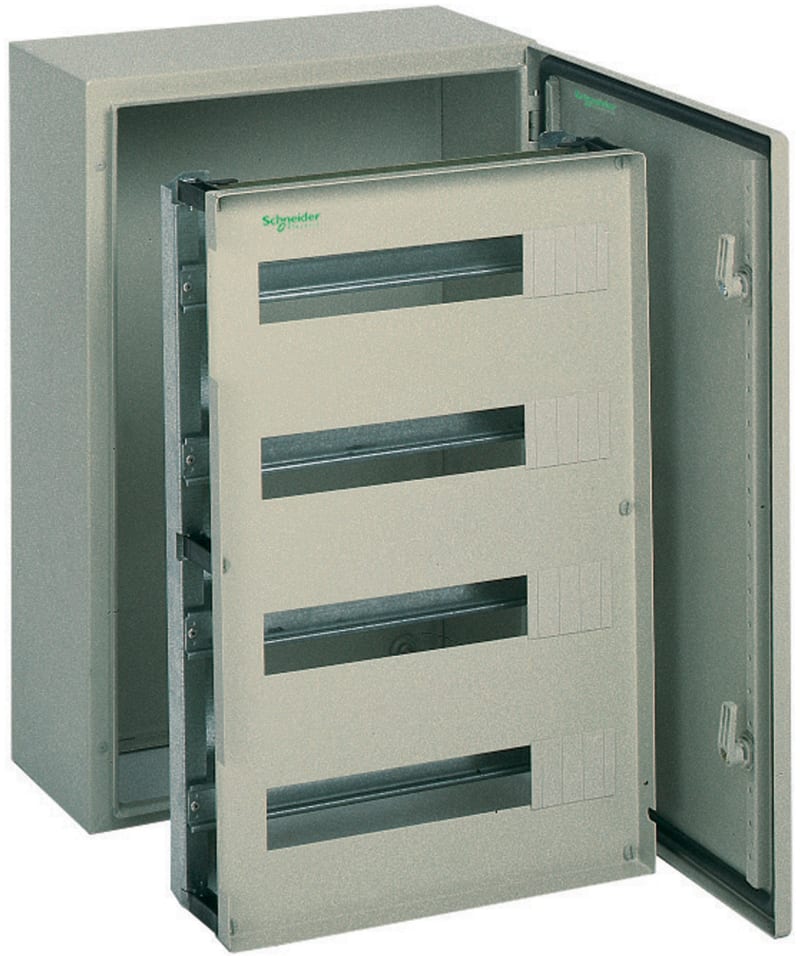

Modular unit 18M 300X250X150
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYDLCR18 Modular unit 18M 300x250x150.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLCR18 EAN / GTIN: 3606480162633 Sales unit: pcs Dimensions: 300×250×150 Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Multi-purpose; Modular distribution application Product or component type: Chassis Device short name: DL For enclosure nominal dimensions: - Mounting location: Front of enclosure Range compatibility: PanelSeT CRN Device composition: 1 chassis structure; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 1 front panel; 2 35 mm DIN rail Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 2 Total number of 18 mm modules: 18 Type of front plate: Plain and cut-out plates Number of cut-out: 2 cut-outs Height: 255 mm Width: 205 mm Depth: 110 mm Number of Units in Package 1: 1 Number of Units in Package 2: 200 Warranty (in months): 18 With mounting plate: No Type of covering: With notch With cover: No Number of DIN-rails: 2 Number of modular spacings per DIN-rail: 9 With N-PE clamp: Yes Country of origin: Spain
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606480162633
- SAP 1000317790
- Code 81015586
Product Documentation
