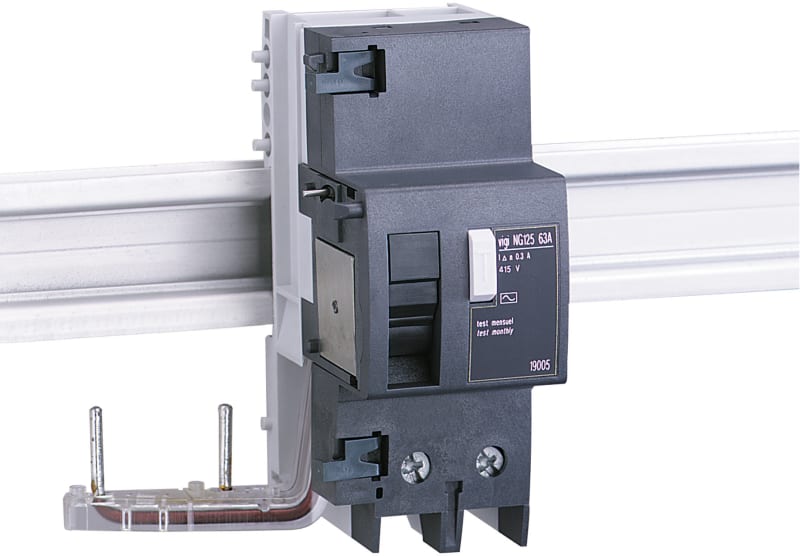

VIGI NG125 2-63 300 MA (19012)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 19012 Vigi NG125 2-63 300 mA.
Technical Specifications
- Manufacturer part number (MPN)
- 19012
- EAN / GTIN
- 3303430190127
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Nominal voltage
- 230–415 V
- Nominal current
- 63 A
- Rated fault current adjustable
- No
- Rated fault current
- 0.3 A
- Delay adjustable
- No
- Number of poles
- 2
- Leakage current type
- A
- Surge current capacity
- 3 kA
- Frequency
- 50/60 Hz
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Anti-nuisance tripping version
- No
- With interlocking device
- Yes
- Degree of protection (IP)
- IP20
- Pollution degree
- 3
- Ambient temperature during operating
- -25–60 °C
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3303430190127
- SAP 1000048069
- Code 8798651
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 32A, 48VDC coil, screw clamp terminal LC1D188ED
Schneider Electric
Mounting KIT (LA9D511)
Schneider Electric
Ronis set 2 locks + 1 key, pocket MTZ1
LV864913SP
Schneider Electric
Schneider Electric VW3A9114 IP31 Cable Entry Kit for ATV900/71/61 Drives
Schneider Electric
Plinth 7035 PLAZ 200X1285X410
NSYZZ2124G
Schneider Electric

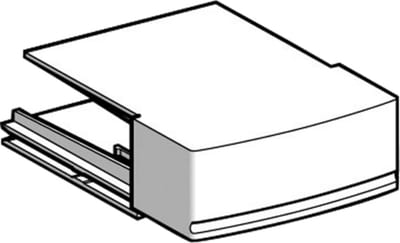

TeSysU LULC15 E. RESISTOR 120 OHM
LU9RFL15
Schneider Electric

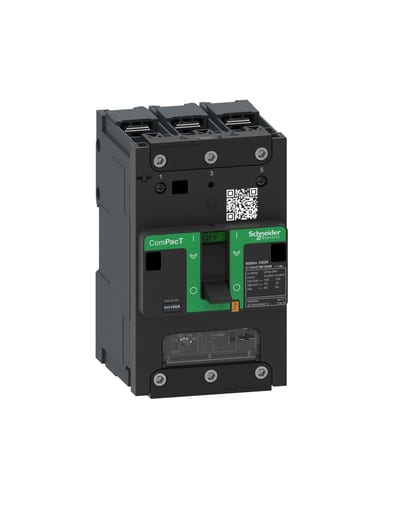

Schneider Electric Circuit breaker, ComPacT NSXm 160N, 50KA/415VAC, 3 poles, TMD trip unit 160A, lugs/busbars C12N3TM160B
Schneider Electric

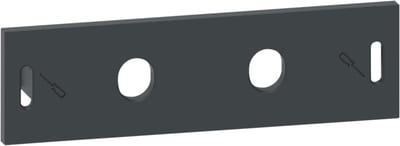

Front Cover for LR9G115 / 225
