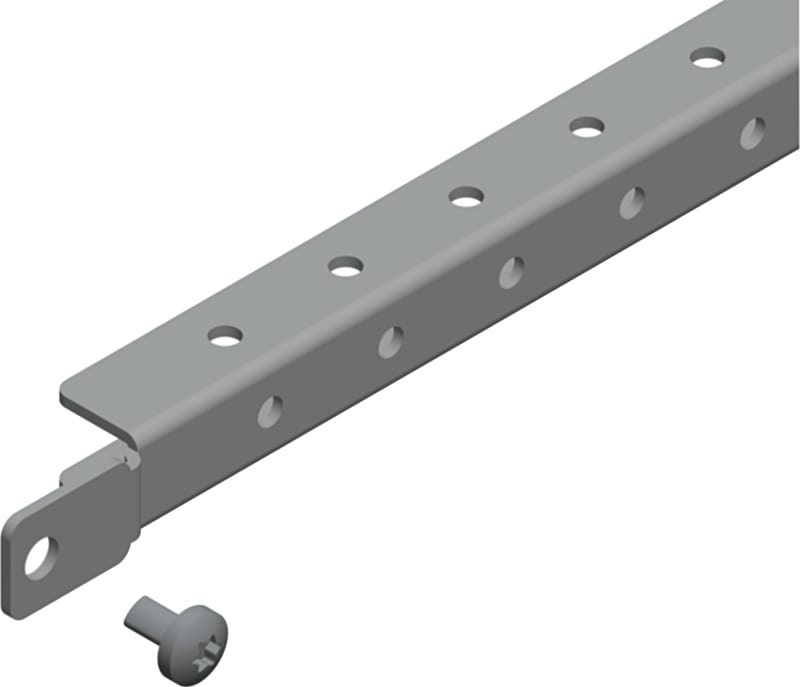

Schneider Electric PanelSet SF/SM door cross rails - nominal width: 500 mm NSYSDCR5
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDCR5 2 rails for door 500.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDCR5
- EAN / GTIN
- 3606485131351
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Door cross rail
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Mounting location
- On door reinforcement frame
- Mounting support
- Direct mounting
- Range compatibility
- PanelSeT SF SF, SM, SFX and SMX enclosures
- Device composition
- 2 x cross rail; 1 x bag of fixing
- Quantity per set
- Set of 1
- Material
- Body of the rail: galvanised steel
- Surface finish
- Zinc coated
- Adjustment
- Adjustable in height every 25 mm for on door reinforcement frame
- Height
- Nominal: 18 mm
- Width
- Nominal: 500 mm
- Depth
- 18.6 mm
- thickness
- 2 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 5.000 cm
- Package 1 Length
- 38.000 cm
- Package 1 Weight
- 540.000 g
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 200
- Package 2 Height
- 40.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 119.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
Cross References
- EAN 3606485131351
- SAP 1000470689
- Code 8932268
