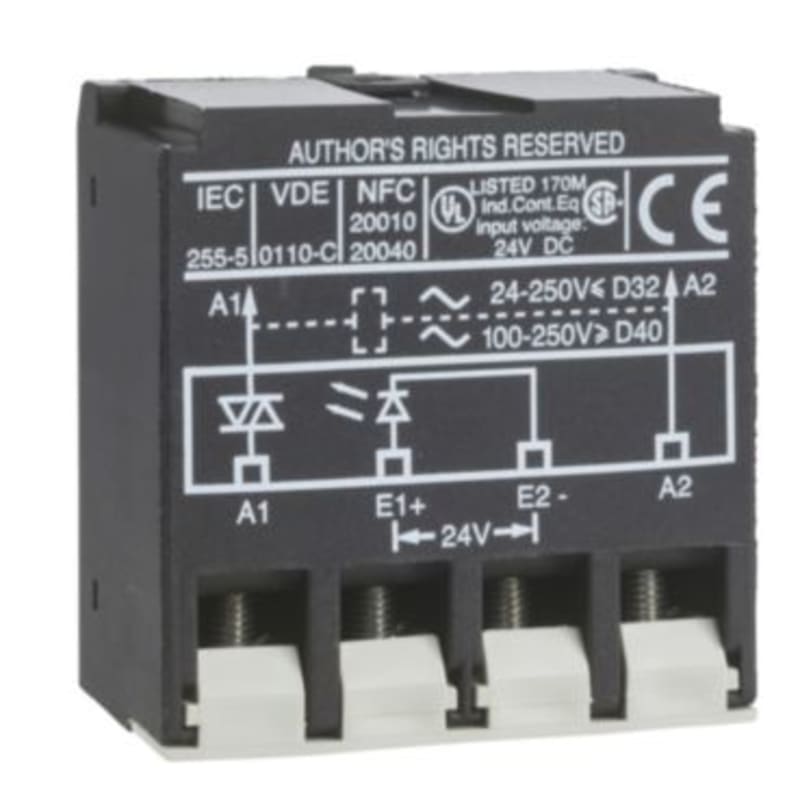

Schneider Electric TeSys D - interface amplifier module - solid state - 24 V DC / 250 V AC LA4DWB

Schneider Electric LA4DWB InterfACemodul 24V Static.

Manufacturer part number (MPN)

LA4DWB

EAN / GTIN

3389110236477

Sales unit

pcs

Package quantity

70 pcs

Voltage

24 V

Range

TeSys

Device short name

LA4D

Poles description

3P

Product or component type

Interface module

Product compatibility

LC1D09...D115

mounting mode

Top mounted

Technology type

Solid state

[Us] rated supply voltage

24 V DC

Control circuit voltage limits

5...30 V at 20 °C DC

[Ui] rated insulation voltage

250 V - for control circuit conforming to IEC 60947-5-1

Connections - terminals

Control circuit: connector 1 cable(s) 1…2.5 mm²flexible with cable end; Control circuit: connector 1 cable(s) 1…2.5 mm²flexible without cable end; Control circuit: connector 1 cable(s) 1…2.5 mm²solid with cable end; Control circuit: connector 1 cable(s) 1…2.5 mm²solid without cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²flexible with cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²flexible without cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²solid with cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²solid without cable end

[Ue] rated operational voltage

Control circuit: 24...250 V AC

Current consumption

8.5...15 mA 20 °C

Current state 0 guaranteed

<= 2 mA

Voltage state 0 guaranteed

< 2.4 V

Voltage state 1 guaranteed

5 V

Electrical durability

20 Mcycles at 240 V

Local signalling

LED indicator

Height

19 mm

Product weight

0.045 kg

Standards

IEC 60255-5

Product certifications

CSA; UL

[Ith] conventional free air thermal current

8 A 50 °C

Protection type

Built-in by diode

IP degree of protection

IP2X conforming to IEC 60529

Ambient air temperature for operation

-25…55 °C

Permissible ambient air temperature around the device

-25…70 °C

Ambient air temperature for storage

-40…80 °C

Heat dissipation

0.4 W for control circuit

Immunity to microbreaks

1 ms

Number of Units in Package 1

1

Number of Units in Package 2

70

Country of origin

TN

Warranty (in months)

18

With integrated suppressor

No

Rated control supply voltage DC

24 V

Voltage type (operating voltage)

AC

Operating voltage AC 50 Hz

24–250 V

Operating voltage AC 60 Hz

24–250 V

Type of set-up

Direct attachment

Voltage type for actuating

DC

HS Code

8536.49
