Basefront 100X1200 (NSYSPF12100)
Pricing
Request a quote
We reply within 24 hours
Product Description

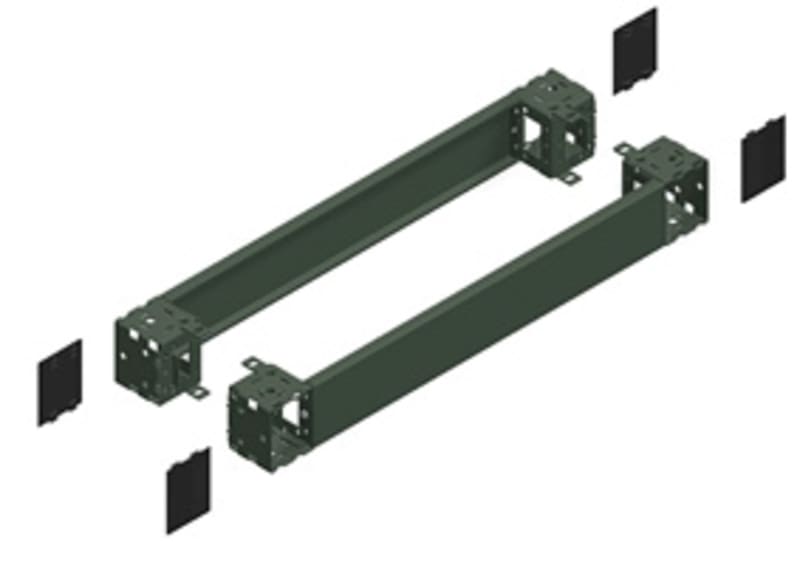

Schneider Electric NSYSPF12100 — Front & rear plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W1200mm, plinth H100mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSPF12100
- EAN / GTIN
- 3606485126593
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Plinth front
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Device composition
- fixing elements; 4 corner cover; 1 front panel; 1 rear panel; 4 corner
- Range compatibility
- PanelSeT SF; PanelSeT SM; PanelSeT S3D; PanelSeT CRN; PanelSeT SFN
- Mounting support
- Plinth side panels
- Fixing mode
- By fixing element - on structure location
- Colour
- Grey (RAL 7022)
- Surface finish
- Epoxy-polyester powder
- Permanent permissible load
- 1300 kg
- Height
- 100 mm
- Width
- Nominal: 1200 mm
- IP degree of protection
- IP20 (complete plinth)
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.500 cm
- Package 1 Width
- 20.000 cm
- Package 1 Length
- 122.000 cm
- Package 1 Weight
- 6.500 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 40
- Package 2 Height
- 101.000 cm
- Package 2 Width
- 101.000 cm
- Package 2 Length
- 121.000 cm
- Package 2 Weight
- 274.000 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Base front/back
- Depth
- 1200 mm
- Max. load capacity
- 1300 kg
- Suitable for enclosure building width
- 1200 mm
- Material
- Steel
- RAL-number (similar)
- 7030
- Suitable for outdoor set-up
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485126593
- SAP 1000317643
- Code 81015404
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric METSEPM5561 PM5561 Meter, 2 ethernet, up to 63TH H, 1,1M 4DI/2DO 52 alarms, MID
Schneider Electric
Inf.Shuko 10/16 2P+J IP65
81141
Schneider Electric
Schneider Electric OptiLine Mini 18x35mm End Piece White (ISM14404P)
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminals GV2P04
Schneider Electric
CYB-AD Adapter SCREW WHITE
5940055
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 50A, 110V AC 50/60Hz coil, screw clamp terminals LC1D50AF7
Schneider Electric
Patch CORD STP CAT. 6A 0,5M BLUE
ACTPC6ASFLS05BU
Schneider Electric
Linergy DX(Polyblock) 160A 1P -6 HOLES G/P
LVS04031
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSPF12100?
- NSYSPF12100 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSPF12100.
- What is the HS code for NSYSPF12100?
- The customs tariff (HS) code for NSYSPF12100 is 7326.90.
- Who manufactures NSYSPF12100?
- NSYSPF12100 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSPF12100?
- Yes — the NSYSPF12100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSPF12100?
- The minimum order quantity is 1.
- Is NSYSPF12100 available?
- Yes — NSYSPF12100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
