Schneider Electric SMX 316L stainless monobloc enclosure, H2000XW1000XD400MM, Scotch Brite® finish. NSYSMX201040H
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSMX201040H SMX 316L 2000x1000x400.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSMX201040H
- EAN / GTIN
- 3606480155857
- Sales unit
- pcs
- Dimensions
- 2000×1000×400
- Range
- PanelSeT
- Product name
- PanelSeT SMX
- enclosure type
- Multi-purpose
- category
- Compact enclosure
- nominal height
- 2000 mm
- nominal width
- 1000 mm
- nominal depth
- 400 mm
- product installation
- Floor-standing
- Device composition
- 1 body; 2 door; 1 cable gland plate; 1 locking system with handle: door; 4 mounting plate bracket
- Body type
- Single piece body folded and welded
- Door type
- Plain
- Door opening side
- Reversible (120 °)
- Number of doors
- Front face: 2 door(s)
- Lock type
- 3 points lock, handle with 5 mm double-bar insert
- Type of gland plate
- Plain
- Accessibility for operation
- Front
- Mounting plate description
- Without mounting plate
- Material
- Handle: zamak; Hinge: stainless steel; Body and door: stainless steel 316L
- Removable parts
- Door by hinges; Mounting plate bracket by screws; Cable gland plate by clips
- Surface finish
- Enclosure: Scotch-Brite® brushed; Handle: painted
- Product weight
- 126 kg
- Standards
- IEC 62208; UL; CUL
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Product certifications
- CAN/CSA 22; UL 508
- Environmental characteristic
- Corrosive; Specific hygiene
- Number of Units in Package 1
- 1
- Country of origin
- BG
- Warranty (in months)
- 18
- Colour
- Stainless steel
- Width
- 1000 mm
- Height
- 2000 mm
- Depth
- 400 mm
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 316 (V4A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- Yes
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Brushed/grinded
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- Yes
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480155857
- SAP 1000469992
- Code 8923209
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 1P+N, 25A, A type, instantaneous, 300MA, 230VAC A9Y81625
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 80A C10R4TM080
Schneider Electric
Hinged FRONTPL.-13M-With CUTOUT-400MM-P
LVS03723
Schneider Electric

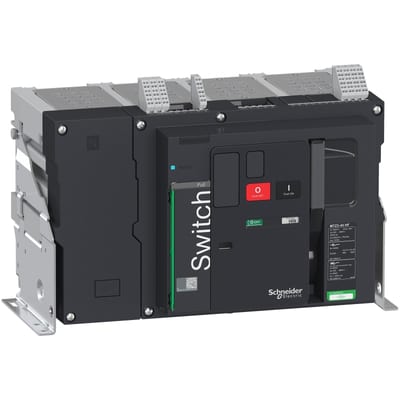

Schneider Electric switch disconnector Masterpact MTZ2 40 HF, 4000 A, 4 poles, fixed LV848101
Schneider Electric

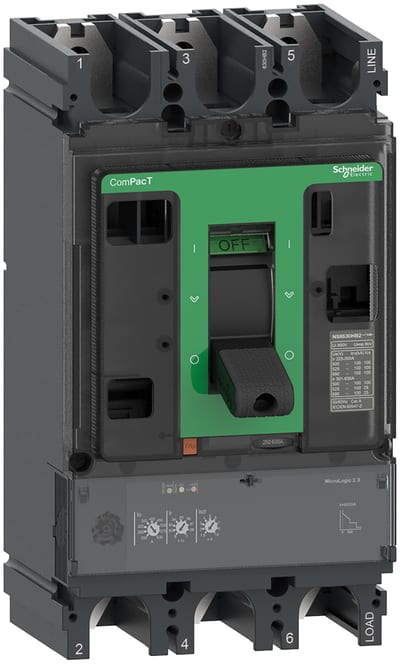

Schneider Electric Circuit breaker, ComPacT NSX630R, 200KA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A C63R32D630
Schneider Electric

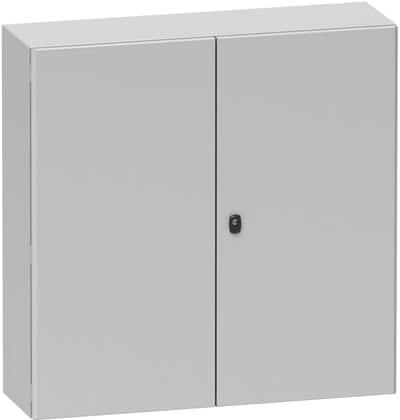

S3D 800X1200X300 M/2 Doorer
