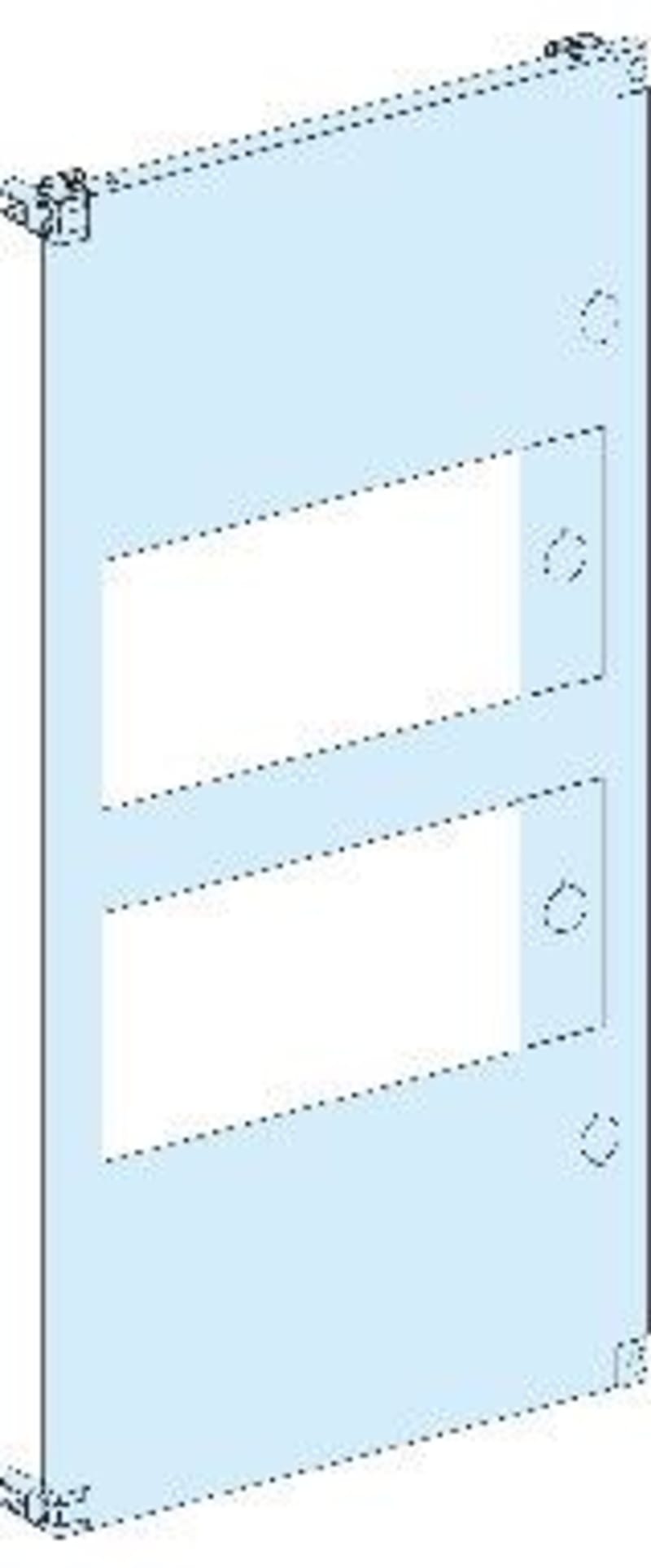

Hinged FRONTPL.-13M-With CUTOUT-400MM-P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03723 Hinged Front plate-13Modules-with cutout for instrument-for 400mm section-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03723
- EAN / GTIN
- 3606481872388
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Hinged; Cut-out
- Installed device
- Human-switchboard interface: 72 x 72 mm device; Human-switchboard interface: 96 x 96 mm device
- Enclosure/cubicle description
- Cubicle duct - width 400 mm depth 400 mm
- Number of vertical modules [50 mm]
- 13
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 319 mm
- Height
- 650 mm
- Product weight
- 2.08 kg
- Quantity per set
- Set of 1
- functional unit
- 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface 72 x 72 mm device 6; 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface 96 x 96 mm device 4
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 10
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 400 mm
- Number of height units
- 13
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872388
- SAP 1200546740
- Code 82880732
Product Documentation
