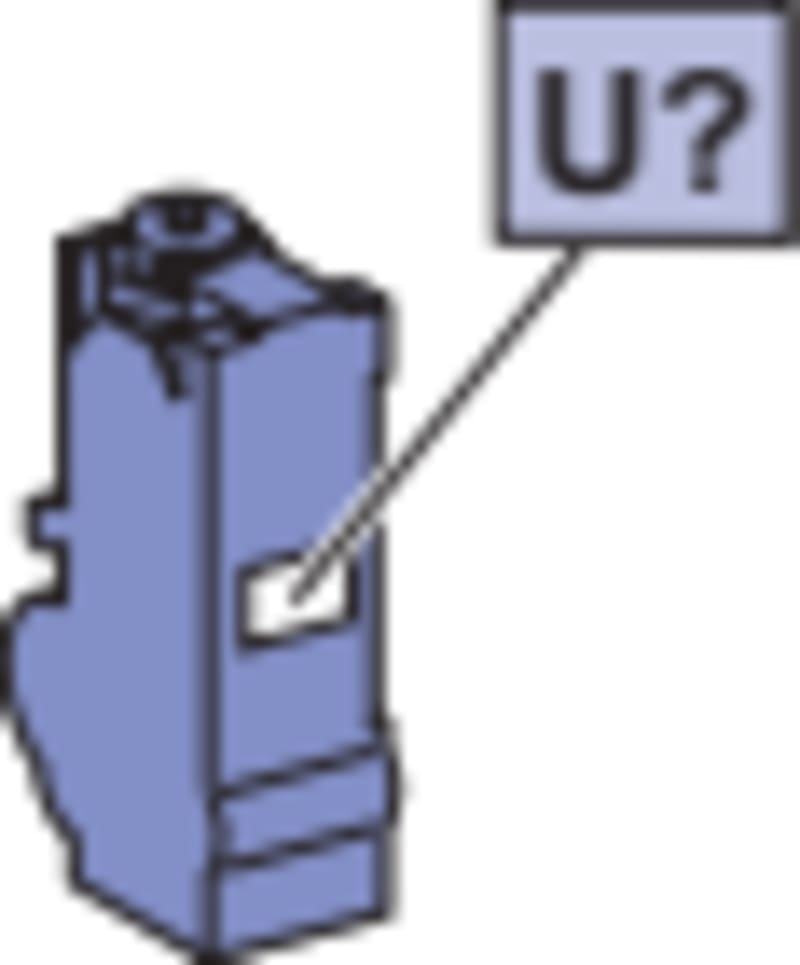

Schneider Electric standard motor mechanism module (MCH), fixed ComPact NS630B to NS1600, 200/250 VDC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 33693 Motor operator 200/250 V DC Fo.
Technical Specifications
- Manufacturer part number (MPN)
- 33693
- EAN / GTIN
- 3303430336938
- Sales unit
- pcs
- Device short name
- MCH
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NS630b...1600 circuit breaker
- Control type
- Standard
- [Uc] control circuit voltage
- 200...250 V DC
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 1250 A; 1600 A; 800 A; 1000 A; 630 A
- Control signal type
- Maintained; Impulse
- circuit breaker response time
- 60 ms +/- 10 ms open; 60 ms +/- 10 ms closed
- Maximum operating frequency
- <= 3 cycles per minute
- Maximum power consumption in VA
- 180 VA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.900 cm
- Package 1 Width
- 14.800 cm
- Package 1 Length
- 19.800 cm
- Package 1 Weight
- 1.154 kg
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 20
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 23.500 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 320
- Package 3 Height
- 90.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 388.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated control supply voltage DC
- 200–250 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3303430336938
- SAP 1200722426
- Code 83837253
