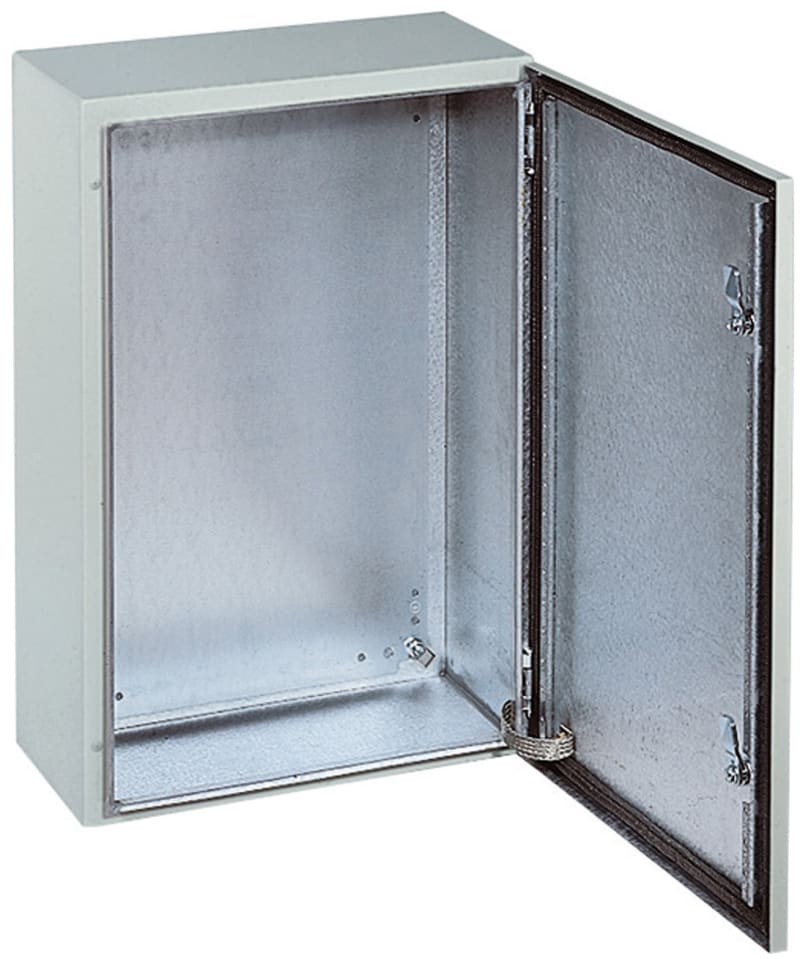

Schneider Electric PanelSet S3HF H600XW600XD250 EMC-immunity IP55 RAL7035 NSYS3HF6625P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3HF6625P EMC CABINET 600X600X250.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3HF6625P
- EAN / GTIN
- 3606480212802
- Sales unit
- pcs
- Dimensions
- 600×600×250
- Range
- PanelSeT
- Product name
- PanelSeT S3HF
- Application
- Industrial application
- Category
- Compact enclosure
- Enclosure nominal height
- 600 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 250 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door with lock; 1 mounting plate
- body type
- Single piece body
- Number of doors
- Front face: 1 door(s)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Body: aluzinc
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 60529
- Product weight
- 21 kg
- Electromagnetic compatibility
- EMC immunity
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP55
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 27.000 cm
- Package 1 Width
- 61.000 cm
- Package 1 Length
- 61.000 cm
- Package 1 Weight
- 21.838 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 18
- Package 2 Height
- 199.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 406.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 600 mm
- Depth
- 250 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480212802
- SAP 1000488839
- Code 8928979
