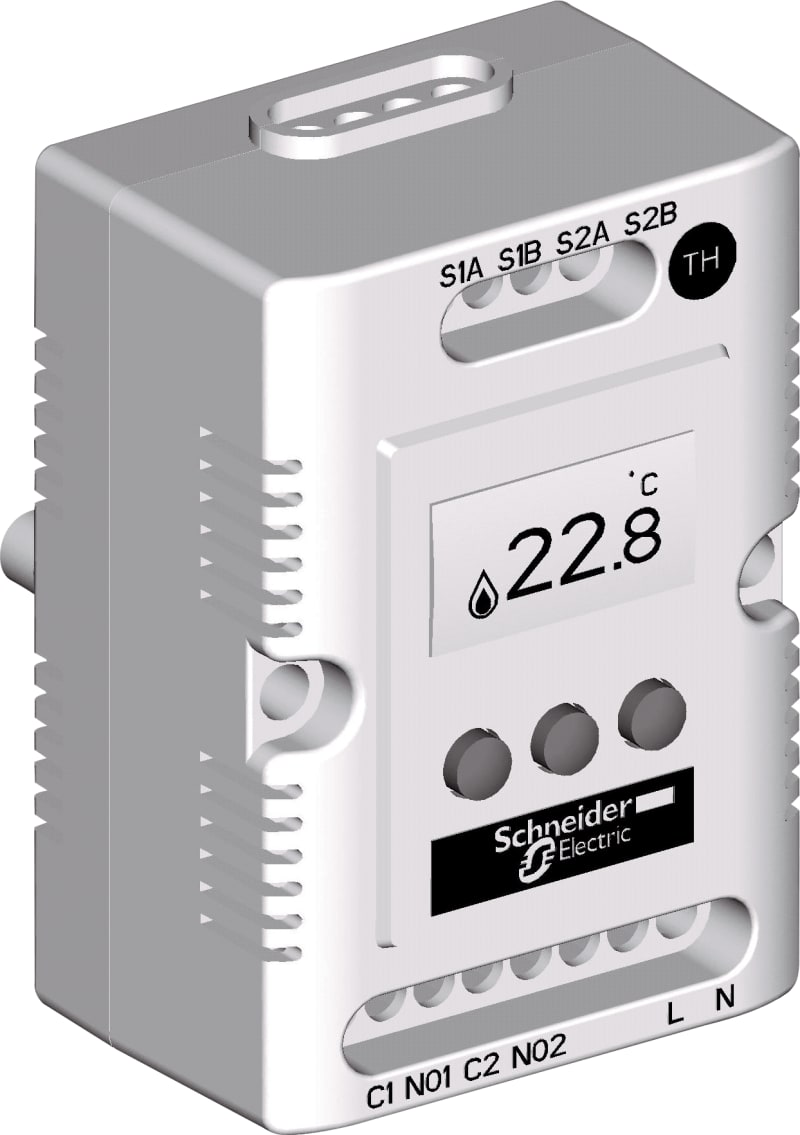

Schneider Electric Climasys CC - Electronic thermostat 9...30V - range of temperature -40…80°C NSYCCOTH30VID
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCCOTH30VID Thermostat 0-60°C 2NC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCCOTH30VID
- EAN / GTIN
- 3606480152603
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Contact configuration
- 2 NC
- Range
- ClimaSys
- Product name
- ClimaSys CC
- Product or component type
- Electronic thermostat
- Temperature setting range
- -40…80 °C
- Display type
- OLED screen
- Information displayed
- Temperature in °F; Temperature in °C
- Input voltage
- 9...30 V AC/DC
- Sensor type
- Optional NTC external sensor
- Maximum switching capacity
- 4 A 30 V AC/DC
- Electrical connection
- 10 terminals, clamping capacity: 2.5 mm²
- mounting mode
- By screws; Clipped
- Height
- External: 85 mm
- Width
- External: 56 mm
- Depth
- External : 44 mm
- Mounting location
- On mounting plate; Cross rails; 35 mm DIN rail; Spacial upright
- Ambient air temperature for operation
- -40…80 °C
- Hysteresis
- 2 K programmed value
- Number of outputs
- 2 ventilation/heating function
- Material
- PC
- Colour
- Light grey
- Flame retardance
- Self-extinguishing conforming to UL94 (material V0)
- Product certifications
- UR
- Country of origin
- CN
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480152603
- SAP 1000088975
- Code 8881416
Product Documentation
More from Schneider Electric
Schneider Electric

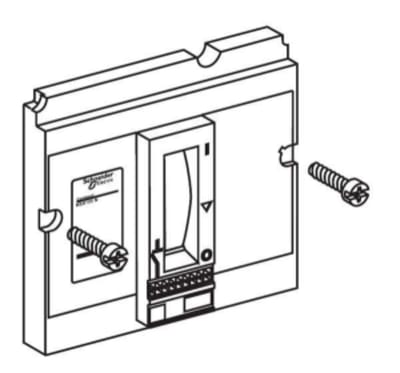

Schneider Electric NS retrofit escutcheon, ComPact NSX400/630, small cut-out LV432571
Schneider Electric

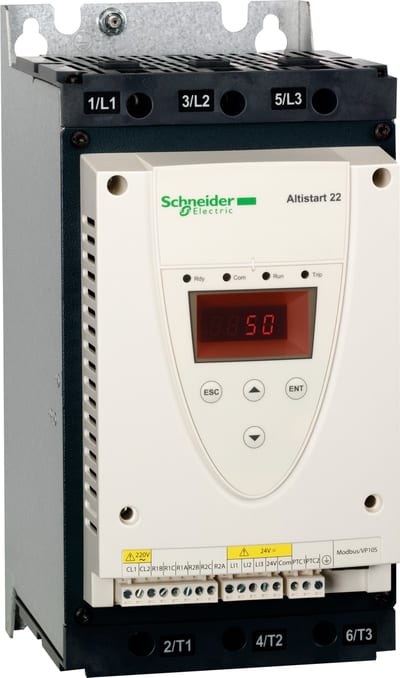

Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(15kW)/400...440V(30kW)/500V(37kW) ATS22D62S6
Schneider Electric

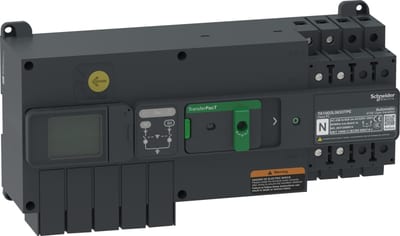

Schneider Electric transfer switch, TransferPacT Active automatic, 80A, 230V, 2P, LCD,frame 100A TA10D2L0803TPE
Schneider Electric

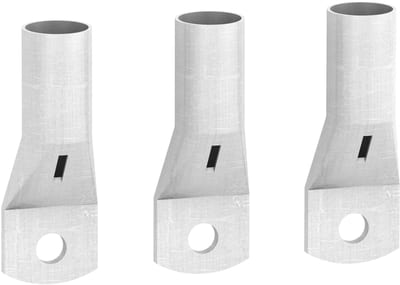

Cable LUG FOR CU 300 mm² 3 pcs
LV432502
Schneider Electric

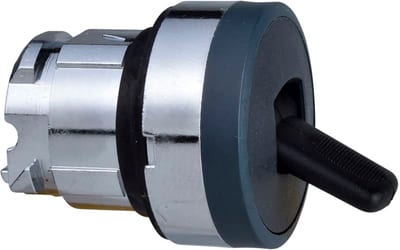

Schneider Electric ZB4BD48 Harmony XB4 Toggle Switch Head, Spring Return, 2 Positions
Schneider Electric

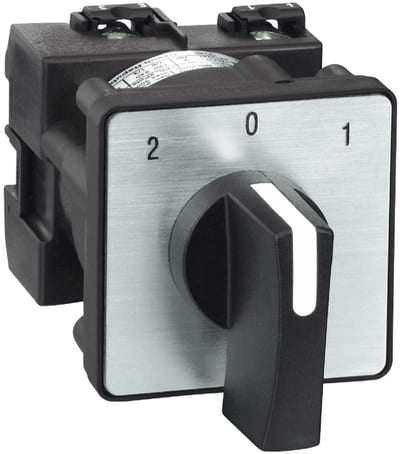

Schneider Electric Harmony K1, K2, Cam changeover switch, 1 pole, with off position, 45° switching angle, 12 A, multi-fixing K1B001ULH
Schneider Electric

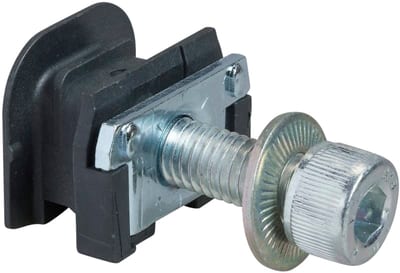

Schneider Electric snap-in nuts, ComPact NSX100, M6, set of 12 parts LV429234
Schneider Electric

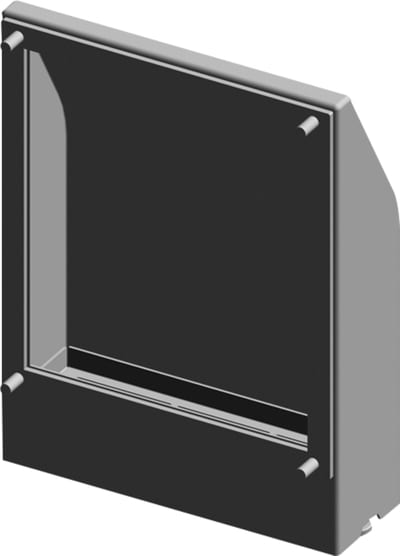

Schneider Electric EMC cover cut-out 291X291 with filter IP55 NSYCAP291LE
