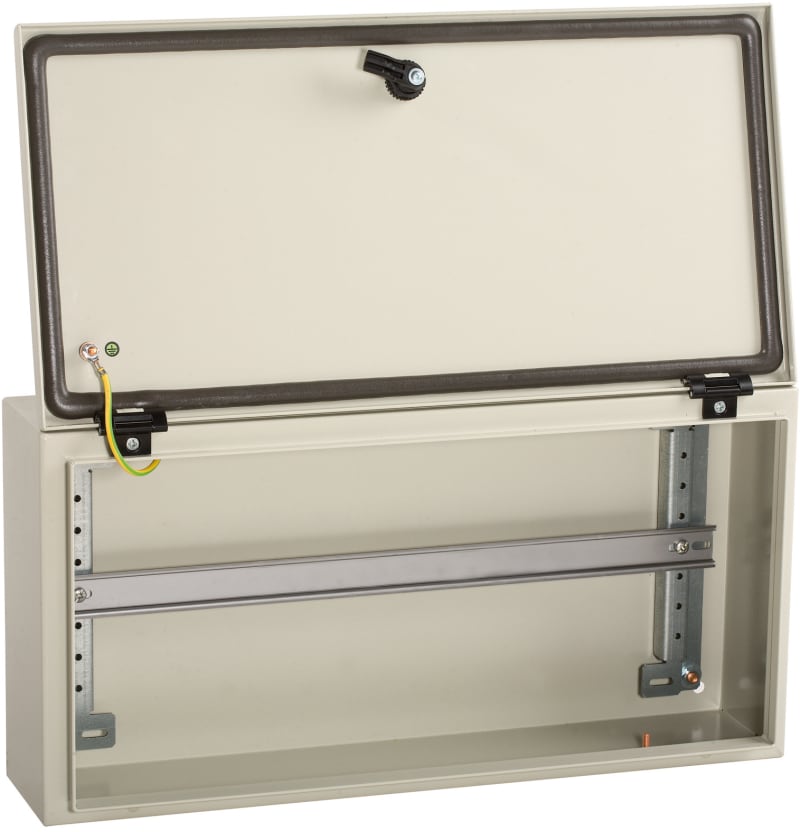

Schneider Electric PanelSet S3DB . H250XW500XD150. IP66, IK10, RAL7035. No NSYS3DB25515
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3DB25515 CABINET For TERMINAL BLOCKS 2,5X5X1,5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3DB25515
- EAN / GTIN
- 3606480158803
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3DB
- Application
- Terminal application
- Category
- Compact enclosure
- Enclosure nominal height
- 250 mm
- Enclosure nominal width
- 500 mm
- Enclosure nominal depth
- 150 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Installation accessory type
- Wall-mounting; Horizontal or vertical position
- Product destination
- For equipping with terminal
- Device composition
- 1 body; 1 door; 1 lock
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (180 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- cUL; BV; GL; DNV; UL
- Product weight
- 5.218 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.500 cm
- Package 1 Width
- 26.500 cm
- Package 1 Length
- 51.000 cm
- Package 1 Weight
- 5.218 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 70
- Package 2 Height
- 205.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 378.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 500 mm
- Height
- 250 mm
- Depth
- 150 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480158803
- SAP 1000488818
- Code 8602056
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Pilot light, Harmony XB4,metal, green flush mounted, 30mm, universal LED, plain lens, 230...240V AC XB4FVM3
Schneider Electric
Plate WITH Rubber Gasket
KZ83
Schneider Electric
Schneider Electric Spare parts / accessories BR24BPG
Schneider Electric
Internal door 7035 1250X750 PLA
NSYPAPLA127G
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS800H, 70KA at 415VAC, 800A, 3P, fixed, manually operated, without control unit C080H3FM
Schneider Electric

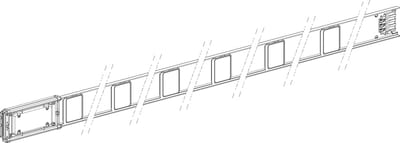

RAIL 40A 3M 6 Outlet
KNA40ED4306
Schneider Electric

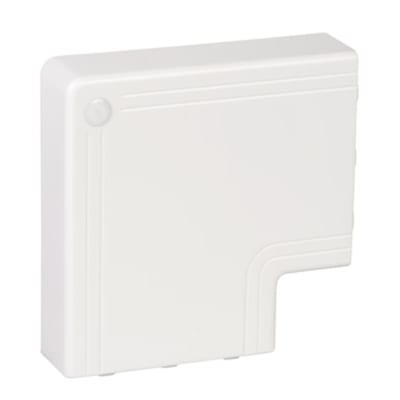

L-Piece Tir+ LS120/60 White
5427185
Schneider Electric

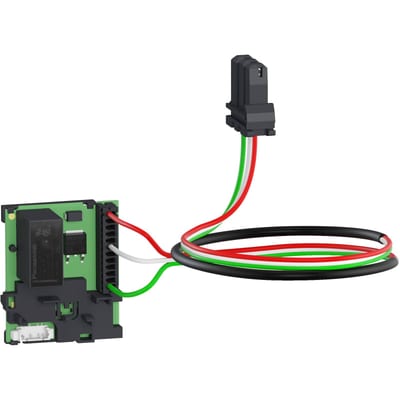

ESM module ERMS - for MTZ2/3 -Withdrawable
