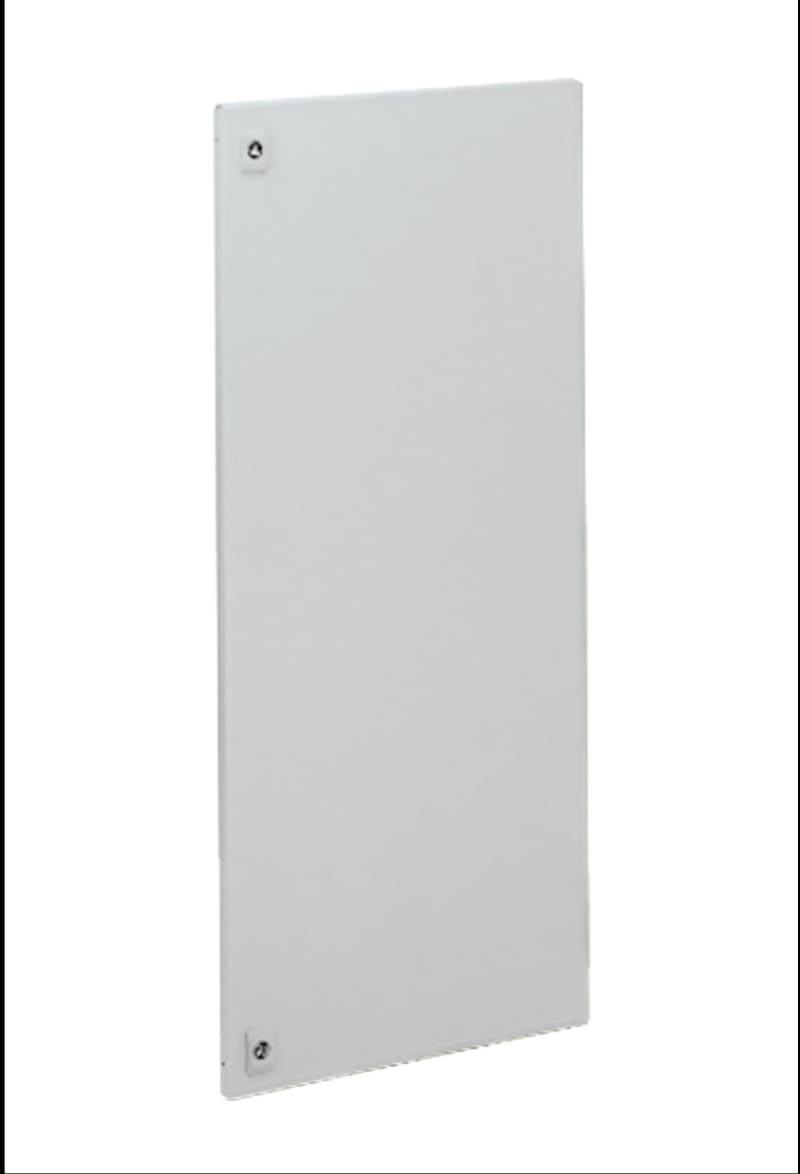

Internal door 7035 1250X750 PLA
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPAPLA127G Internal door 7035 for 1250x750 PLA.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPAPLA127G
- EAN / GTIN
- 3606480774263
- Sales unit
- pcs
- Dimensions
- 1250×750 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- -
- Mounting location
- Front side
- Range compatibility
- PanelSeT PLM
- Device composition
- 1 door; fixing elements; M8 brass inserts
- Material
- Aluminium
- Colour
- Grey (RAL 7035)
- Lock type
- Lock 5 mm double bar
- Number of locks
- 2
- Door type
- Internal plain
- Door opening side
- Left (110 °)
- Height
- 1148 mm
- Width
- 648 mm
- Depth
- Available depth between enclosure door : 30 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Compartment door
- EMC-version
- No
- Degree of protection (IP)
- IP44
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480774263
- SAP 1000752396
- Code 8486347
