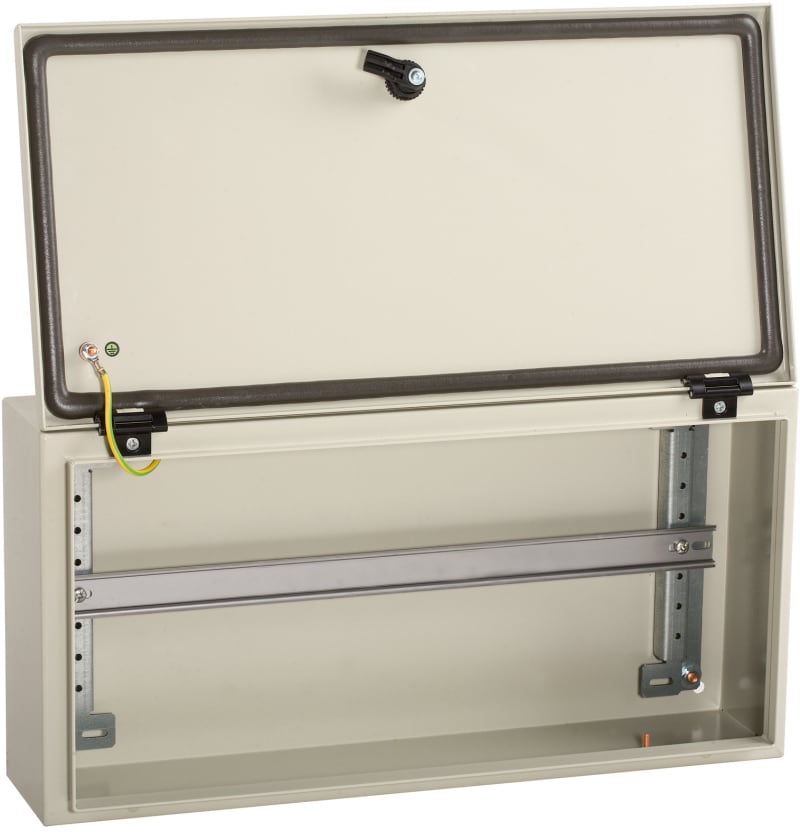

Schneider Electric PanelSet S3DB . H250XW300XD150. IP66, IK10, RAL7035. No NSYS3DB25315
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3DB25315 CABINET For TERMINAL BLOCKS 2,5X3X1,5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3DB25315
- EAN / GTIN
- 3606480158827
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3DB
- Application
- Terminal application
- Category
- Compact enclosure
- Enclosure nominal height
- 250 mm
- Enclosure nominal width
- 300 mm
- Enclosure nominal depth
- 150 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Installation accessory type
- Wall-mounting; Horizontal or vertical position
- Product destination
- For equipping with terminal
- Device composition
- 1 body; 1 door; 1 lock
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (180 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- GL; BV; UL; cUL; DNV
- Product weight
- 3.374 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.500 cm
- Package 1 Width
- 26.500 cm
- Package 1 Length
- 31.500 cm
- Package 1 Weight
- 3.374 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 50
- Package 2 Height
- 120.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 184.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 300 mm
- Height
- 250 mm
- Depth
- 150 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480158827
- SAP 1000488817
- Code 8928918
Product Documentation
