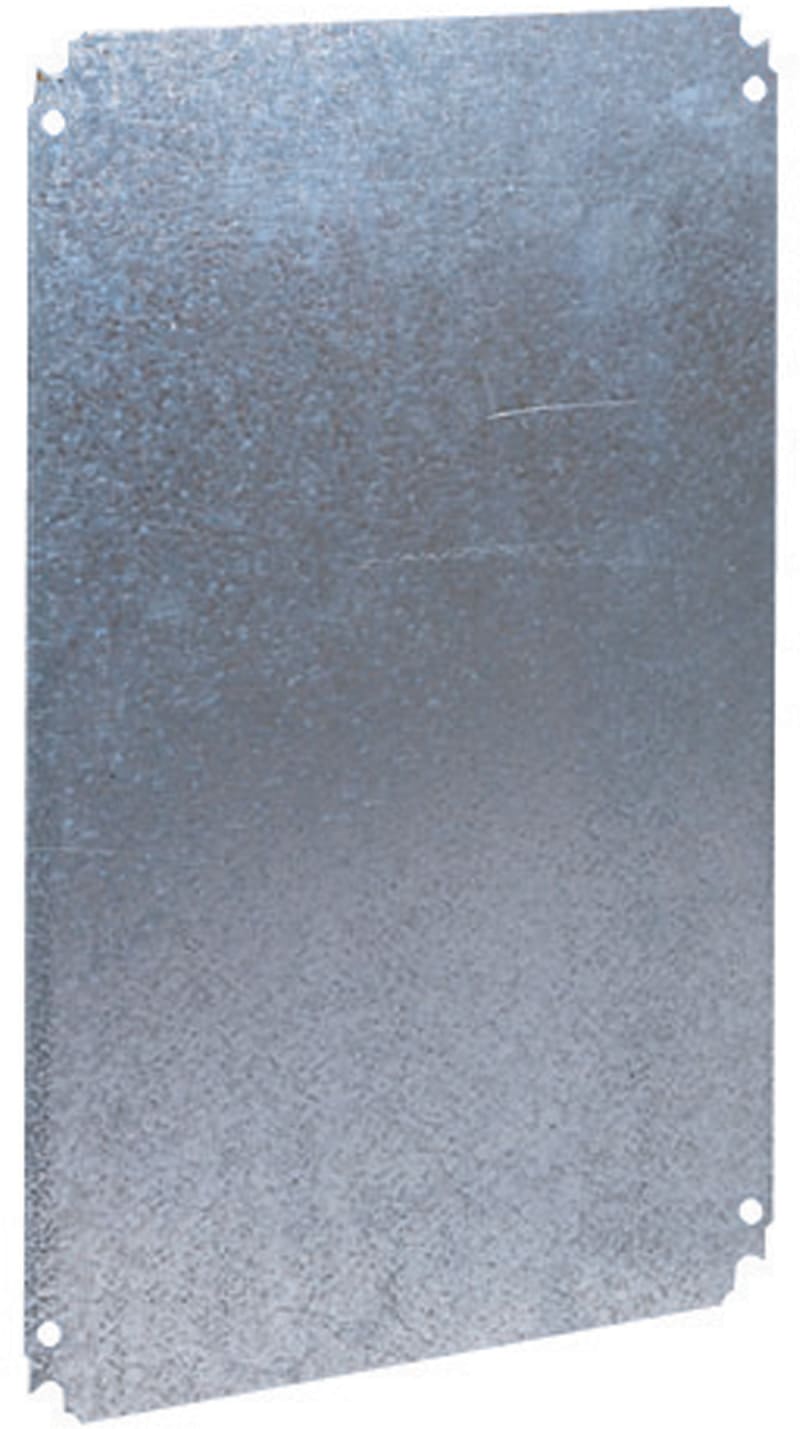

Mounting plate 1000X1000 (NSYMM1010)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMM1010 Mounting plate 1000x1000.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMM1010
- EAN / GTIN
- 3606480183140
- Sales unit
- pcs
- Dimensions
- 1000×1000 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 1000 mm W: 1000 mm
- Mounting location
- Step slide; Direct fixing on backstuds
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM PLM
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- Screwed on backstuds - screw type M8; By fixing element
- Permanent permissible load
- 180 kg
- Height
- 950 mm
- Width
- 950 mm
- thickness
- 1.8 mm
- Product weight
- 18.1 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 96.000 cm
- Package 1 Length
- 97.000 cm
- Package 1 Weight
- 19.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 12
- Package 2 Height
- 62.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 246.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480183140
- SAP 1000317800
- Code 8789217
