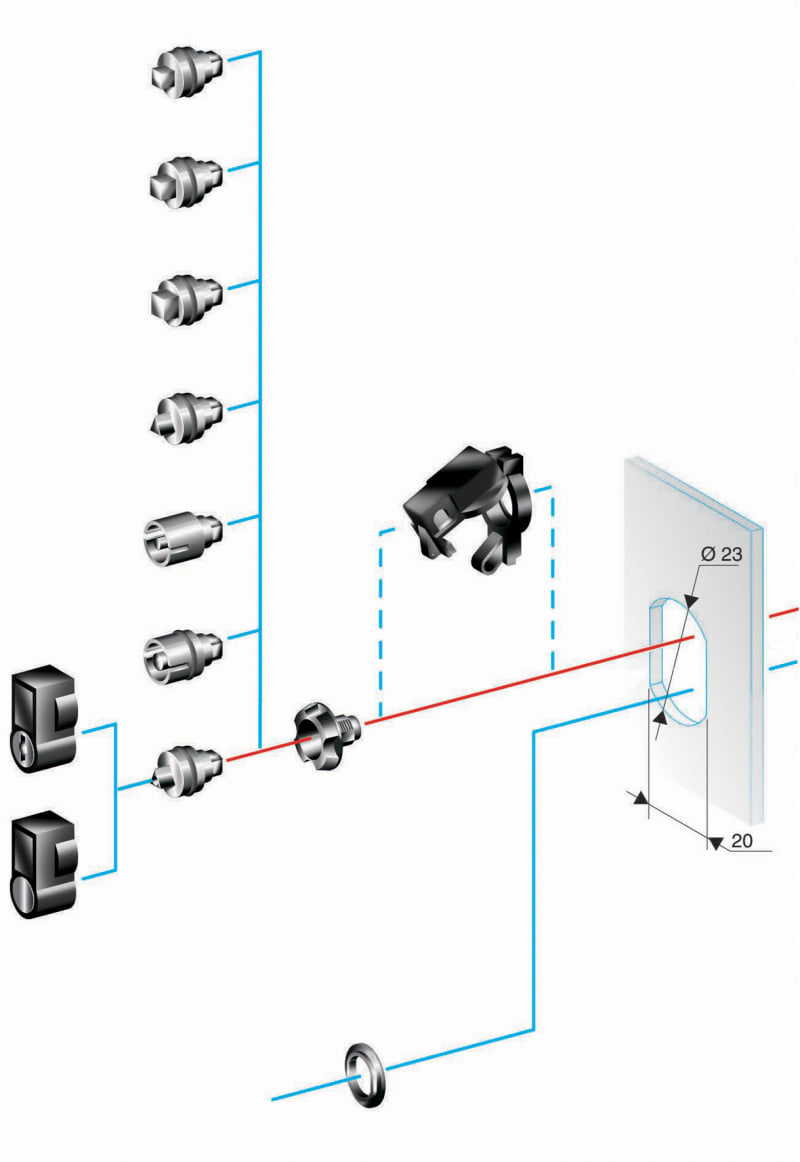

Schneider Electric NSYTHL1242EPLM External Locking Handle with 1242E Barrel and Key

Schneider Electric NSYTHL1242EPLM is an external rotary locking handle for PanelSeT PLM enclosures with door heights up to 847 mm, fitted with a cylindrical 1242 E key lock and supplied with two keys. The handle mounts directly on the door and supports padlocking for lock-out procedures. Used as a keyed access control on low-voltage floor-standing enclosures.

Manufacturer part number (MPN)

NSYTHL1242EPLM

EAN / GTIN

3606480192784

Sales unit

pcs

Package quantity

300 pcs

Range

PanelSeT

Accessory / separate part category

Locking accessory

Product or component type

Handle

Application

Multi-purpose

Mounting support

Direct mounting on door

Product compatibility

PLM with Height ≤ 847mm

Range compatibility

PanelSeT PLM PLM

Device composition

1 cylindrical barrel; 2 key; 1 handle with key lock

Quantity per set

Set of 1

Lock type

Key lock

Type of keylock

Cylindrical

Key number

1242 E

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

15.000 cm

Package 1 Width

5.000 cm

Package 1 Length

3.000 cm

Package 1 Weight

61.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

300

Package 2 Height

38.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

18.300 kg

Unit Type of Package 3

PAM

Number of Units in Package 3

6000

Package 3 Height

150.000 cm

Package 3 Width

100.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

385.920 kg

Country of origin

CN

Warranty (in months)

18

Padlock locking

Yes

Toggle

No

Type of handle

Rotary handle

Type of closure

Cylinder

Espagnolette locking (3-point locking)

No

HS Code

8301.40

• EAN 3606480192784
• SAP 1000151133
• Code 8657606
