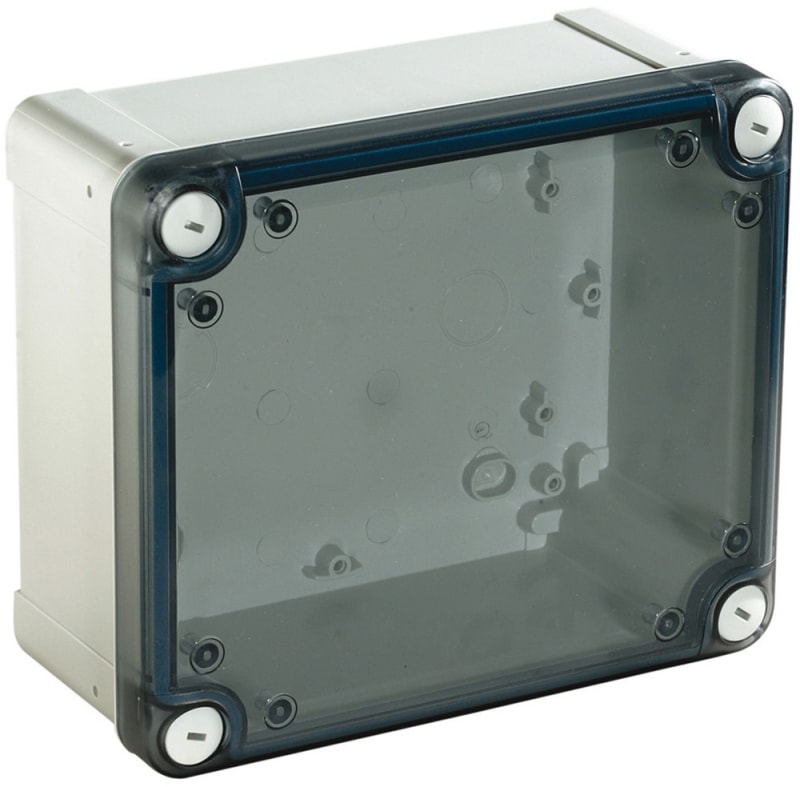

Schneider Electric PC box IP66 IK08 RAL7035 INT.H175W150D80 EXT.H193W164D87 Transparent cover H20 NSYTBP19168T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBP19168T 85130 Pc Box 193X164X87 K.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBP19168T
- EAN / GTIN
- 3606480165825
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Dimensions
- 193×164×87
- Range
- PanelSeT
- Product name
- PanelSeT TBP
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 192 mm
- Width
- 164 mm
- Depth
- 87 mm
- Internal height
- 175 mm
- Internal width
- 150 mm
- Internal depth
- 80 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- Low transparent cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Polycarbonate
- Colour
- Grey (RAL 7035); Transparent
- Standards
- IEC 62208; UL 508 A
- Product certifications
- TÜV; UL
- Electrical insulation class
- Class II
- Mounting location
- Outdoor (with canopy or shelter and anticondensation valve)
- Product weight
- 0.46 kg
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK08 conforming to IEC 62262
- Fire resistance
- 960 °C
- Ambient air temperature for storage
- -15…60 °C
- Operating temperature
- -25…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Number of Units in Package 3
- 240
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480165825
- SAP 1000090202
- Code 8582745
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Double universal fixing bracket, Canalis KBA, 25/40A, suspended on threaded rod or lateral, galvanized version KBA40ZFU2W
Schneider Electric
Schneider Electric Push button flush mounted, Harmony XB5, plastic, black, 30mm, spring return, marked DOWN ARROW, 1NO XB5FA3351
Schneider Electric
Schneider Electric Complete selector switch, Harmony XB4, Explosive atmosphere, 455 Key swith 2 positions spring return XB4BG61GEX
Schneider Electric

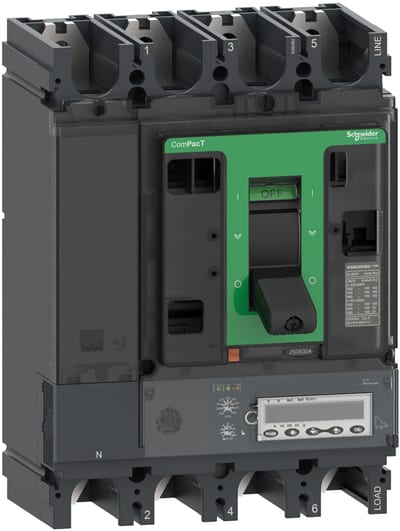

Schneider Electric Circuit breaker, ComPacT NSX400HB2, 100KA/690VAC, 4 poles, MicroLogic 6.3E trip unit 400A C40W46E400
Schneider Electric

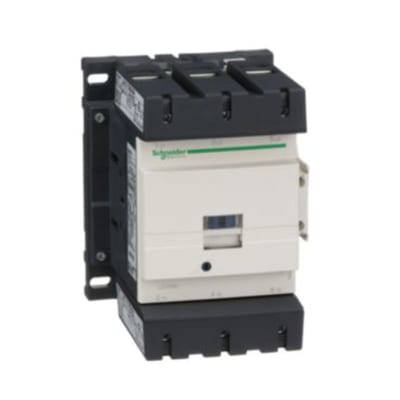

Schneider Electric TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 110 V AC 50/60 Hz coil LC1D150F7
Schneider Electric

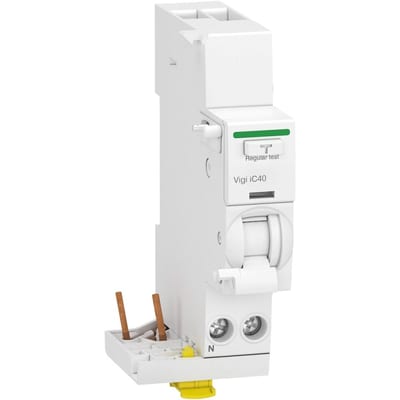

Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 1P+N, 40A, A type, instantaneous, 30MA, 230VAC A9Y80640
Schneider Electric

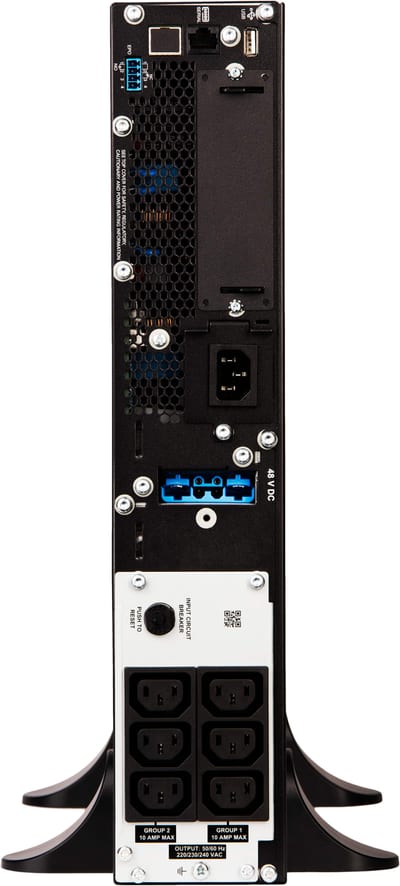

Schneider Electric APC Smart-UPS On-Line, 1000VA/1000W, Tower, 230V, 6X C13 IEC outlets, SmartSlot, Extended runtime, W/O rail kit SRT1000XLI
