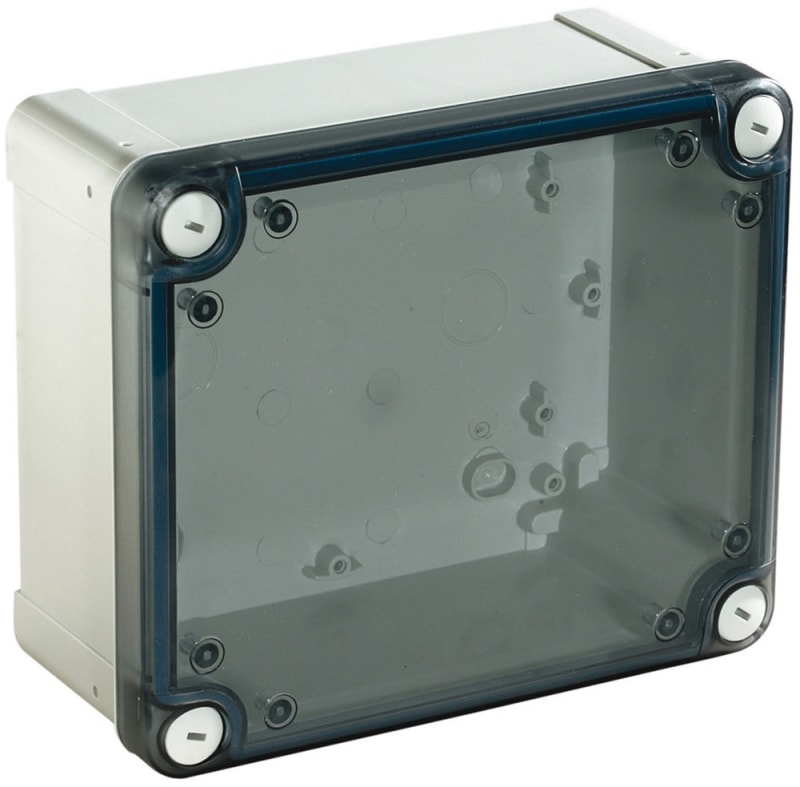

Schneider Electric PC box IP66 IK08 RAL7035 INT.H175W105D80 EXT.H192W121D87 Transparent cover H20 NSYTBP19128T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBP19128T 85128 Pc Box 192X121X87 K.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBP19128T
- EAN / GTIN
- 3606480165801
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Dimensions
- 192×121×87
- Range
- PanelSeT
- Product name
- PanelSeT TBP
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 192 mm
- Width
- 121 mm
- Depth
- 87 mm
- Internal height
- 175 mm
- Internal width
- 105 mm
- Internal depth
- 80 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Quantity per set
- Set of 2
- Body type
- One piece moulded
- Type of front cover
- Low transparent cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Polycarbonate
- Colour
- Grey (RAL 7035); Transparent
- Standards
- IEC 62208; UL 508 A
- Product certifications
- TÜV; UL
- Electrical insulation class
- Class II
- Mounting location
- Outdoor (with canopy or shelter and anticondensation valve)
- Product weight
- 0.38 kg
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK08 conforming to IEC 62262
- Fire resistance
- 960 °C
- Ambient air temperature for storage
- -15…60 °C
- Operating temperature
- -25…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Number of Units in Package 3
- 28
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480165801
- SAP 1000090198
- Code 8893339
Product Documentation
More from Schneider Electric
Schneider Electric
Cover - 1 module - Aluminium
NU986530
Schneider Electric
2 hulls gland plate 1600X600 SF
NSYEC1662
Schneider Electric
Front plate Man.omkopler NSX250 PrismaSeG/P
LVS03245
Schneider Electric
Schneider Electric variable speed drive ATV12 - 0.18kW - 0.25hp - 200..240V - 3PH ATV12H018M3
Schneider Electric

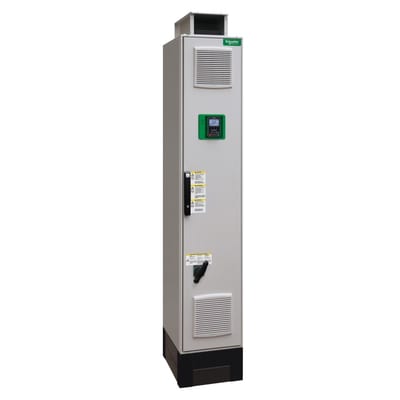

Schneider Electric variable speed drive ATV650 - 110kW - 380...440V - IP54 - disconnect switch ATV650C11N4F
Schneider Electric

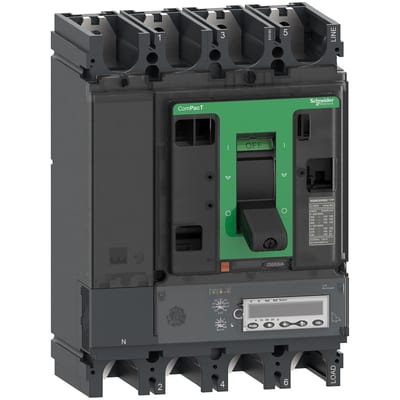

Schneider Electric Circuit breaker, ComPacT NSX400HB1, 75KA/690VAC, 4 poles, MicroLogic 6.3E trip unit 400A C40V46E400
Schneider Electric

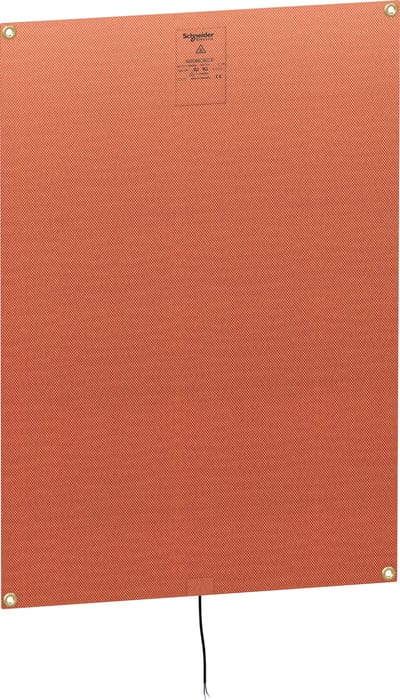

Schneider Electric Climasys Ultra thin resistance heater low starting current 195W 240V 400X650MM NSYCRS200W240V
Schneider Electric

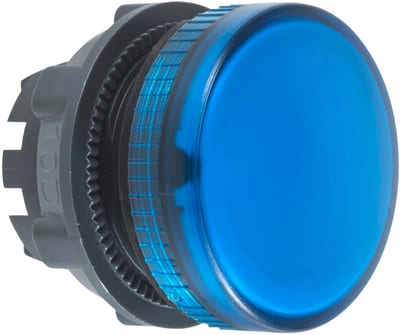

Pilot Light Head BLUE FOR BA9S (ZB5AV06)
