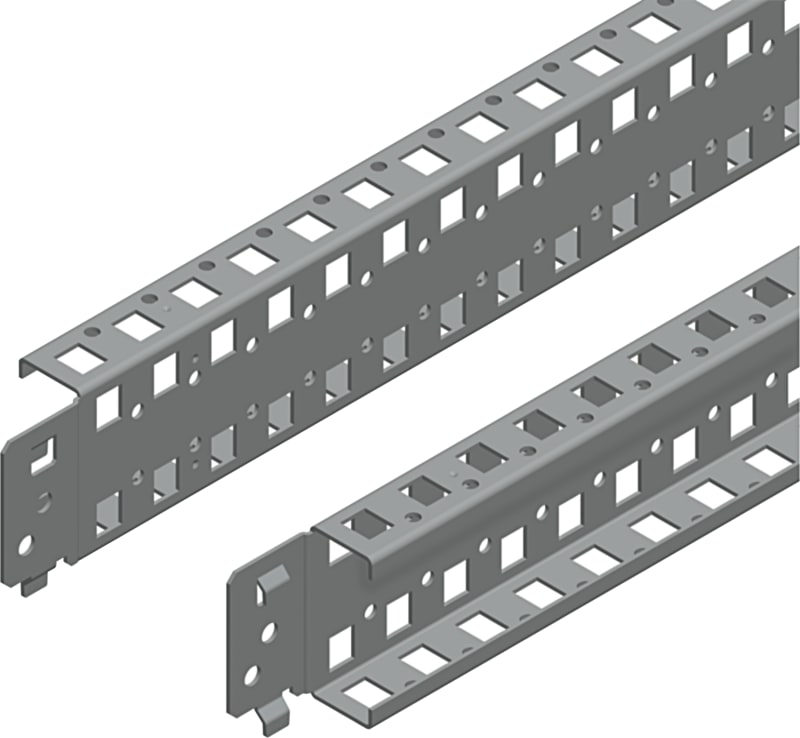

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W500MM, 2 rows, set of 2 NSYSQCR6550
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSQCR6550 Cross-arm 500/2.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSQCR6550
- EAN / GTIN
- 3606485132716
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Quick cross rails
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Mounting location
- Between cross rails; On structure of enclosure
- Mounting support
- Adaptation profile, on SM enclosures
- Device composition
- fixing elements; 2 cross rails
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws; Clipped - on structure location
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 2
- Maximum load
- 90 kg
- Height
- Nominal: 500 mm; Useful: 410 mm
- Width
- 65 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 288
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building width
- 500 mm
- Suitable for enclosure building depth
- 500 mm
- Max. load capacity
- 90 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485132716
- SAP 1000090120
- Code 8924819
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSet WM enclosure canopy W800XD400 Colour RAL7035. Fixings supplied. NSYTJ8040
Schneider Electric
Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W1200MM, 2 rows, set of 2 NSYSQCR65120
Schneider Electric
Schneider Electric switch disconnector Masterpact MTZ2 10 HF, 1000 A, 4 poles, drawout LV848257
Schneider Electric
Schneider Electric Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 24V AC LUCA1XB
Schneider Electric
Schneider Electric Marker, Linergy TR cable ends, yellow, clipin type, character 0, Numeric, set of 200 AR1MA010
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V 12A, 110V DC low consumption coil, snap-in terminals LC1D12AFL
Schneider Electric
Schneider Electric flush mounted blue projecting pushbutton head ZB5FL6
Schneider Electric
Schneider Electric A9F93125 ACTI9 IC60L Miniature Circuit Breaker 1P 25 A, Curve B
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSQCR6550?
- NSYSQCR6550 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSQCR6550.
- What is the HS code for NSYSQCR6550?
- The customs tariff (HS) code for NSYSQCR6550 is 7326.90.
- Who manufactures NSYSQCR6550?
- NSYSQCR6550 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSQCR6550?
- Yes — the NSYSQCR6550 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSQCR6550?
- The minimum order quantity is 1.
- Is NSYSQCR6550 available?
- Yes — NSYSQCR6550 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
