Floor-Standing Cabinet 18X12X5 U.PL.
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSM1812502D Floor-standing cabinet 18X12X5 U.Pl.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSM1812502D
- EAN / GTIN
- 3606485120737
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PanelSeT
- Product name
- PanelSeT SM
- Product or component type
- Compact enclosure
- Application
- Multi-purpose
- Installation accessory type
- Floor-standing
- Device composition
- 1 body; 2 door; 2 cable gland plate; 1 locking system with handle: door; 1 blocking system: left door; 4 mounting plate bracket
- Removable parts
- Door by screws hinge; Mounting plate bracket by screws
- Enclosure nominal height
- 1800 mm
- Enclosure nominal width
- 1200 mm
- Enclosure nominal depth
- 500 mm
- Number of doors
- Front: 2 door(s)
- Door opening side
- Left (120 °); Right (120 °)
- Door type
- Plain
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Body type
- Single piece body with welded rear panel; Front part forming a rigid frame with welded corners
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- cable entry
- 1 entry
- Material
- Body: sheet steel; Door: sheet steel; Hinge: zamak
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Accessibility for operation
- Front
- Product weight
- 120 kg
- Standards
- IEC 62208
- Product certifications
- UL; BV; DNV
- IK degree of protection
- IK10 conforming to IEC 62262; conforming to UL; conforming to cUL
- IP degree of protection
- IP55 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1200 mm
- Height
- 1800 mm
- Depth
- 500 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 4900 N
- Max. permitted load of the door(s) according to IEC 62208
- 588 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606485120737
- SAP 1000090019
- Code 8915821
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 400A, advanced version, 48…130V wide band AC/DC coil LC1G400EHEA
Schneider Electric
Floor-Standing Cabinet 20X16X6 M.PL.
NSYSM2016602DP
Schneider Electric

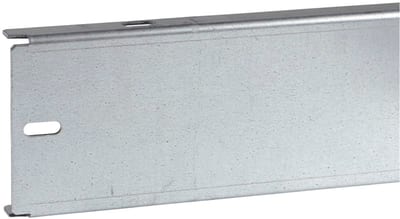

Intermediate Mounting Plate (NSYSIMP22)
Schneider Electric

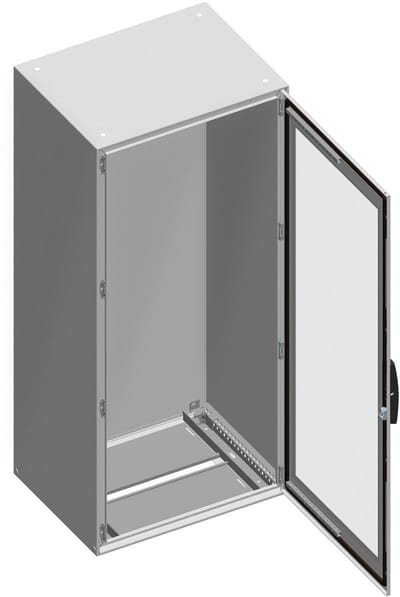

Schneider Electric PanelSeT SM compact enclosure with glazed door - 1800X800X400 mm NSYSM18840T
Schneider Electric
Intermediate Mounting Plate (NSYSIMP12)
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 480V AC standard coil, snap-in terminals CAD32AT7
Schneider Electric

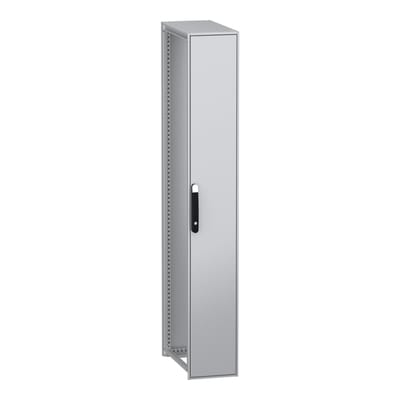

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X300X600MM, IP55 NSYSFN20360
