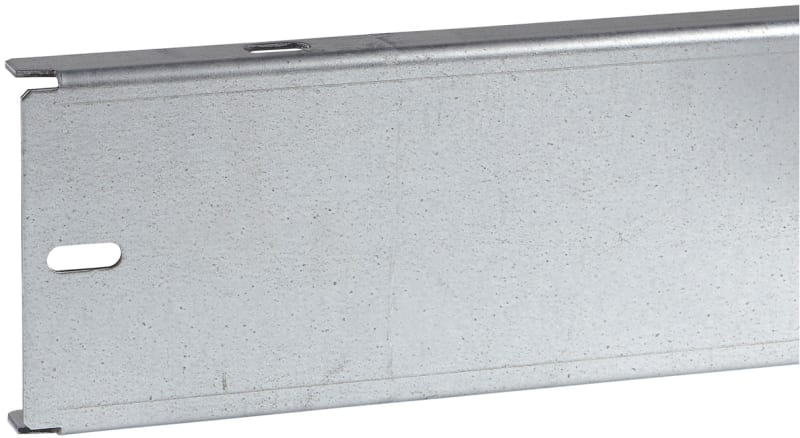

Intermediate Mounting Plate (NSYSIMP22)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSIMP22 Intermediate mounting plate.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSIMP22
- EAN / GTIN
- 3606485132020
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting plate description
- Intermediate plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SFX
- Device composition
- 1 intermediate mounting plate; fixing elements
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing element
- Height
- Nominal: 2200 mm; Real: 2096 mm
- Width
- Real: 98 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 211.000 cm
- Package 1 Weight
- 4.600 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 50
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 252.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485132020
- SAP 1000090340
- Code 8846657
