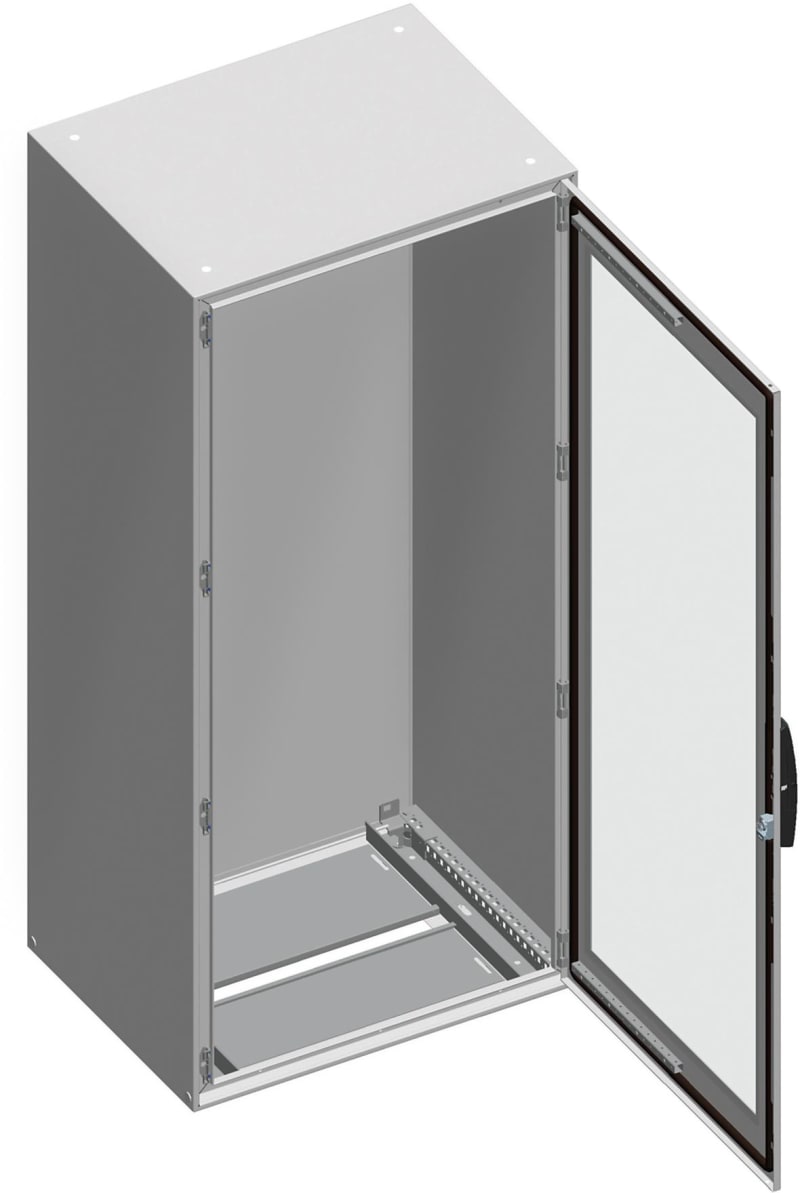

Schneider Electric PanelSeT SM compact enclosure with glazed door - 1400X800X400 mm NSYSM14840T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSM14840T Floor-standing cabinet 14X8X4 Gl.Door.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSM14840T
- EAN / GTIN
- 3606485120911
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Range
- PanelSeT
- Product name
- PanelSeT SM
- Product or component type
- Compact enclosure
- Application
- Multi-purpose
- Installation accessory type
- Floor-standing
- Device composition
- 1 body; 1 cable gland plate; 1 locking system with handle: door; 4 mounting plate bracket; 1 door
- Removable parts
- Door by screws hinge; Mounting plate bracket by screws
- Enclosure nominal height
- 1400 mm
- Enclosure nominal width
- 800 mm
- Enclosure nominal depth
- 400 mm
- Number of doors
- Front: 1 door(s)
- Door opening side
- Reversible (120 °)
- Door type
- Glazed
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Body type
- Single piece body with welded rear panel; Front part forming a rigid frame with welded corners
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- cable entry
- 1 entry
- Material
- Door: Securit glass; Body: sheet steel; Door: sheet steel; Hinge: zamak
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Accessibility for operation
- Front
- Product weight
- 63 kg
- Standards
- IEC 62208
- Product certifications
- UL; DNV; BV
- IK degree of protection
- IK08 conforming to IEC 62262; conforming to UL; conforming to cUL
- IP degree of protection
- IP55 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 800 mm
- Height
- 1400 mm
- Depth
- 400 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- Yes
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 4900 N
- Max. permitted load of the door(s) according to IEC 62208
- 588 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
