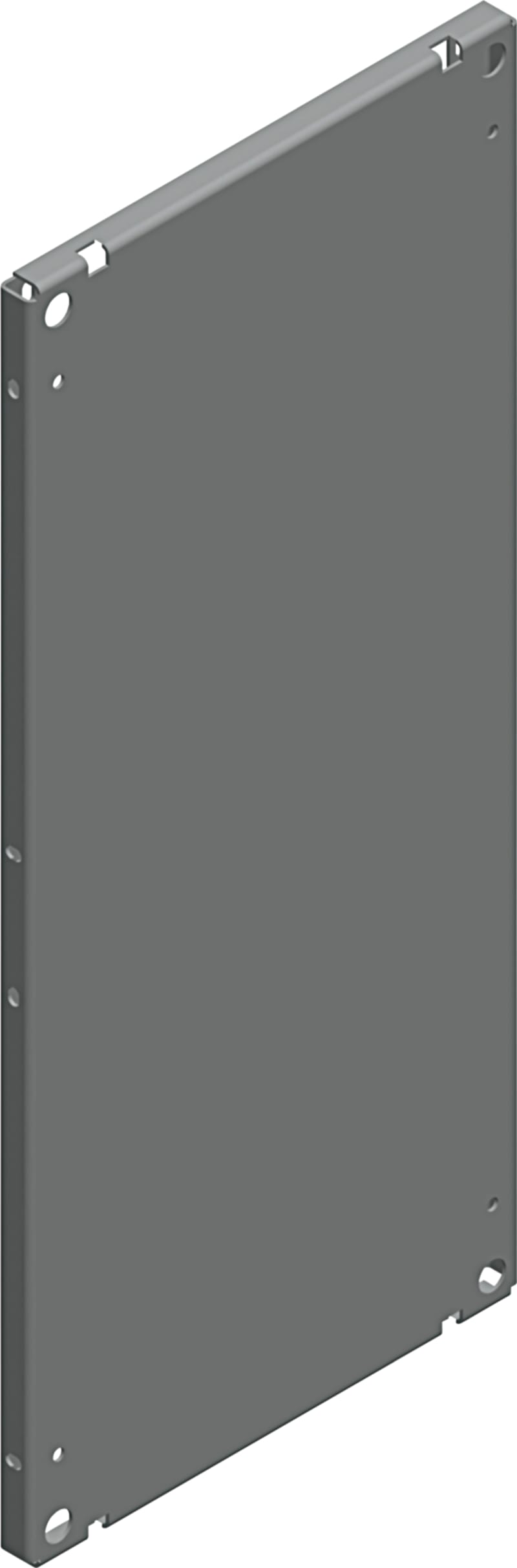

Mounting Plate 16X6 (NSYMP166)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMP166 Mounting plate 16X6.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMP166
- EAN / GTIN
- 3606485126807
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 1600 mm W: 600 mm
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX
- Device composition
- 1 mounting plate; 2 sliding shoes
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing brackets
- Maximum load
- 300 kg/m²
- Permanent permissible load
- 500 kg intermediate position; 600 kg back of the enclosure
- Height
- Fixing centers: 1450 mm; Nominal: 1600 mm; Real: 1497 mm
- Width
- Nominal: 600 mm; Fixing centers: 450 mm; Real: 496 mm
- Depth
- 27 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 50.000 cm
- Package 1 Length
- 150.000 cm
- Package 1 Weight
- 17.800 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 20
- Package 2 Height
- 48.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 393.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485126807
- SAP 1000089209
- Code 8882161
Product Documentation
