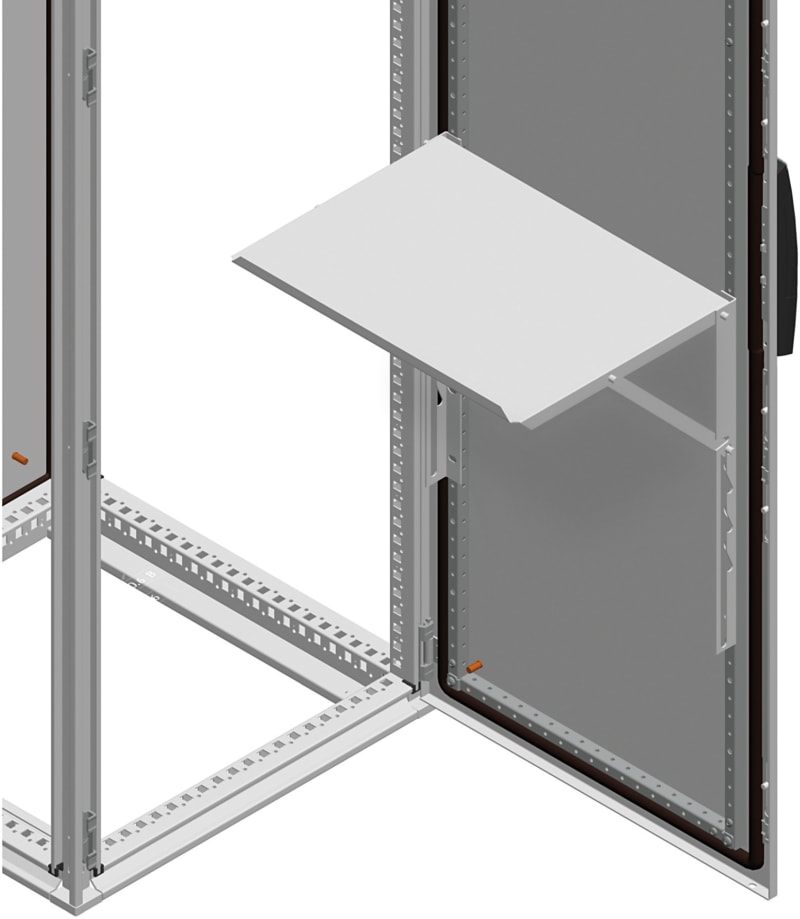

Schneider Electric NSYSDT8 Folding support tray - 800 mm enclosure - 30 kg load

Schneider Electric NSYSDT8 Folding support tray - 800 mm enclosure - 30 kg load is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Range: PanelSeT; Product or component type: Folding support tray; Application: Door accessories; Mounting location: Door cross rail; On door reinforcement frame; Mounting support: Direct mounting.

Manufacturer part number (MPN)

NSYSDT8

EAN / GTIN

3606485131511

Sales unit

pcs

Range

PanelSeT

Product or component type

Folding support tray

Application

Door accessories

Nominal dimensions of the housing

-

Mounting location

Door cross rail; On door reinforcement frame

Mounting support

Direct mounting

Range compatibility

PanelSeT SF SF, SM, SFX and SMX enclosures

Device composition

1 x fixing element; 1 x folding support tray

Quantity per set

Set of 1

Material

Door: steel

Colour

Door: grey (RAL 7035)

Surface finish

Painted

Fixing mode

Direct fixing - door location

Adjustment

Adjustable in height, steps of 25 mm for door

Operating angle

60 °; 45 °; 90 °; 75 °

Maximum load

30 kg

Width

Nominal: 325 mm

Depth

350 mm

thickness

1.5 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

37.000 cm

Package 1 Length

66.500 cm

Package 1 Weight

4.422 kg

Unit Type of Package 2

PAM

Number of Units in Package 2

80

Package 2 Height

90.000 cm

Package 2 Width

100.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

368.000 kg

Country of origin

ES

Warranty (in months)

18

• EAN 3606485131511
• SAP 1000089774
• Code 8883651
