Schneider Electric ABS box IP66 IK07 RAL7035 INT.H325W275D160 EXT.H341W291D168 Opaque cover H60 NSYTBS342916H
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBS342916H 85020 Abs Box 341X291X168 T.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBS342916H
- EAN / GTIN
- 3606480165412
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Dimensions
- 341×291×168
- Range
- PanelSeT
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 341 mm
- Width
- 291 mm
- Depth
- 168 mm
- Internal height
- 325 mm
- Internal width
- 275 mm
- Internal depth
- 160 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- High plain cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- ABS with 45% of post-industrial recycled content
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- TÜV
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK07 conforming to IEC 62262
- Glow wire resistance
- 650 °C conforming to IEC 60695-2-11
- Ambient air temperature for storage
- -15…40 °C
- Operating temperature
- -25…60 °C
- Product weight
- 1.66 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 3
- Number of Units in Package 3
- 36
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Material quality
- Acrylonitrile butadiene styrene (ABS)
- Impact strength
- IK07
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480165412
- SAP 1000090263
- Code 8582849
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric AK5PC33 PLUG BI 32A FIL LG 250mm
Schneider Electric
Selector switch with LIGHT 3ST.RET.FR.H White
ZB4BK1813
Schneider Electric
Spredere 3P (INS800-1600)
31305
Schneider Electric
TCS-C3 screw clip 14-18 6 pcs
IMT37459
Schneider Electric
Schneider Electric VZ18 TeSys VARIO - shaft extension - for V3 / V4 / V5 / V6
Schneider Electric

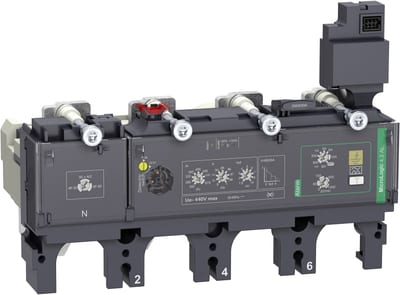

Schneider Electric Trip unit MicroLogic Vigi 4.3AL, ComPacT NSX400/630, 4 poles, electronic basic protections, earth leakage alarm, 400A C4044A400
Schneider Electric

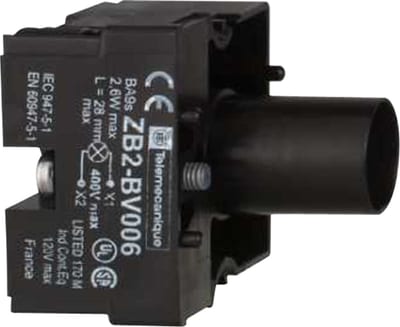

Schneider Electric ZB2BV006 MOUNTING BASE FOR XACA PILOT LITE
Schneider Electric

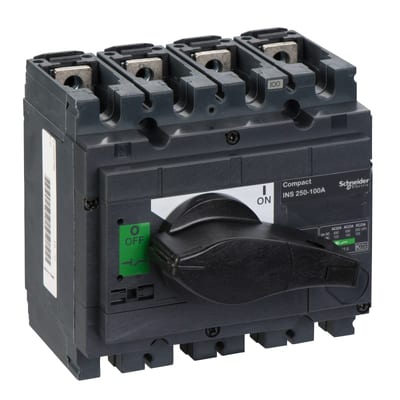

Interpact INS250 100A 4P
