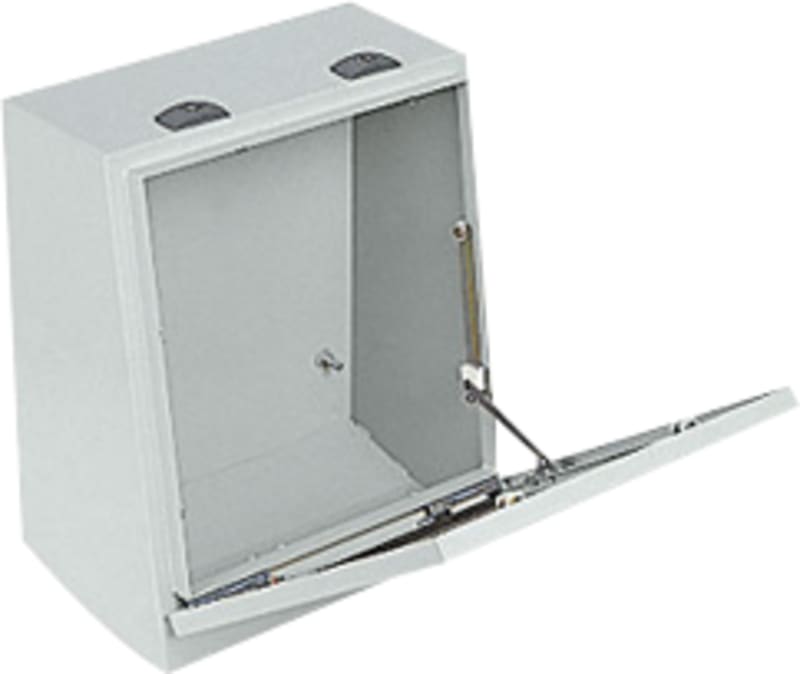

Control desk TOP (NSYSDC63)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDC63 Control desk Top.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDC63
- EAN / GTIN
- 3606480154515
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Interface accessory
- Product or component type
- Modular consoles
- Anwendung
- Multi-purpose
- Nennmaße des Gehäuses
- -
- Mounting location
- Top of control desk
- Mounting support
- Blanking covers, it depends on the modular console requirement
- Range compatibility
- PanelSeT PanelSeT SD
- Device composition
- 1 door; 1 body; 1 retainer; 1 rear panel; 4 step slides; 2 lock
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- 2 points lock, 3 mm double-bar
- Fixing mode
- By fixing element - control desk location
- Operating angle
- 75 °
- Height
- 484 mm
- Width
- 600 mm
- Depth
- Nominal : 300 mm; Real : 361 mm
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 38.000 cm
- Package 1 Width
- 61.500 cm
- Package 1 Length
- 61.500 cm
- Package 1 Weight
- 22.800 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 8
- Package 2 Height
- 170.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 195.160 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- RAL-number
- 7035
- Number of doors
- 1
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Component of the desk system
- Desk console
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480154515
- SAP 1000089750
- Code 8840459
