Mounting Plate Metal 150X300
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMM13SB Mounting plate metal 150x300.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMM13SB
- EAN / GTIN
- 3606480520525
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Dimensions
- 150×300 mm
- Range
- PanelSeT; PanelSeT; PanelSeT; PanelSeT; PanelSeT; PanelSeT; PanelSeT; PanelSeT; PanelSeT; PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Bottom of enclosure
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SBM SBM
- Device composition
- 1 mounting plate
- Material
- Galvanised steel
- Surface finish
- Metallic
- Fixing mode
- By 2 screws - screw type Ø5 mm self-tapping screws - bottom of enclosure location
- Permanent permissible load
- 2.25 kg back of the enclosure
- Height
- Nominal: 125 mm
- Width
- Nominal: 285 mm; Fixing centers: 264 mm
- Surface and useful surface
- Nominal: 45000 mm²
- thickness
- 1.5 mm
- Product weight
- 0.402 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- Yes
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480520525
- SAP 1000501746
- Code 8618059
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric source change-over accessories - 3 poles - 400..630 A LV432619
Schneider Electric

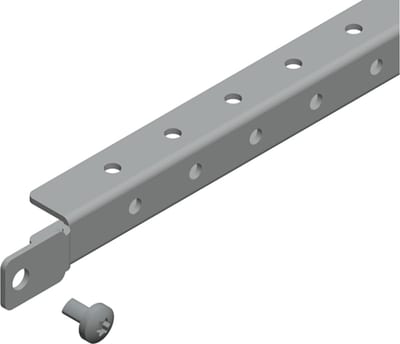

Schneider Electric Light cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W600MM, set of 2 NSYSLCR60
Schneider Electric
Gland Plate 12X8 (NSYEC128)
Schneider Electric

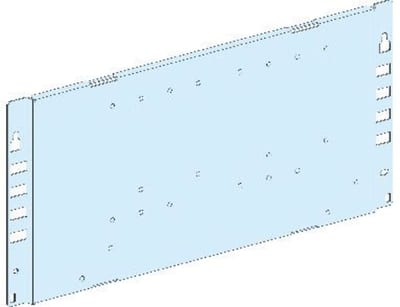

MONTPL.NSX250 PrismaG changeover switch fast
LVS03043
Schneider Electric

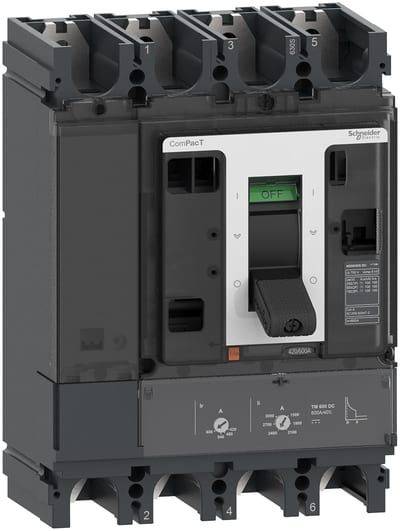

Schneider Electric Circuit breaker, ComPacT NSX630F DC, 36KA/750VDC, 4 poles, TM-DC trip unit 500A C63F4TM500D
Schneider Electric

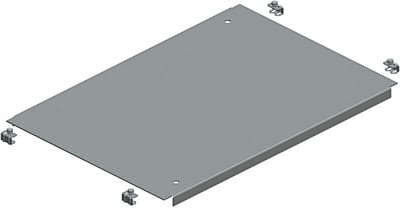

Gland Plate 16X5 (NSYEC165)
Schneider Electric

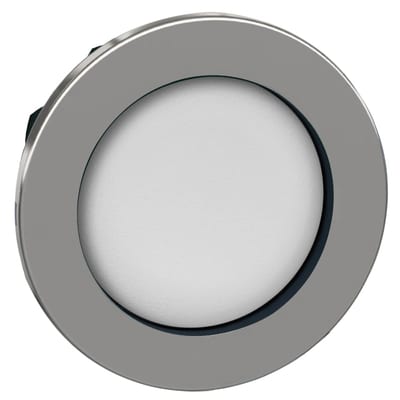

Push-button flush white nedsenket
ZB4FA16
Schneider Electric

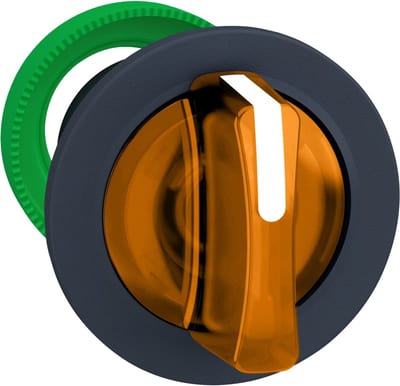

Selector switch flush for LED 3 pos org (ZB5FK1753)
