Schneider Electric

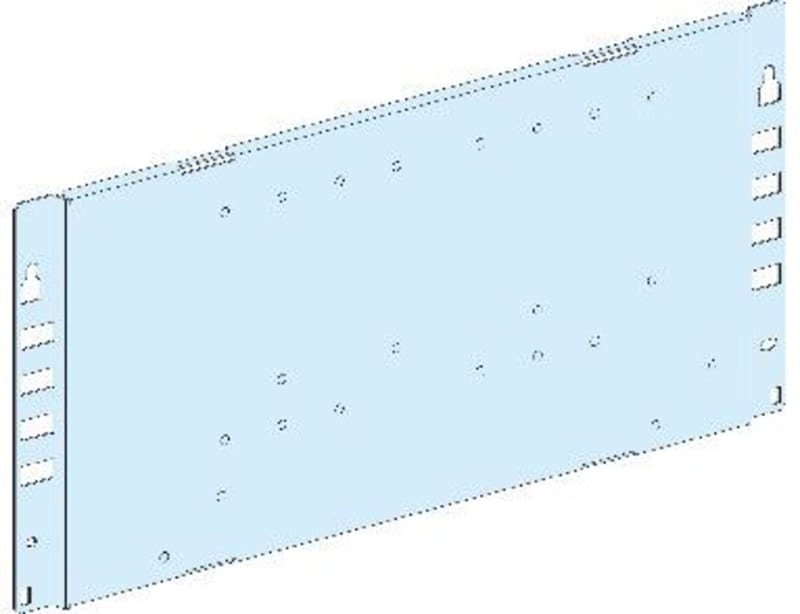

MONTPL.NSX250 PrismaG changeover switch fast
Part numberLVS03043EAN / GTIN3606481874634HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03043 Mounting plate -PrismaSeT G-changeover switch-for NSX100-250-fast.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03043
- EAN / GTIN
- 3606481874634
- Sales unit
- pcs
- Package quantity
- 14 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm
- Installed device
- ComPact: fixed INS250 source changeover - control: direct front rotary handle - vertical installation; ComPact: fixed INS250 source changeover - control: mechanical interlock - vertical installation; ComPact: fixed INV250 source changeover - control: mechanical interlock - vertical installation; Source changeover: fixed NSX100...250 source changeover - control: mechanical interlock - vertical installation
- Poles description
- 1 x 3P: fixed INS250 source changeover vertical installation; 1 x 4P: fixed INS250 source changeover vertical installation; 1 x 3P: fixed INV250 source changeover vertical installation; 1 x 4P: fixed INV250 source changeover vertical installation; 1 x 3P: fixed NSX100...250 source changeover vertical installation; 1 x 4P: fixed NSX100...250 source changeover vertical installation
- Condition of using cable tie
- Need additional plate (1M high) when installation of device is in vertical
- Number of vertical modules [50 mm]
- 10 module(s): INS250 source changeover, front connection in 600 mm Widefloor-standing enclosure (cable coming from top or bottom of enclosure); 10 module(s): INS250 source changeover, front connection in 600 mm Widewall-mounted enclosure (cable coming from top or bottom of enclosure); 10 module(s): INV250 source changeover, front connection in 600 mm Widefloor-standing enclosure (cable coming from top or bottom of enclosure); 10 module(s): INV250 source changeover, front connection in 600 mm Widewall-mounted enclosure (cable coming from top or bottom of enclosure); 11 module(s): NSX100...250 source changeover, front connection in 600 mm Widefloor-standing enclosure (cable coming from top or bottom of enclosure); 11 module(s): NSX100...250 source changeover, front connection in 600 mm Widewall-mounted enclosure (cable coming from top or bottom of enclosure)
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Cable entry
- Cut-out plates 0.37 mm top or bottom 192 mm
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 600 mm
- Height
- 200 mm
- Product weight
- 1.37 kg
- Functional unit
- 600 mm PrismaSeT G floor-standing enclosure ComPact INS250 source changeover fixed direct front rotary handle vertical 3P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS250 source changeover fixed direct front rotary handle vertical 3P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G floor-standing enclosure ComPact INS250 source changeover fixed direct front rotary handle vertical 4P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS250 source changeover fixed direct front rotary handle vertical 4P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G floor-standing enclosure ComPact INS250 source changeover fixed mechanical interlock vertical 3P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS250 source changeover fixed mechanical interlock vertical 3P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G floor-standing enclosure ComPact INS250 source changeover fixed mechanical interlock vertical 4P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS250 source changeover fixed mechanical interlock vertical 4P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G floor-standing enclosure ComPact INV250 source changeover fixed mechanical interlock vertical 3P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G wall-mounted enclosure ComPact INV250 source changeover fixed mechanical interlock vertical 3P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G floor-standing enclosure ComPact INV250 source changeover fixed mechanical interlock vertical 4P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G wall-mounted enclosure ComPact INV250 source changeover fixed mechanical interlock vertical 4P 1 front connection 10 0.37 mm; 600 mm PrismaSeT G floor-standing enclosure source changeover NSX100...250 source changeover fixed mechanical interlock vertical 3P 1 front connection 11 0.37 mm; 600 mm PrismaSeT G wall-mounted enclosure source changeover NSX100...250 source changeover fixed mechanical interlock vertical 3P 1 front connection 11 0.37 mm; 600 mm PrismaSeT G floor-standing enclosure source changeover NSX100...250 source changeover fixed mechanical interlock vertical 4P 1 front connection 11 0.37 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 14
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874634
- SAP 1200546875
- Code 82880356
Product Documentation
Document preview: Schneider Electric LVS03043 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX630F DC, 36KA/750VDC, 4 poles, TM-DC trip unit 500A C63F4TM500D
Schneider Electric
Gland Plate 16X5 (NSYEC165)
Schneider Electric
Push-button flush white nedsenket
ZB4FA16
Schneider Electric
Selector switch flush for LED 3 pos org (ZB5FK1753)
Schneider Electric

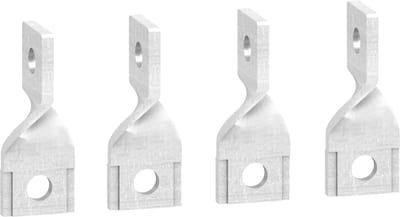

Schneider Electric edgewise terminal extensions, ComPact NSX 100/160/250, set of 4 parts LV429309
Schneider Electric

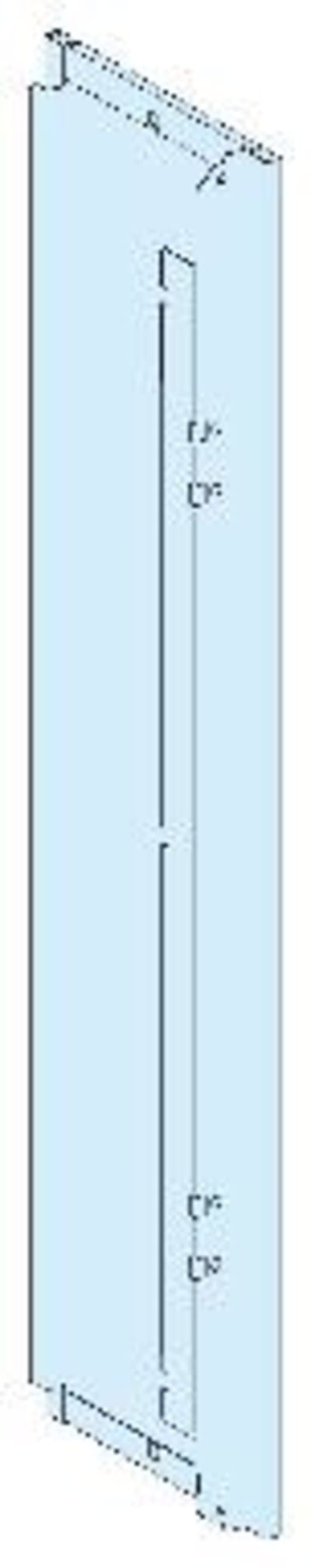

Side panel PrismaSeT G 9M IP30
LVS01041
Schneider Electric

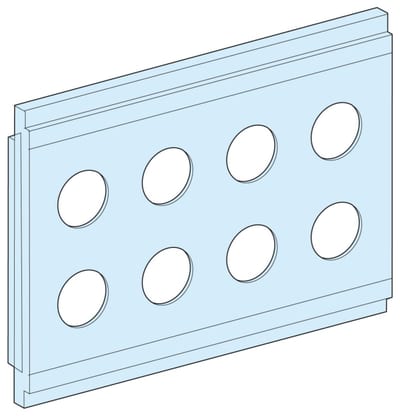

Mounting plate with 8X22MM Hole G IP55
LVS08862
Schneider Electric

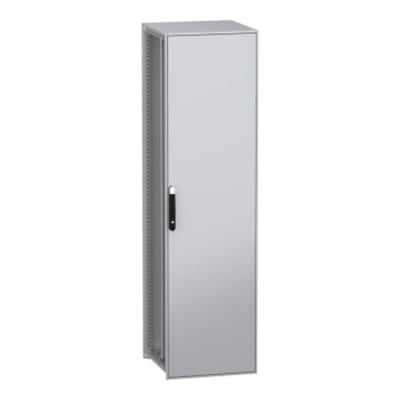

Floor-standing cabinet SFN m/m.pl 2200X600X600
