Floor-standing cabinet SFN m/m.pl 2200X600X600
Pricing
Request a quote
We reply within 24 hours
Product Description

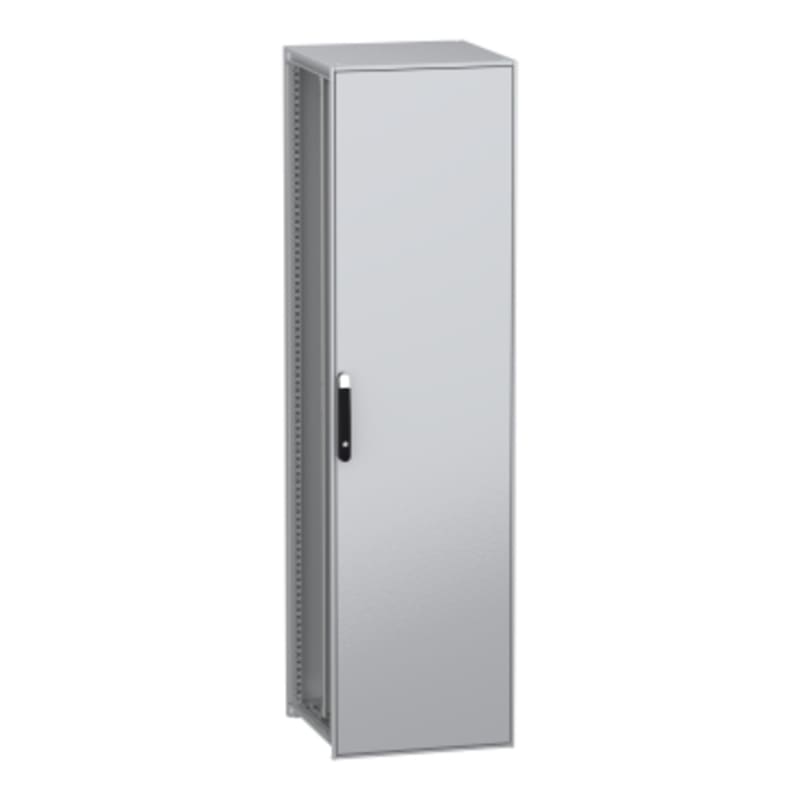

Schneider Electric NSYSFN22660P Floor-standing cabinet byggbart, PanelSeT SFN, with mounting plate, IP55, 2200x600x600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN22660P
- EAN / GTIN
- 3606486103715
- Sales unit
- pcs
- Dimensions
- 2200×600×600
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2200 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 600 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof; 1 mounting plate
- Structure type
- Formed from a single section; Panels and doors built into the structure; Perforated structure with a pitch of 25 mm; Vertical uprights joined with top and bottom frames
- Door opening side
- Reversible (120 °)
- Door type
- Plain front
- Mounting plate description
- Plain
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Sides of enclosure; Rear; Front
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 101.5 kg
- Standards
- IEC 62208; UL; CUL
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 2200 mm
- Depth
- 600 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- Yes
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486103715
- SAP 1200698205
- Code 83799712
Product Documentation
More from Schneider Electric
Schneider Electric

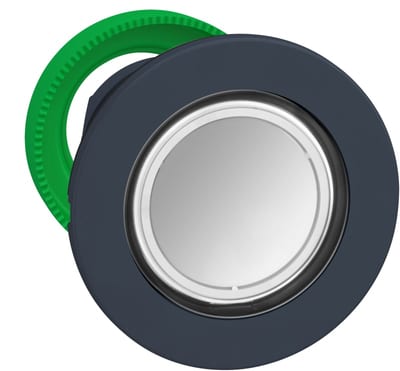

Illuminated Push Button flush white (ZB5FW313)
Schneider Electric
Schneider Electric Monobloc perforated plates H300XW300MM with universal perforations 11X26MM NSYMR33
Schneider Electric
Selector switch flush for LED 3 pos green (ZB5FK1833)
Schneider Electric

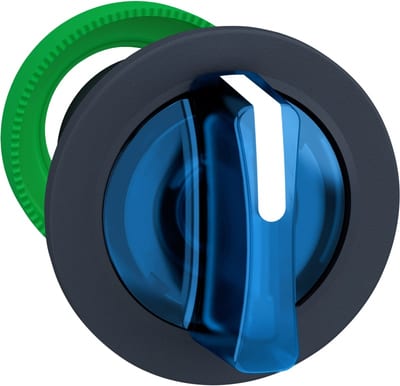

Selector switch flush for LED 3 pos blue (ZB5FK1363)
Schneider Electric
F2-HOR.-FRONT/rear display 2500A W800 D600
LVS04988
Schneider Electric

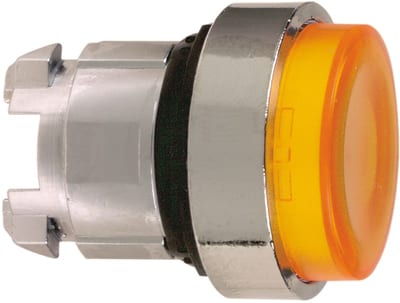

Schneider Electric ZB4BW15 Illuminated Push-Button Head, Projecting, Yellow BA9S
Schneider Electric

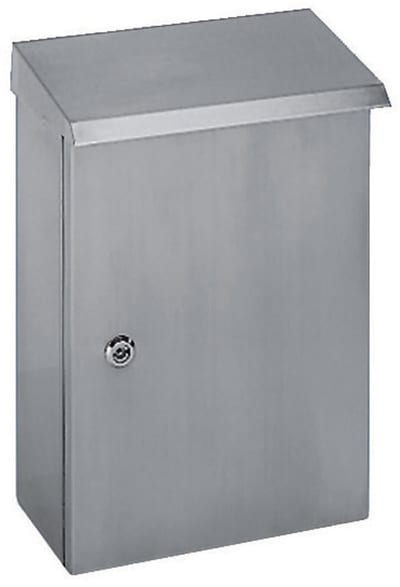

Rain hood Stainless (NSYTX5025)
