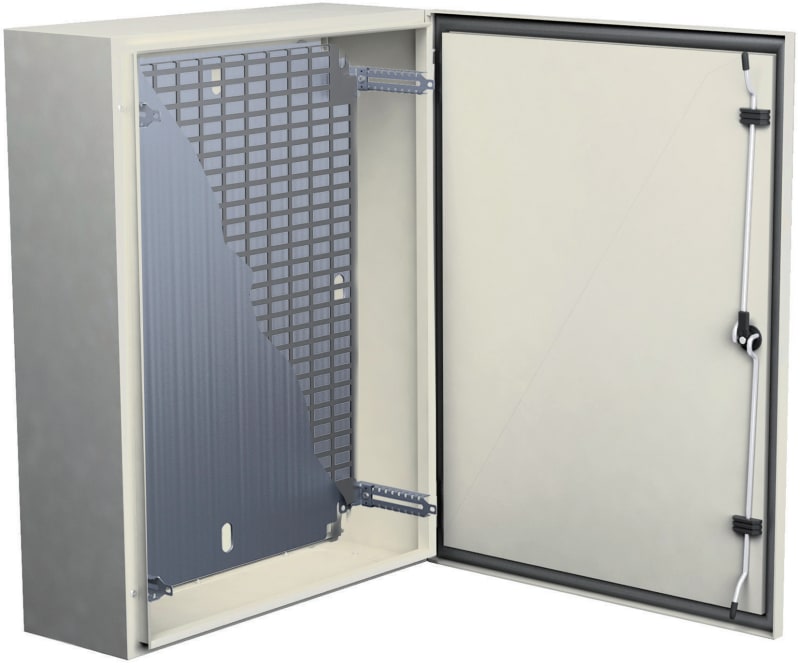

WALL-Mount Cabinet S3D without PL 3X2X1.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D3215 Wall-mount cabinet S3D Without Pl 3X2X1.5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D3215
- EAN / GTIN
- 3606480159800
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 300 mm
- Enclosure nominal width
- 200 mm
- Enclosure nominal depth
- 150 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- BV; GL; UL; DNV; cUL
- Product weight
- 3.02 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.000 cm
- Package 1 Width
- 22.000 cm
- Package 1 Length
- 31.500 cm
- Package 1 Weight
- 3.090 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 56
- Package 2 Height
- 99.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 189.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 200 mm
- Height
- 300 mm
- Depth
- 150 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159800
- SAP 1000089571
- Code 8839818
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Sensor plug, MasterPact MTZ1/MTZ2 with MicroLogic X, 1200A rating, spare part LV848824SP
Schneider Electric
Schneider Electric APC NetShelter SX, Server Rack Enclosure, 48U, 2258H x 750W x 1070D mm, Black AR3157
Schneider Electric
Schneider Electric variable speed drive ATV630 - 110KW/150HP - 380...480V - IP00 ATV630C11N4
Schneider Electric
MONTPL.NSX250 PrismaG horizontal fast/vigi
LVS03033
Schneider Electric
Basefront PrismaSeT G B600
LVS01052
Schneider Electric
Profalux 2 keys + kit MTZ2/3 spare
LV864934SP
Schneider Electric
Push-Button Head Pressure/Pressure Yellow (ZB4BH05)
Schneider Electric

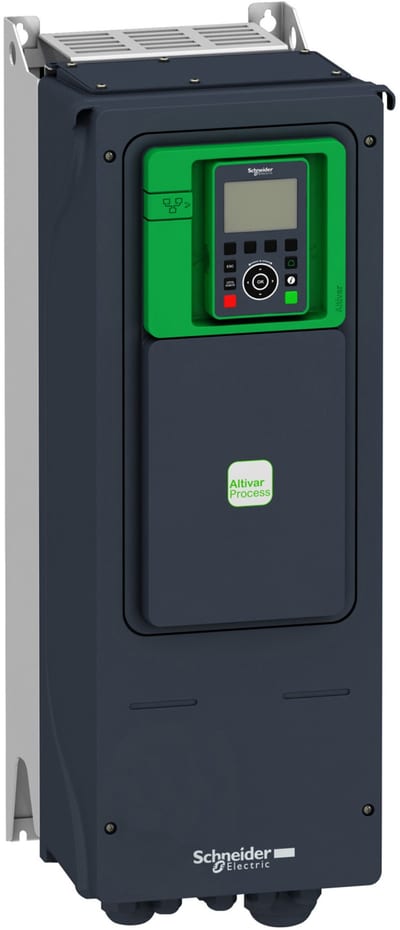

Schneider Electric variable speed drive, Altivar Process ATV900, ATV950, 3kW, 400 to 480V, with braking unit, IP55 ATV950U30N4
