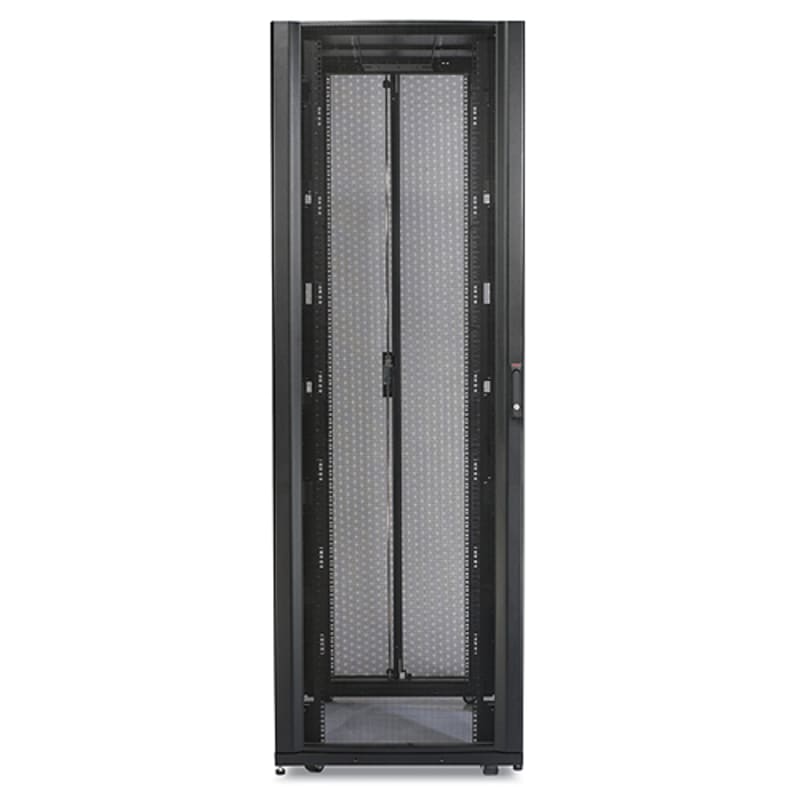

Schneider Electric APC NetShelter SX, Server Rack Enclosure, 48U, 2258H x 750W x 1070D mm, Black AR3157

Schneider Electric AR3157 NetShelter SX 48U 750mm Wide x.

Manufacturer part number (MPN)

AR3157 EAN / GTIN: 0731304236368 Sales unit: pcs Product or component type: Rack enclosure Number of rack unit: 48U Provided equipment: Baying hardware; Key(s); Keyed-alike doors and side panels; Leveling feet; Mounting hardware; Pre-installed casters; Side panels Height: 2258 mm Width: 750 mm Depth: 1070 mm Product weight: 169.09 kg Colour: Black Mounting preference: No preference mounting mode: Not rack-mountable Maximum mounting depth: 914.9 mm minimum mounting depth: 261.9 mm Rack width: 19" Marking: 14 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 16 gauge rear door; 18 gauge roof; 18 gauge side panels Permanent permissible load: 1020.6 kg dynamic; 1701.0 kg static Standards: UL 2416; UL 60950-1; EIA-310E Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 238.4 cm Package 1 Width: 85.1 cm Package 1 Length: 115.6 cm Package 1 Weight: 184.09 kg Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: None Number of height units: 48 Max. load capacity: 1701 kg With roof plate: Yes With earthing: No With front door: Yes With sidewall: Yes Demountable: Yes material: Steel Surface finishing: Powder coating Degree of protection (IP): IP20 Country of origin: China

HS Code

9403.20

• EAN 0731304236368
• SAP 1000462877
• Code 8867391
