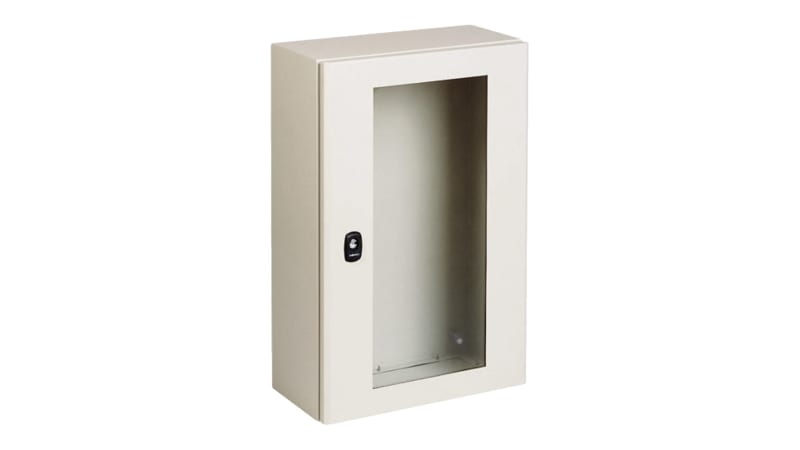

WALL-Mount Cabinet WITH WINDOW. 12X8X4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D12840T Wall-mount cabinet With Window. 12X8X4.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D12840T
- EAN / GTIN
- 3606480159831
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1200 mm
- Enclosure nominal width
- 800 mm
- Enclosure nominal depth
- 400 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 2 cable gland plate; 1 door; 1 lock
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV; cUL; BV; GL; UL
- Product weight
- 48 kg
- Electromagnetic compatibility
- Electromagnetic field immunity test
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 45.000 cm
- Package 1 Width
- 82.000 cm
- Package 1 Length
- 123.000 cm
- Package 1 Weight
- 45.800 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 2
- Package 2 Height
- 96.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 107.200 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 800 mm
- Height
- 1200 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159831
- SAP 1000089569
- Code 8839794
