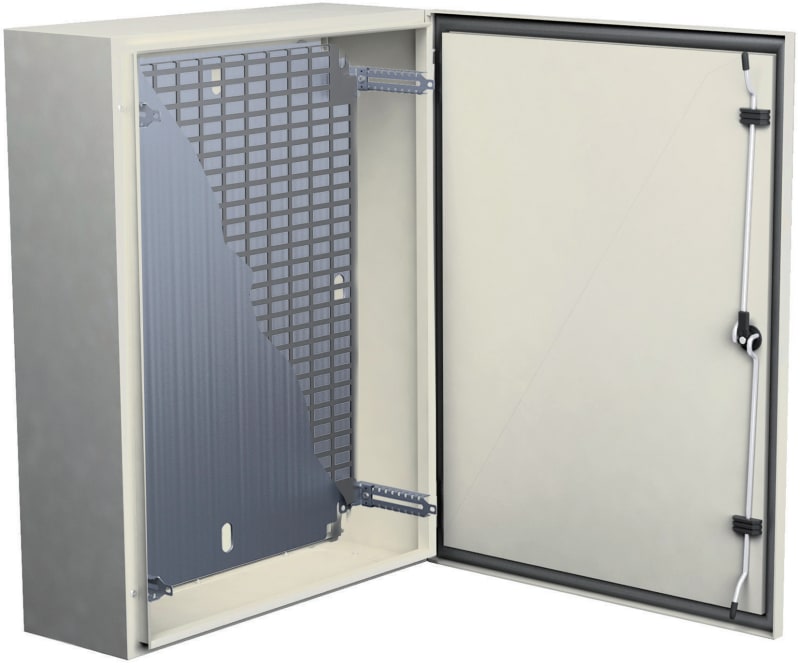

WALL-Mount Cabinet S3D without PL 10X8X3
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D10830 Wall-mount cabinet S3D Without Pl 10X8X3.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D10830
- EAN / GTIN
- 3606480160127
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1000 mm
- Enclosure nominal width
- 800 mm
- Enclosure nominal depth
- 300 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 2 cable gland plate; 1 door; 1 lock
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- BV; GL; cUL; DNV; UL
- Product weight
- 33 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 35.500 cm
- Package 1 Width
- 82.000 cm
- Package 1 Length
- 102.000 cm
- Package 1 Weight
- 33.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 6
- Package 2 Height
- 180.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 208.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 800 mm
- Height
- 1000 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480160127
- SAP 1000089548
- Code 8839734
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX630HB2, 100KA/690VAC, 4 poles, MicroLogic 5.3E trip unit 630A C63W45E630
Schneider Electric
Schneider Electric Floor standing encl. polyester vers.PLAT open top w/ canopy 500X750X320 IP44 NSYPLAT573G
Schneider Electric
Push-button flush for LED green (ZB4FH033)
Schneider Electric

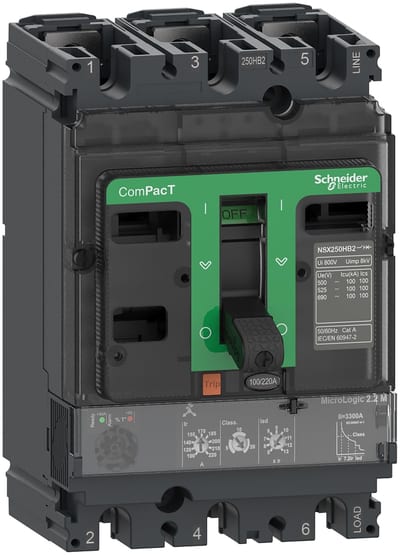

Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 3 poles, MicroLogic 2.2M trip unit 50A C10R32M050
Schneider Electric

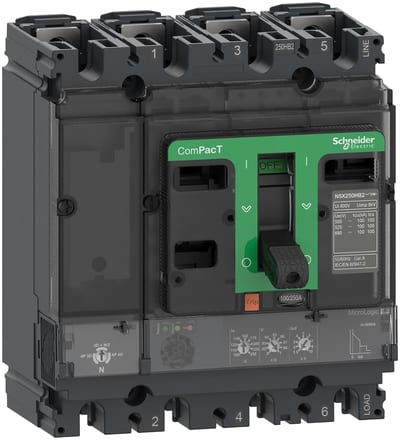

Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 4 poles, MicroLogic 2.2 trip unit 100A C10R42D100
Schneider Electric

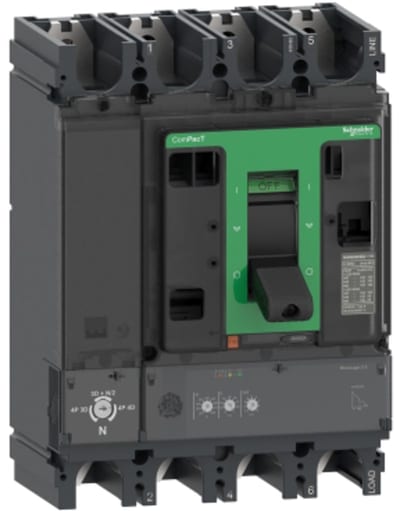

Schneider Electric Circuit breaker, ComPacT NSX400R, 200KA/415VAC, 4 poles, MicroLogic 2.3 trip unit 400A C40R42D400
Schneider Electric

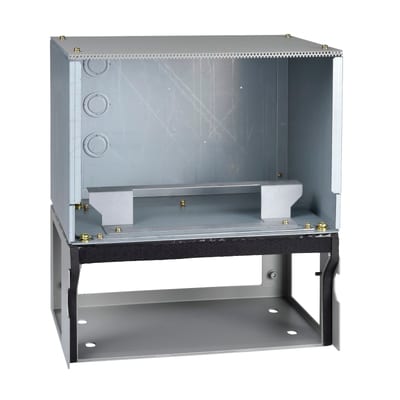

NEMA type 1 kit S7B-8
VW3A9208
Schneider Electric

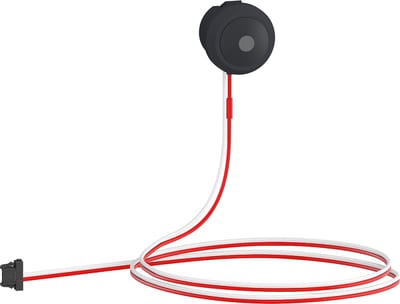

Schneider Electric Non-adjust delay unit - MN undervoltage release - 100/130 V AC/DC - spare part LV833684SP
