WALL-Mount Cabinet WITH PLATE. 10X10X3 2D
Pricing
Request a quote
We reply within 24 hours
Product Description

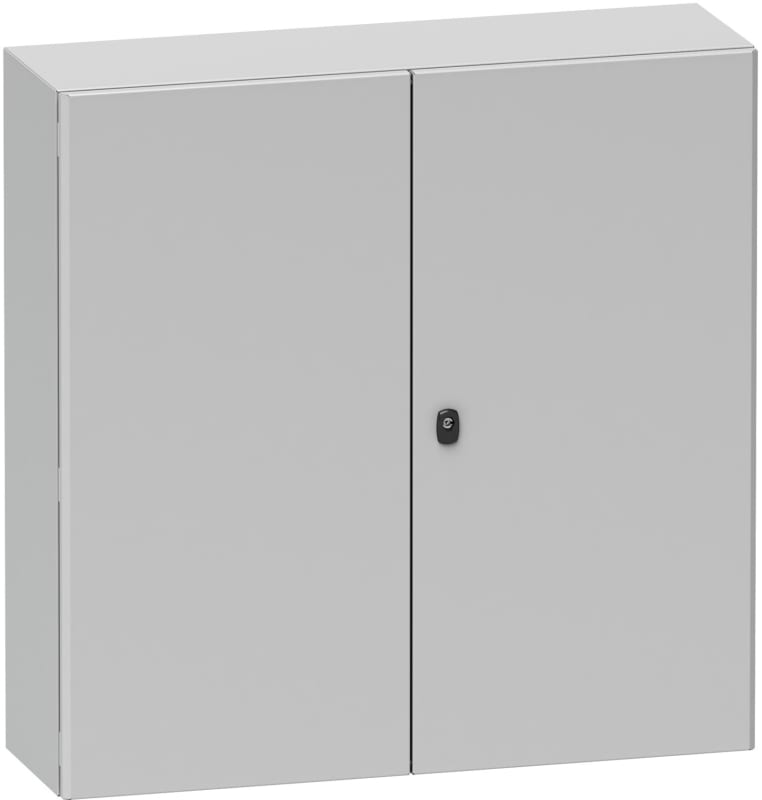

Schneider Electric NSYS3D101030DP — Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1000x300mm, IP55, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D101030DP
- EAN / GTIN
- 3606480160325
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1000 mm
- Enclosure nominal width
- 1000 mm
- Enclosure nominal depth
- 300 mm
- Door type
- Plain
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 2 cable gland plate; 2 door with lock; 1 mounting plate
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 2 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws; Mounting plate by fixing element
- Material
- Enclosure: steel; Mounting plate: galvanised steel
- Surface finish
- Enclosure: epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- GL; BV; UL; DNV; cUL
- Product weight
- 64 kg
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP55 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 35.000 cm
- Package 1 Width
- 102.000 cm
- Package 1 Length
- 103.000 cm
- Package 1 Weight
- 62.400 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 3
- Package 2 Height
- 114.000 cm
- Package 2 Width
- 102.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 200.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1000 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
