Modular Cover with Hinge (NSYMUCH306)
Pricing
Request a quote
We reply within 24 hours
Product Description

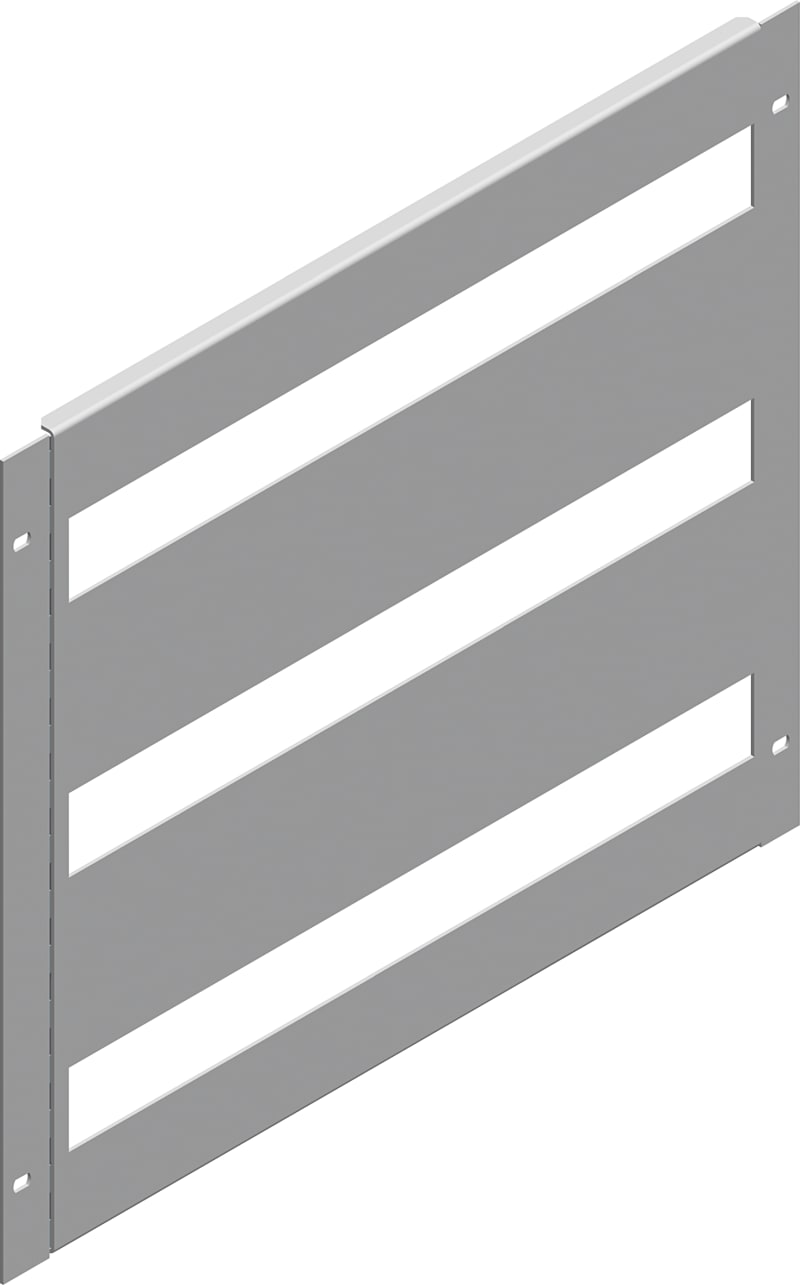

Schneider Electric NSYMUCH306 Modular Cover With Hinge.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMUCH306
- EAN / GTIN
- 3606480066375
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Cover plate
- Anwendung
- Multi-purpose
- Range compatibility
- PanelSeT SF SF; PanelSeT SM
- Nominal dimensions of the housing
- - H: 300 mm W: 600 mm
- Mounting location
- On chassis coupling set
- Device composition
- fixing elements; 1 cover plate
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws
- Number of horizontal rows
- 2
- Total number of 18 mm modules
- 48
- Type of front plate
- Hinged with cut-out
- Number of cut-out
- 2 cut-outs
- Height
- Nominal: 300 mm; Real: 299.5 mm
- Width
- Nominal: 600 mm; Fixing centers: 478 mm; Real: 502 mm
- Depth
- Real : 12 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 30.500 cm
- Package 1 Length
- 50.500 cm
- Package 1 Weight
- 1.972 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 15
- Package 2 Height
- 29.000 cm
- Package 2 Width
- 37.500 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 29.580 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Cover
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480066375
- SAP 1000089297
- Code 8581643
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Serrated quarter-turn sliding nut - M8. Supply: 10 units NSYSNSM8
Schneider Electric
Schneider Electric Modbus serial link connecting cable - 1 RJ45/1 SUB-D 25 - 0.3 m XPSMCSCY
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P+N, 20A, C curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P54720
Schneider Electric
Cable LUG FOR ALUMINIUM 240 mm² 3 pcs
LV432504
Schneider Electric
Schneider Electric ACTI9 iDPN N Vigi - RCBO - 1P+N - 32A - C Curve - 6000A - 30MA - type A-SI A9D33632
Schneider Electric
A9 Comb busbar with connectors 3PN 12MOD
A9XPP712
Schneider Electric
Schneider Electric Copper LAN cable, Actassi, F/UTP, 4P, CAT5E, Euroclass D, 155MHz, LSZH, 500M VDICD135218
Schneider Electric
Emergency stop head for LED with sign DE
ZB5AT8643M230
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYMUCH306?
- NSYMUCH306 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYMUCH306.
- What is the HS code for NSYMUCH306?
- The customs tariff (HS) code for NSYMUCH306 is 7326.90.
- Who manufactures NSYMUCH306?
- NSYMUCH306 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYMUCH306?
- Yes — the NSYMUCH306 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYMUCH306?
- The minimum order quantity is 1.
- Is NSYMUCH306 available?
- Yes — NSYMUCH306 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
