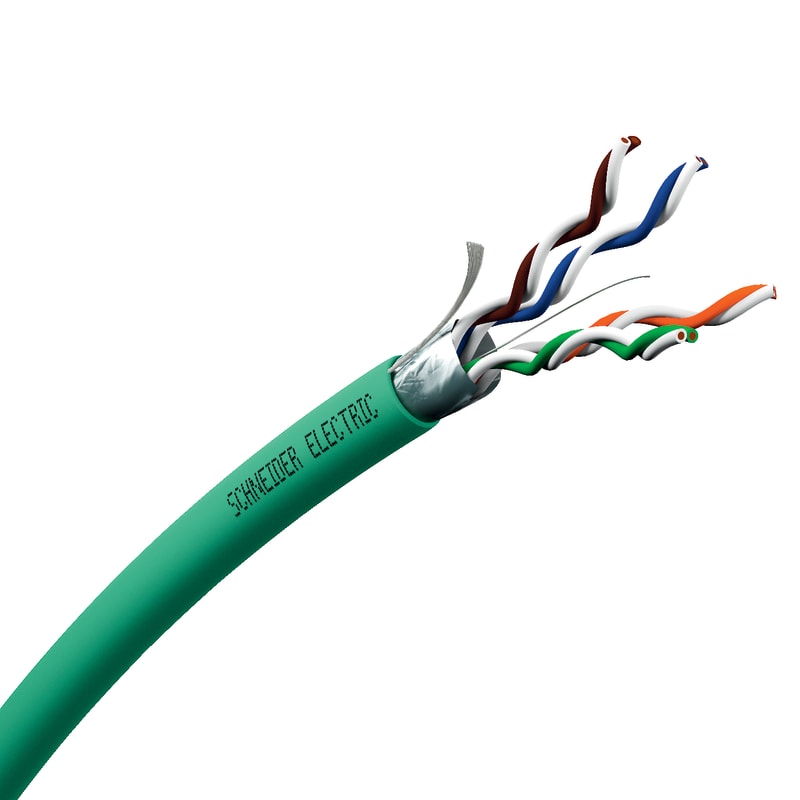

Schneider Electric Copper LAN cable, Actassi, F/UTP, 4P, CAT5E, Euroclass D, 155MHz, LSZH, 500M VDICD135218

Schneider Electric VDICD135218 Actassi data cable F/UTP Cat 5e 4p, PoE type 4, 500 m reel, green halogen-free, fire class Dca.

Manufacturer part number (MPN)

VDICD135218 EAN / GTIN: 3606481320070 HS code: 8544.42 Sales unit: m Package quantity: 500 m Range: Actassi Product or component type: Copper cable Cable packaging: drum of 500 m Colour tint: Green Cable shielding type: F/UTP Type of cable: 4 pair cables Communication network category: 5e remote powering: PoE 15W (Power over Ethernet); PoE+ 30W (Power over Ethernet Plus) Communication network type: 1000BASE-T minimum return loss: Guaranteed: 20.1 dB at 100 MHz Attenuation: Guaranteed: 22 dB @ 100 MHz Power sum near-end crosstalk [PSNEXT]: Guaranteed: 32.3 dB at 100 MHz Attenuation to Crosstalk Ratio Far-end [ACRF]: Guaranteed: 24 dB at 100 MHz Power sum attenuation crosstalk ratio far-end [PSACRF]: 21 dB at 100 MHz Near end crosstalk [NEXT]: Guaranteed: 35.3 dB at 100 MHz Coupling attenuation: >= 55 dB from 30…100 MHz conforming to IEC 61156-5, ed. 2 type II; >= 55 - 20 x log10(f / 100) dB from 100…1000 MHz conforming to IEC 61156-5, ed. 2 type II Transfer impedance: <= 50 mOhm/m at 1 MHz (grade 2); <= 1000 mOhm/m at 100 MHz (grade 2) Input impedance: 100 Ohm Maximum loop resistance: 171 Ohm per 1000 m Segregation class: Class c conforming to EN 50174-2 Maximum resistance unbalance: 2 % Pulling force: 120 N Bending radius: minimum bending radius during installation: 8 x overall diameter; minimum bending radius after installation: 4 x overall diameter material: Solid bare copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tinned copper: drain wire; PE (polyethylene): sheath Euroclass level: Dca s2 d2 a1 Nominal velocity propagation: 68 % linear conductor resistance: 85.5 mΩ/m AWG gauge: 24 AWG Calorific value: 513 MJ/km Cable outer diameter: 6 mm Cable weight: 41.2 kg / 1 km Ambient air temperature for installation: 0…50 °C Ambient air temperature for storage: -20…60 °C Ambient air temperature for operation: -20…60 °C Directives: 2006/95/EC - low voltage directive; 305/2011/EU - construction product regulation Flame retardance: LSZH Standards: ISO/IEC 11801-ed. 3 performance; EN 50173-1 performance; EN 50174-1 performance; ANSI/TIA/EIA-568-C.2 performance; IEC 61156-5-ed. 2.1 performance; EN 50288-2-1 performance; ISO/IEC 14763-2 installation standards; EN 50174-2 installation standards; IEC 60332-1 flame propagation characteristics; IEC 60754-1; IEC 60754-2 acidity of combustion gases; IEC 61034 smoke generation Number of Units in Package 1: 1 Number of Units in Package 2: 18 Warranty (in months): 18

HS Code

8544.42

• EAN 3606481320070
• SAP 1200024382
• Code 81445051
