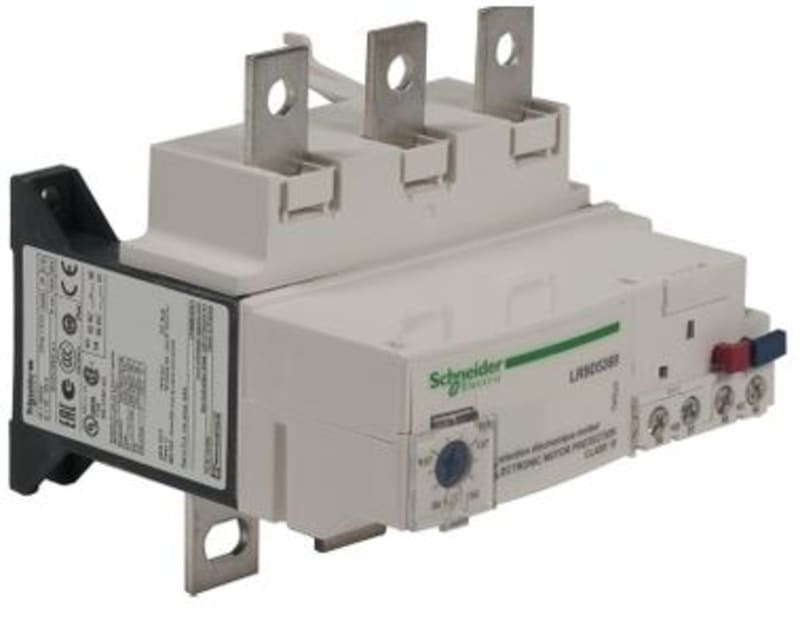

Schneider Electric thermal overload relays, TeSys Deca, 90...150A, class 10 LR9D5369

Schneider Electric LR9D5369 Thermal Relay 90-150A.

Manufacturer part number (MPN)

LR9D5369

EAN / GTIN

3389110787931

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Setting range

90-150 A

Range

TeSys

Product name

TeSys LRD; TeSys Deca

Product or component type

Electronic thermal overload relay

Device short name

LR9D

Relay application

Motor protection

Product compatibility

NSX circuit breaker; LC1D150; LC1D115

Network type

AC

Thermal overload class

Class 10 conforming to IEC 60947-4-1

Signalling function

Alarm

Thermal protection adjustment range

90…150 A

[Ui] rated insulation voltage

Power circuit: 1000 V conforming to IEC 60947-4-1; Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL

Network frequency

50...60 Hz

[Us] rated supply voltage

24 V DC

Supply voltage limits

17…32 V

Mounting support

Under contactor; Rail

Tripping threshold

1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1; 1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1

Auxiliary contact composition

1 NO + 1 NC

[Ith] conventional free air thermal current

5 A for signalling circuit

[Ue] rated operational voltage

690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Associated fuse rating

4 A gG for signalling circuit; 4 A BS for signalling circuit

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Phase failure sensitivity

Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1

Control type

Red push-button: stop; Blue push-button: reset

Temperature compensation

-20…60 °C

Switching capacity in mA

0...150 mA

Maximum voltage drop

<2.5 V closed state

Connections - terminals

Power circuit: bars; Control circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 0.5…1.5 mm² flexible without cable end; Alarm circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end

Tightening torque

Alarm circuit: 0.45 N.m - on screw clamp terminals; Power circuit: 18 N.m - on bars M8; Control circuit: 1.2 N.m - on screw clamp terminals

Height

118 mm

Width

115 mm

Depth

125 mm

Product weight

0.885 kg

Climatic withstand

conforming to IACS E10

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…60 °C without derating conforming to IEC 60947-4-1

Ambient air temperature for storage

-60…70 °C

Operating altitude

<= 2000 m without derating

Mechanical robustness

Vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6; Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7

Dielectric strength

1.89 kV at 50 Hz conforming to IEC 60947-1

Standards

EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4; GB/T 14048.5

Product certifications

UL; CSA; CCC; UKCA

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110787931
• SAP 1000007454
• Code 863769
