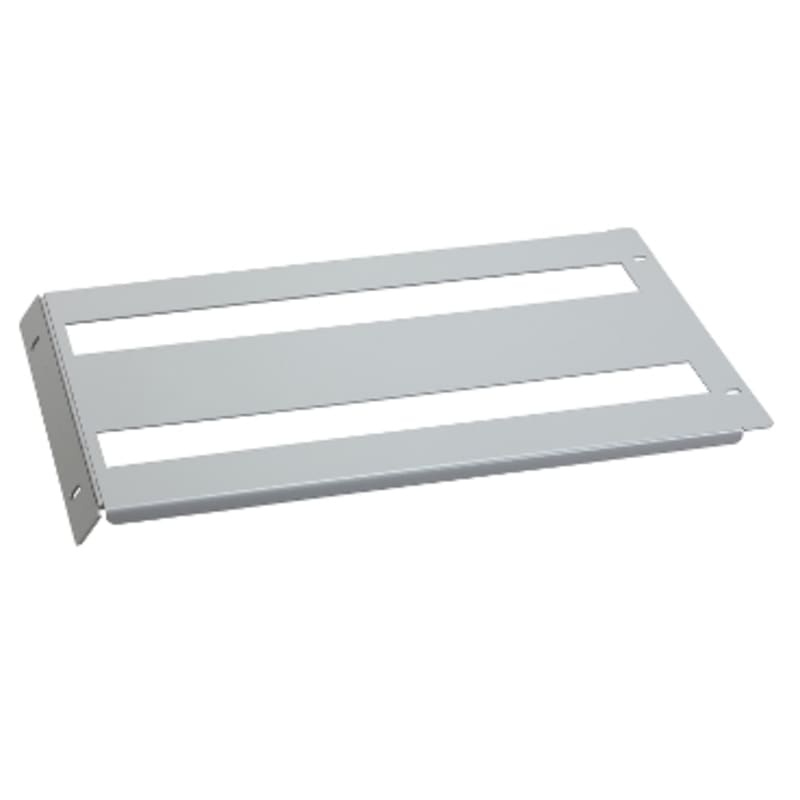

Modular Cover with Hinge (NSYMUCH158)

Schneider Electric NSYMUCH158 Modular Cover With Hinge.

Manufacturer part number (MPN)

NSYMUCH158

EAN / GTIN

3606480066344

Sales unit

pcs

Range

PanelSeT

Accessory / separate part category

Enclosure accessory

Product or component type

Cover plate

Anwendung

Multi-purpose

Range compatibility

PanelSeT SF SF; PanelSeT SM

Nominal dimensions of the housing

- H: 150 mm W: 800 mm

Mounting location

On chassis coupling set

Device composition

fixing elements; 1 cover plate

Quantity per set

Set of 1

Material

Steel

Colour

Grey (RAL 7035)

Surface finish

Epoxy-polyester powder

Fixing mode

By screws

Number of horizontal rows

1

Total number of 18 mm modules

36

Type of front plate

Hinged with cut-out

Number of cut-out

1 cut-out

Height

Nominal: 150 mm; Real: 149.5 mm

Width

Nominal: 800 mm; Fixing centers: 678 mm; Real: 702 mm

Depth

Real : 12 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

16.000 cm

Package 1 Length

71.000 cm

Package 1 Weight

1.496 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

20

Package 2 Height

29.000 cm

Package 2 Width

37.500 cm

Package 2 Length

120.000 cm

Package 2 Weight

29.920 kg

Country of origin

FR

Warranty (in months)

18

Model

Cover

RAL-number

7035

HS Code

8538.10

• EAN 3606480066344
• SAP 1000089294
• Code 8914071
