Schneider Electric NSYSFTB18 PanelSeT SFN Lifting Bar 1800 mm Steel Set of 2
Pricing
Request a quote
We reply within 24 hours
Product Description

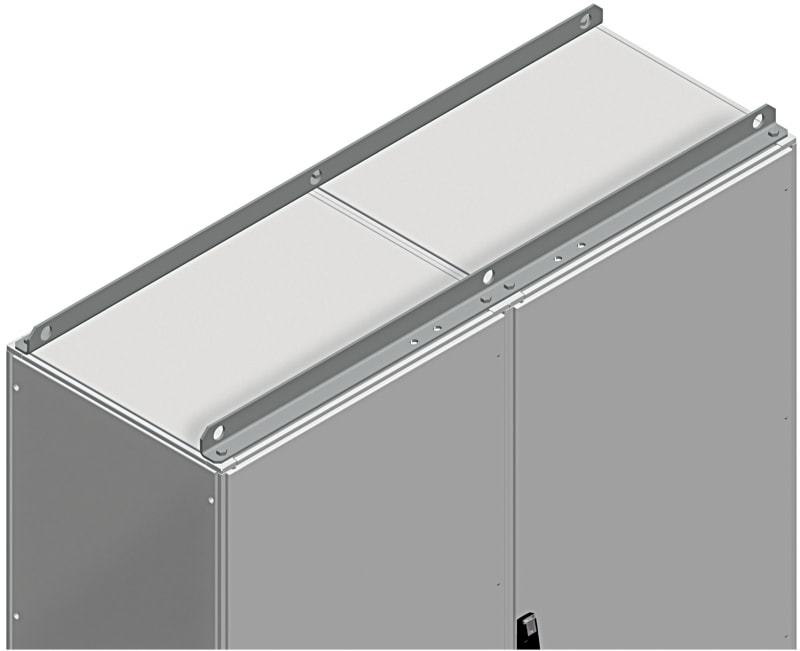

Schneider Electric NSYSFTB18 is a pair of zinc-coated steel lifting bars for PanelSeT SFN, SF, SFHD and SFM enclosures at 1800 mm width. The bars mount to the enclosure top directly on the upright axis with M12 screws and carry a permissible load of 3000 kg. Length 1800 mm nominal (1795 mm real), section 60 x 60 mm, diameter 32 mm. Country of origin France.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFTB18
- EAN / GTIN
- 3606485131849
- Sales unit
- pcs
- Area
- PanelSeT
- category
- Lifting accessory
- Product or component type
- Lifting bar
- Application
- Multi-purpose
- Mounting location
- Enclosure top
- Mounting support
- Directly in the axis of the uprights
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SFHD; PanelSeT PanelSeT SFM
- Device composition
- 2 lifting bars; fixing elements
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- By screws - screw type M12
- Permanent permissible load
- 3000 kg
- Length
- Nominal: 1800 mm; Real: 1795 mm
- Height
- 60 mm
- Depth
- 60 mm
- Diameter
- 32 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.000 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 197.000 cm
- Package 1 Weight
- 30.000 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 5
- Package 2 Height
- 42.500 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 150.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Transport bracket
- Width
- 1800 mm
- Load bearing capacity
- 2000 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485131849
- SAP 1000317598
- Code 81015215
Product Documentation
