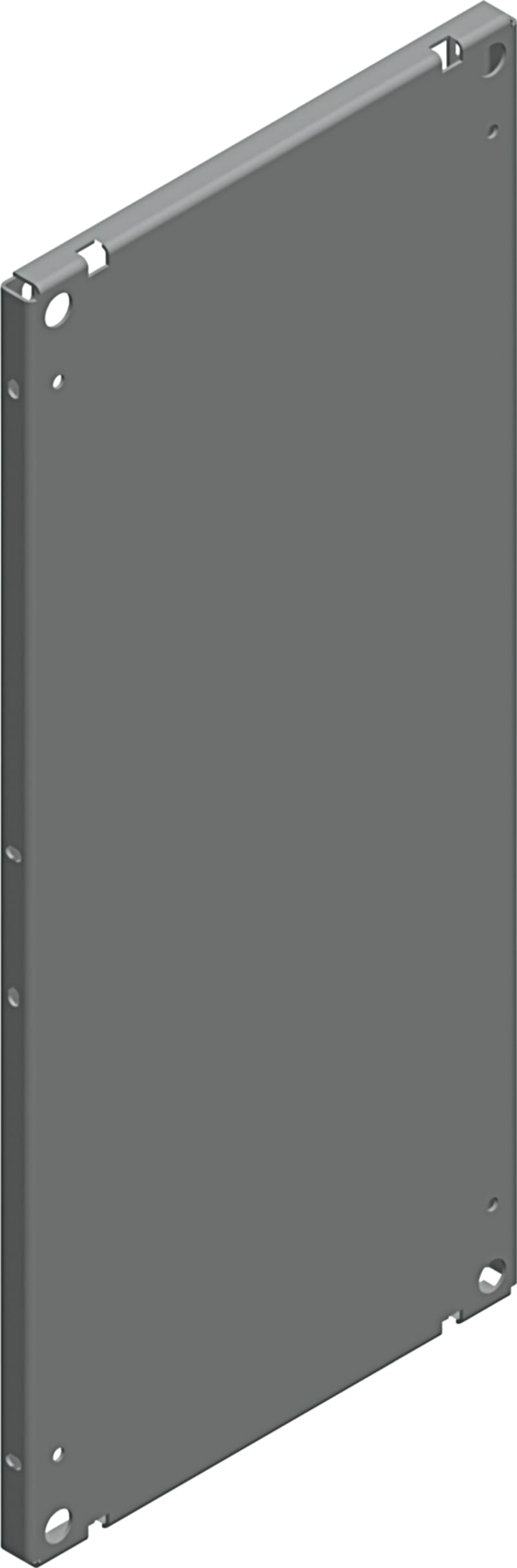

Mounting Plate 12X6 (NSYMP126)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMP126 Mounting plate 12X6.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMP126
- EAN / GTIN
- 3606485126760
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 1200 mm W: 600 mm
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX
- Device composition
- 1 mounting plate; 2 sliding shoes
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing brackets
- Maximum load
- 300 kg/m²
- Permanent permissible load
- 500 kg intermediate position; 600 kg back of the enclosure
- Height
- Fixing centers: 1050 mm; Nominal: 1200 mm; Real: 1097 mm
- Width
- Nominal: 600 mm; Fixing centers: 450 mm; Real: 496 mm
- Depth
- 27 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 111.000 cm
- Package 1 Width
- 51.000 cm
- Package 1 Length
- 4.000 cm
- Package 1 Weight
- 13.500 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 12
- Package 2 Height
- 60.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 174.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485126760
- SAP 1000089201
- Code 8581535
Product Documentation
More from Schneider Electric
Schneider Electric
Coil 48-130V Adv 3P G115-225
LX1G3QEHEA
Schneider Electric
Push-button flush white (ZB5FH01)
Schneider Electric
Schneider Electric Vertical Profile 1600mm
NSYTVR16
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 220V DC standard coil, snap-in terminals CAD32AMD
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W1200MM, 1 row, set of 2 NSYSUCR40120
Schneider Electric

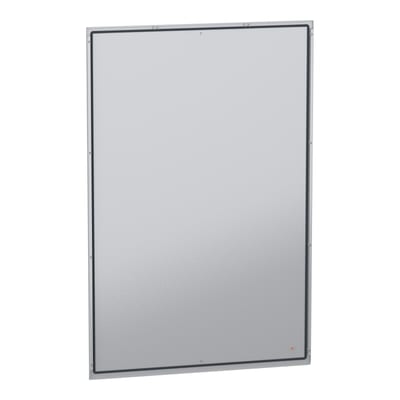

Back panel SFN 1800X1200
NSYBPN1812
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 72V DC low consumption coil, snap-in terminals LC1D09ASL
Schneider Electric

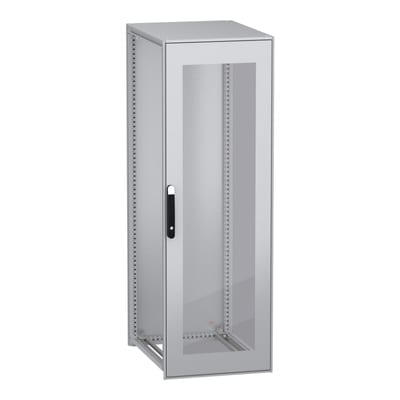

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, glazed door, 1800X600X800MM, IP55 NSYSFN18680T
