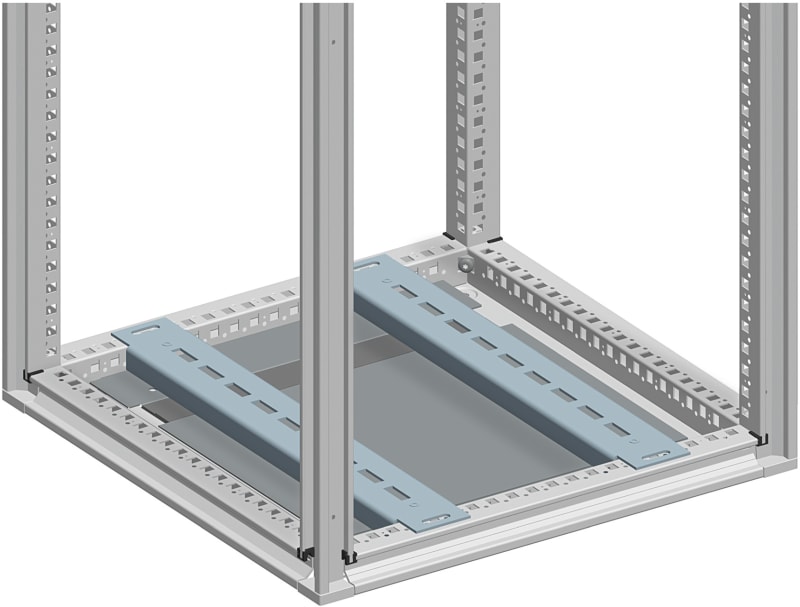

Schneider Electric Heavy load cross rails, PanelSeT SFN, PanelSet SF, W800MM, set of 2 NSYHLCR80
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYHLCR80 Cross-arm 800mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYHLCR80
- EAN / GTIN
- 3606480064586
- Sales unit
- pcs
- Range
- PanelSeT
- Product specific application
- Heavy loading
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Rails for heavy load
- Application
- Multi-purpose
- Nominal dimensions of the housing
- - D: 800 mm
- Range compatibility
- PanelSeT PanelSeT SF
- Mounting location
- On structure of enclosure
- Mounting support
- Bottom frame
- Device composition
- fixing elements; 2 rails
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing element - screw type M6
- Adjustment
- Adjustable with a pitch of 25 mm
- Maximum load
- 475 kg
- Width
- Fixing centers: 750 mm; Nominal: 800 mm
- thickness
- 3 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 78.000 cm
- Package 1 Width
- 11.500 cm
- Package 1 Length
- 4.000 cm
- Package 1 Weight
- 4.216 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 50
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 224.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Support rail
- Suitable for enclosure building depth
- 800 mm
- Height
- 28 mm
- Depth
- 775 mm
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480064586
- SAP 1000089150
- Code 8913686
Product Documentation
