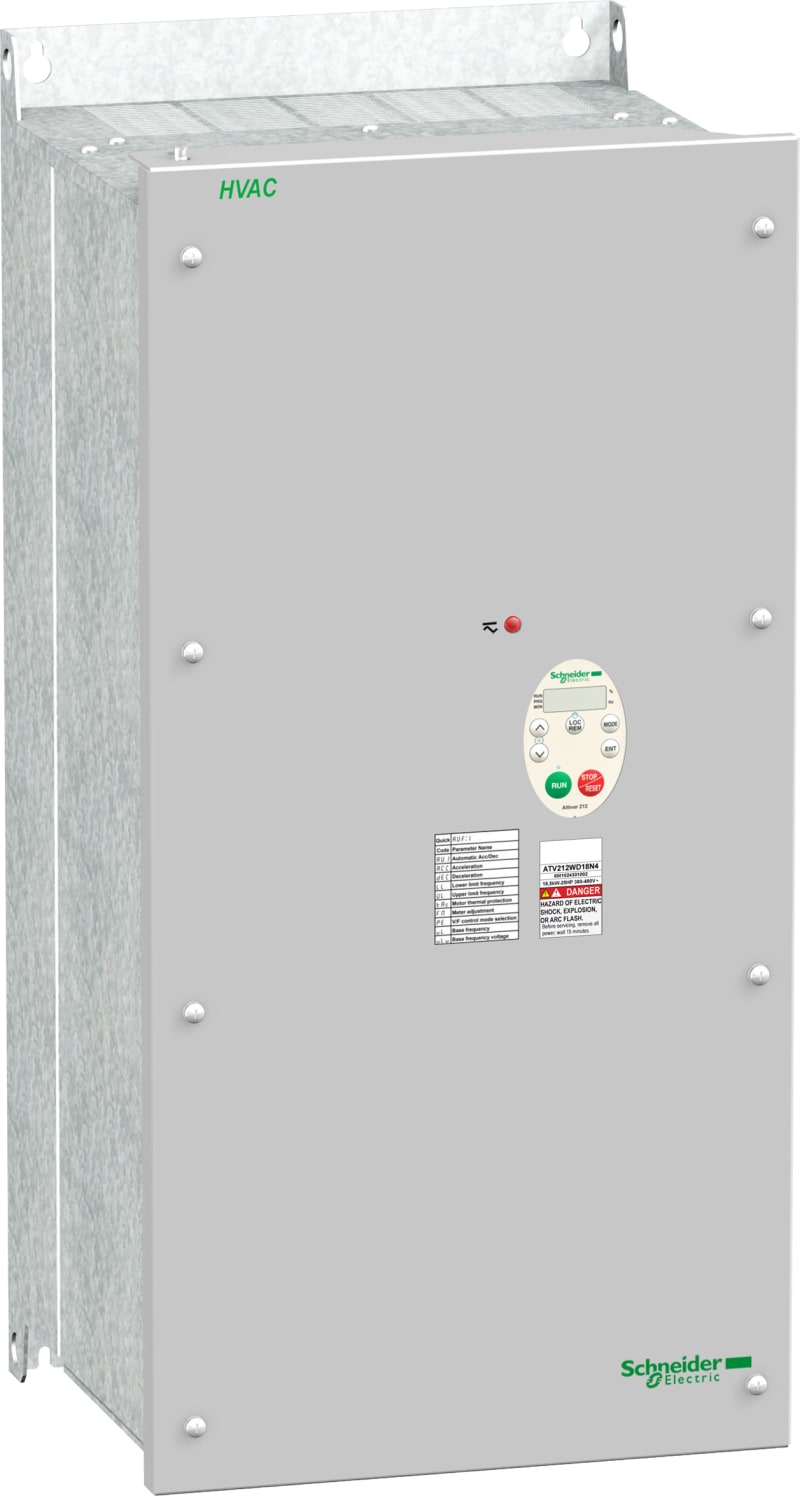

Schneider Electric variable speed drive ATV212 - 18.5kW - 25hp - 480V - 3PH - EMC class C1 - IP55 ATV212WD18N4C

Schneider Electric ATV212WD18N4C — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. ATV212 400V 18kW EMC B IP54.

Manufacturer part number (MPN)

ATV212WD18N4C EAN / GTIN: 3606480322747 Sales unit: pcs Voltage: 400 V IP rating: IP54 Power: 18 kW Device short name: ATV212 Product destination: Asynchronous motors Network number of phases: 3 phases Motor power kW: 18.5 kW Motor power hp: 25 hp Supply voltage limits: 323…528 V Supply frequency: 50...60 Hz - 5...5 % Line current: 27.6 A at 480 V; 34.5 A at 380 V Range of product: Altivar 212 Product or component type: Variable speed drive Product specific application: Pumps and fans in HVAC Communication port protocol: METASYS N2; LonWorks; Modbus; APOGEE FLN; BACnet [Us] rated supply voltage: 380...480 V - 15...10 % EMC filter: Class C1 EMC filter integrated IP degree of protection: IP55 Apparent power: 23.2 kVA at 380 V Continuous output current: 37 A at 380 V; 37 A at 460 V Maximum transient current: 40.7 A for 60 s Speed drive output frequency: 0.5…200 Hz Speed range: 1…10 Speed accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn Local signalling: 1 LED (red) for DC bus energized output voltage: <= power supply voltage Isolation: Electrical between power and control Type of cable: Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR; Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC; With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC Electrical connection: VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / 14 AWG; L1/R, L2/S, L3/T: terminal 16 mm² / 4 AWG; U/T1, V/T2, W/T3: terminal 25 mm² / 3 AWG Tightening torque: 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES); 2.2 N.m, 19.5 lb.in (L1/R, L2/S, L3/T); 5.4 N.m, 48 lb.in (U/T1, V/T2, W/T3) Supply: Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection; Internal supply: 24 V DC (21…27 V), <200 A, protection type: overload and short-circuit protection Sampling duration: 2 ms +/- 0.5 ms F discrete; 2 ms +/- 0.5 ms R discrete; 2 ms +/- 0.5 ms RES discrete; 3.5 ms +/- 0.5 ms VIA analogue; 22 ms +/- 0.5 ms VIB analogue Response time: FM 2 ms, tolerance +/- 0.5 ms for analogue output(s); FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s); FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s); RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s) Accuracy: +/- 0.6 % (VIA) for a temperature variation 60 °C; +/- 0.6 % (VIB) for a temperature variation 60 °C; +/- 1 % (FM) for a temperature variation 60 °C Linearity error: VIA: +/- 0.15 % of maximum value for input; VIB: +/- 0.15 % of maximum value for input; FM: +/- 0.2 % for output Analogue output type: FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits; FM switch-configurable current 0...20 mA, impedance: 970 Ohm, resolution 10 bits Discrete output type: Configurable relay logic: (FLA, FLC) NO - 100000 cycles; Configurable relay logic: (FLB, FLC) NC - 100000 cycles; Configurable relay logic: (RY, RC) NO - 100000 cycles minimum switching current: 3 mA at 24 V DC for configurable relay logic Maximum switching current: 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R); 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R); 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R); 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) Discrete input type: F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm; R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm; RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm Discrete input logic: Positive logic (source) (F, R, RES), = 11 V (state 1); Negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1) Dielectric strength: 3535 V DC between earth and power terminals; 5092 V DC between control and power terminals Insulation resistance: >= 1 mOhm 500 V DC for 1 minute Frequency resolution: Display unit: 0.1 Hz; analogue input: 0.024/50 Hz Communication service: Read device identification (43); Read holding registers (03) 2 words maximum; Write multiple registers (16) 2 words maximum; Write single register (06); Monitoring inhibitable; Time out setting from 0.1 to 100 s Option card: Communication card for LonWorks Specific application: HVAC Discrete output number: 2 Analogue input number: 2 Analogue input type: VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits; VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits; VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm; VIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits Analogue output number: 1 Physical interface: 2-wire RS 485 Connector type: 1 RJ45; 1 open style Transmission rate: 9600 bps or 19200 bps Transmission frame: RTU Number of addresses: 1…247 Data format: 8 bits, 1 stop, odd even or no configurable parity Type of polarization: No impedance Asynchronous motor control profile: Voltage/frequency ratio, 5 points; Voltage/frequency ratio, 2 points; Flux vector control without sensor, standard; Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo); Voltage/frequency ratio - Energy Saving, quadratic U/f Torque accuracy: +/- 15 % Transient overtorque: 120 % of nominal motor torque +/- 10 % for 60 s Acceleration and deceleration ramps: Linear adjustable separately from 0.01 to 3200 s; Automatic based on the load Motor slip compensation: Not available in voltage/frequency ratio motor control; Adjustable; Automatic whatever the load Switching frequency: 6...16 kHz adjustable; 8...16 kHz with derating factor Nominal switching frequency: 8 kHz Braking to standstill: By DC injection Network frequency: 47.5...63 Hz Prospective line Isc: 22 kA Protection type: Overheating protection: drive; Thermal power stage: drive; Short-circuit between motor phases: drive; Input phase breaks: drive; Overcurrent between output phases and earth: drive; Overvoltages on the DC bus: drive; Break on the control circuit: drive; Against exceeding limit speed: drive; Line supply overvoltage and undervoltage: drive; Line supply undervoltage: drive; Against input phase loss: drive; Thermal protection: motor; Motor phase break: motor; With PTC probes: motor Width: 310 mm Height: 665 mm Depth: 315 mm Product weight: 45 kg Pollution degree: 2 conforming to IEC 61800-5-1 Vibration resistance: 1.5 mm (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-8 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Environmental characteristic: Classes 3C1 conforming to IEC 60721-3-3; Classes 3S2 conforming to IEC 60721-3-3 Noise level: 60.2 dB conforming to 86/188/EEC Operating altitude: 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m; <= 1000 m without derating Relative humidity: 5…95 % without condensation conforming to IEC 60068-2-3; 5…95 % without dripping water conforming to IEC 60068-2-3 Ambient air temperature for operation: -10…40 °C (without derating); 40…50 °C (with derating factor) Operating position: Vertical +/- 10 degree Product certifications: UL; NOM 117; CSA; C-Tick Marking: CE Standards: IEC 61800-3 environments 2 category C3; IEC 61800-5-1; IEC 61800-3 environments 2 category C1; IEC 61800-3 environments 1 category C2; EN 55011 group 1 class B; IEC 61800-3 environments 1 category C2; IEC 61800-3 environments 2 category C2; EN 61800-3 category C1; IEC 61800-3 environments 1 category C3; IEC 61800-3 environments 1 category C1; IEC 61800-3 environments 2 category C3; IEC 61800-3 environments 1 category C3; IEC 61800-3 environments 1 category C1; IEC 61800-3 environments 2 category C1; IEC 61800-3; IEC 61800-3 category C1; IEC 61800-3; IEC 61800-5-1; IEC 61800-3 environments 2 category C2 Assembly style: With heat sink Electromagnetic compatibility: Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4; 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5; Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6; Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Regulation loop: Adjustable PI controller Ambient air temperature for storage: -25…70 °C Country of origin: FR Warranty (in months): 18 With control element: Yes Number of digital inputs: 3 Number of analogue inputs: 2 Number of analogue outputs: 1 Supporting protocol for LON: Yes Number of HW-interfaces RS-485: 1 With optical interface: No Supporting protocol for TCP/IP: No Supporting protocol for ASI: No Supporting protocol for PROFIBUS: No Supporting protocol for CAN: No Supporting protocol for INTERBUS: No Supporting protocol for KNX: No Supporting protocol for Modbus: Yes Supporting protocol for Data-Highway: No Supporting protocol for DeviceNet: No Supporting protocol for SUCONET: No Supporting protocol for other bus systems: Yes Degree of protection (IP): IP55 With PC connection: Yes Supporting protocol for SERCOS: No Supporting protocol for INTERBUS-Safety: No Mains voltage: 380–480 V Mains frequency: 50/60 Hz 4-quadrant operation possible: No Type of converter: U converter Number of phases output: 3 Number of phases input: 3 Integrated breaking resistance: No Application in industrial area permitted: Yes Application in domestic- and commercial area permitted: Yes Max. output frequency: 200 Hz Max. output at linear load at rated output voltage: 18.5 kW Max. output at quadratic load at rated output voltage: 18.5 kW Relative symmetric net voltage tolerance: 10 % Relative symmetric net frequency tolerance: 5 % Supporting protocol for AS-Interface Safety at Work: No Supporting protocol for DeviceNet Safety: No Supporting protocol for EtherNet/IP: No Supporting protocol for Foundation Fieldbus: No Supporting protocol for PROFINET CBA: No Supporting protocol for PROFINET IO: No Supporting protocol for PROFIsafe: No Supporting protocol for SafetyBUS p: No Max. output voltage: 480 V Nominal output current I2N: 37 A Supporting protocol for BACnet: No

HS Code

8504.40

• EAN 3606480322747
• SAP 1000473343
• Code 8133689
