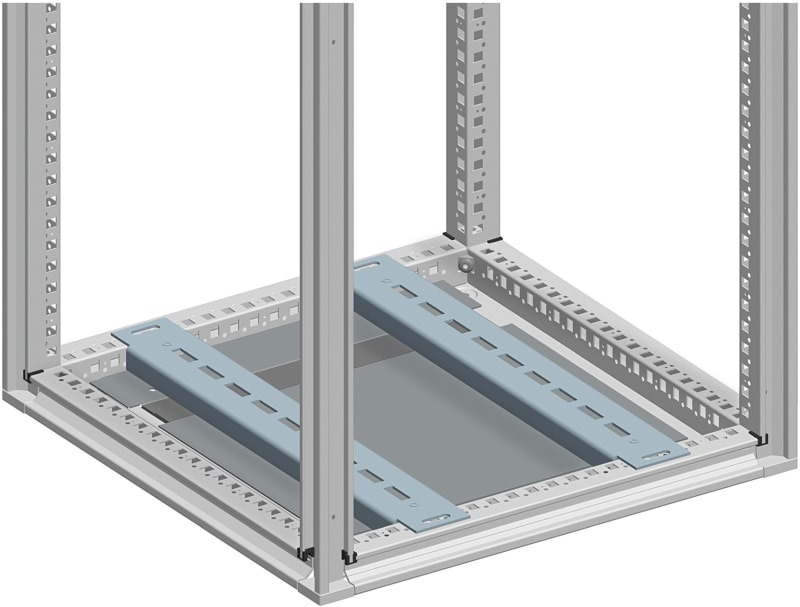

Schneider Electric Heavy load cross rails, PanelSeT SFN, PanelSet SF, W600MM, set of 2 NSYHLCR60
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYHLCR60 Cross-arm 600mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYHLCR60
- EAN / GTIN
- 3606480064579
- Sales unit
- pcs
- Range
- PanelSeT
- Product specific application
- Heavy loading
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Rails for heavy load
- Application
- Multi-purpose
- Nominal dimensions of the housing
- - D: 600 mm
- Range compatibility
- PanelSeT PanelSeT SF
- Mounting location
- On structure of enclosure
- Mounting support
- Bottom frame
- Device composition
- fixing elements; 2 rails
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing element - screw type M6
- Adjustment
- Adjustable with a pitch of 25 mm
- Maximum load
- 500 kg
- Width
- Fixing centers: 550 mm; Nominal: 600 mm
- thickness
- 3 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 13.000 cm
- Package 1 Length
- 59.000 cm
- Package 1 Weight
- 3.146 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 40
- Package 2 Height
- 41.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 150.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Support rail
- Suitable for enclosure building depth
- 600 mm
- Height
- 28 mm
- Depth
- 575 mm
Standards & Compliance
- HS Code
- 7326.19
Cross References
- EAN 3606480064579
- SAP 1000089149
- Code 8581466
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(132kW)/400...440V(250kW)/500V(315kW) ATS22C48S6
Schneider Electric
Schneider Electric Cylindrical barrel - 2132A keylock NSYIN2132A1
Schneider Electric
Selector switch with LIGHT 2ST.IMP.BLUE LED
ZB4BK1463
Schneider Electric
Pipe 50X50 0,5 M (NSYCMT5005)
Schneider Electric

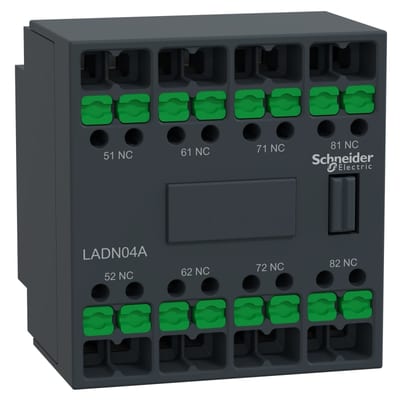

Schneider Electric Auxiliary contact block, TeSys Deca, 4NC, front mounting, snap-in terminals LADN04A
Schneider Electric
NG125L/C 63-1 Modular Power Switch
18784
Schneider Electric

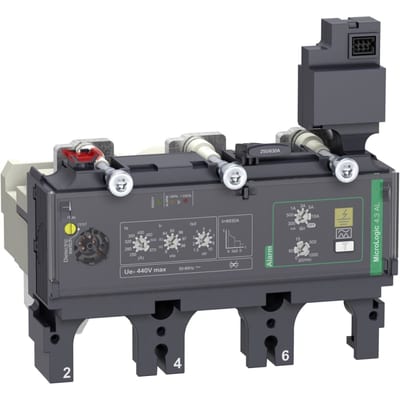

Schneider Electric Trip unit MicroLogic Vigi 4.3AL, ComPacT NSX630, 3 poles, electronic basic protections, earth leakage alarm, 570A C6334A570
