NG125L/C 63-1 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18784 NG125L/C 63-1 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18784
- EAN / GTIN
- 3303430187844
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Built-in depth
- 47 mm
- Release characteristic
- C
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 63 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 1.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187844
- SAP 1000055798
- Code 8840560
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Trip unit MicroLogic Vigi 4.3AL, ComPacT NSX630, 3 poles, electronic basic protections, earth leakage alarm, 570A C6334A570
Schneider Electric
Schneider Electric MasterPact MTZ2/MTZ3 cable-type door interlock spare
LV848614SP
Schneider Electric
GALV.MOUNTING Plate 600X1200
NSYSPMP60120
Schneider Electric
Schneider Electric variable speed drive, Altivar 212, 5.5kW, 7.5hp, 480V, 3 phases, with EMC, IP21 ATV212HU55N4
Schneider Electric
Gland Plate 2-piece 8X8
NSYEC881
Schneider Electric

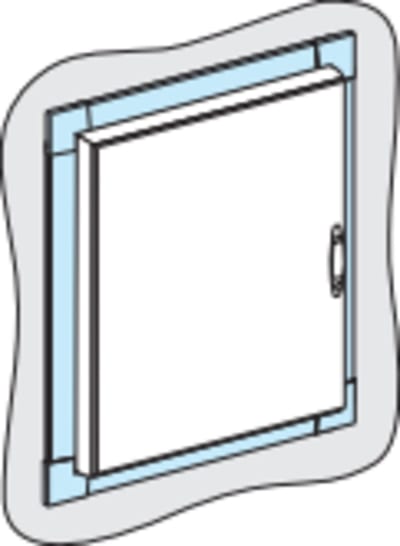

INNFELLINGSETT-21-27MOD-IP30-PRISMASET G (LVS08820)
Schneider Electric

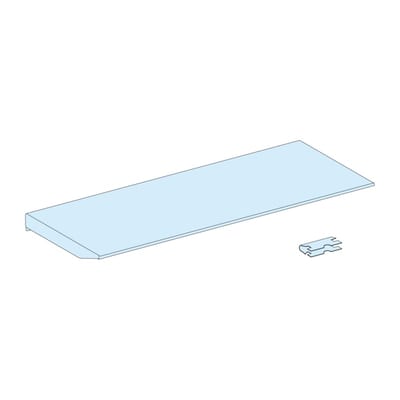

CEILING-IP31-FOR PrismaSeT G-B600+300+600
LVS08833
Schneider Electric

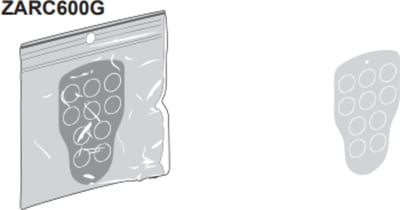

Schneider Electric Push button front cover, configurable ZARC600G
