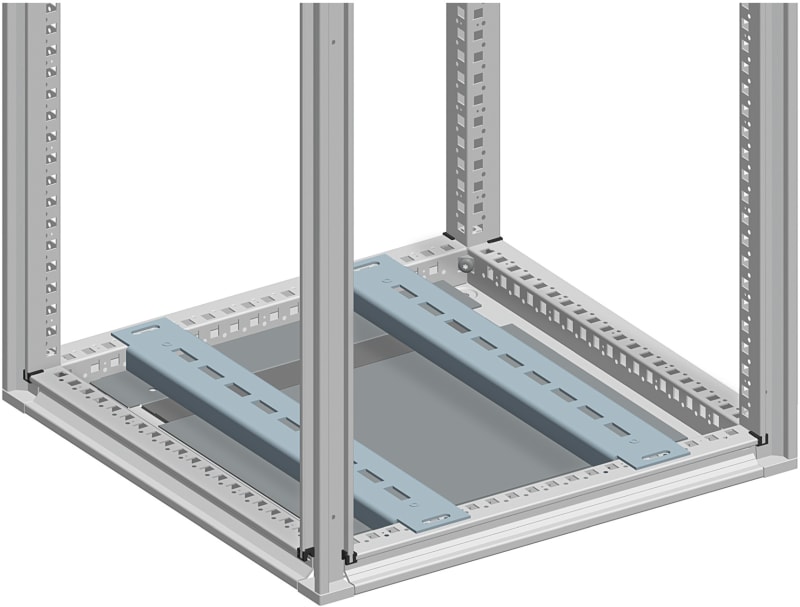

Schneider Electric Heavy load cross rails, PanelSeT SFN, PanelSet SF, W500MM, set of 2 NSYHLCR50
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYHLCR50 Cross-arm 500mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYHLCR50
- EAN / GTIN
- 3606480064562
- Sales unit
- pcs
- Range
- PanelSeT
- Product specific application
- Heavy loading
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Rails for heavy load
- Application
- Multi-purpose
- Nominal dimensions of the housing
- - D: 500 mm
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SF 5G
- Mounting location
- On structure of enclosure
- Mounting support
- Bottom frame; Heavy load kit
- Device composition
- fixing elements; 2 rails
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing element - screw type M6
- Adjustment
- Adjustable with a pitch of 25 mm
- Maximum load
- 525 kg
- Width
- Fixing centers: 450 mm; Nominal: 500 mm
- thickness
- 3 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 48.000 cm
- Package 1 Weight
- 2.600 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 20
- Package 2 Height
- 29.000 cm
- Package 2 Width
- 37.500 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 52.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Support rail
- Suitable for enclosure building depth
- 500 mm
- Height
- 28 mm
- Depth
- 475 mm
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480064562
- SAP 1000089148
- Code 8913676
Product Documentation
More from Schneider Electric
Schneider Electric
Overload relay for TeSys G, spring
LA9G82
Schneider Electric
Schneider Electric Locking system CNOMO kit, PanelSeT SFN, PanelSeT SF, PanelSeT SM, mechanism and fixing elements NSYCNOH123
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 3 poles, TMD trip unit 100A C10W3TM100
Schneider Electric

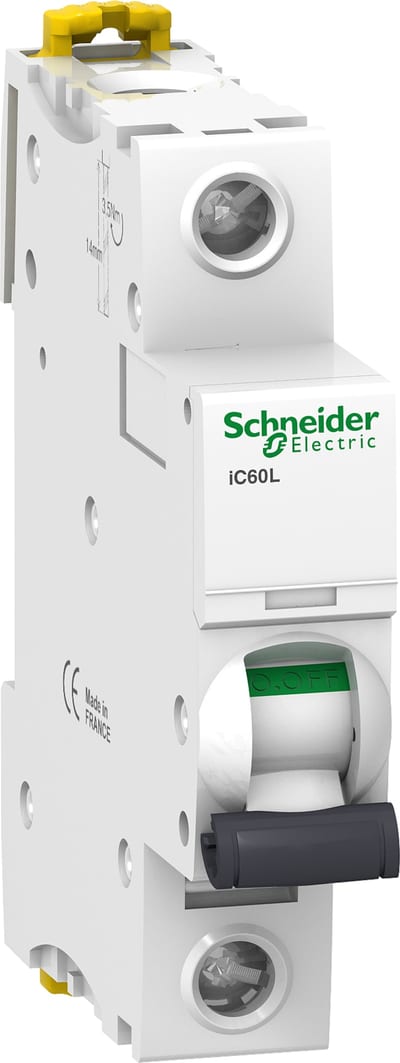

Schneider Electric A9F93106 ACTI9 IC60L Miniature Circuit Breaker 1P 6 A, Curve B
