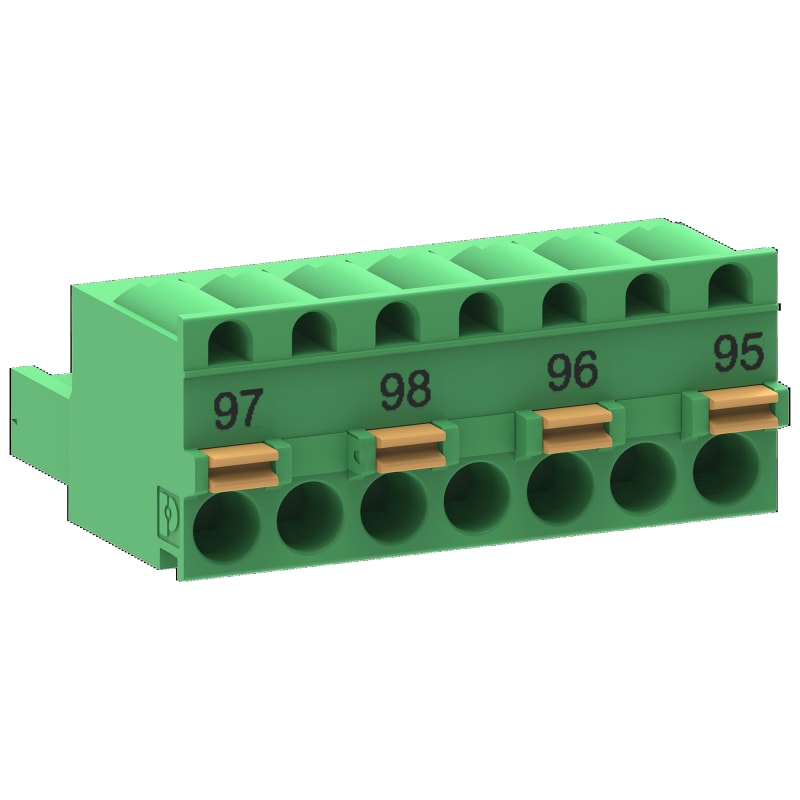

Overload relay for TeSys G, spring

Schneider Electric LA9G82 Spring terminal for TeSys Giga electronic overlastrelay LR9G.

Manufacturer part number (MPN)

LA9G82

EAN / GTIN

3606481916051

Sales unit

pcs

Package quantity

10 pcs

Range

TeSys

Device short name

LA9G

Product or component type

Connector

Device application

Control circuit

Range compatibility

TeSys G

Quantity per set

Set of 1

Rated voltage

600 V AC 50/60 Hz UL; 600 V AC 50/60 Hz IEC

[Ie] rated operational current

10 A

Pin number

4

Dielectric test voltage

3000 kV, 1 minute AC

Overvoltage category

III

Connections - terminals

Control circuit: push-in 1 cable(s) 0.2…2.5 mm² solid stranded without cable end; Control circuit: push-in 1 cable(s) 0.25…2.5 mm² flexible with cable end; Control circuit: push-in 2 cable(s) 0.5…1.0 mm² with cable end

Product weight

0.05 kg

Height

15 mm

Width

26 mm

Depth

36 mm

IP degree of protection

IP20 conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947-1

Standards

EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-60…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

CN

Warranty (in months)

18

Type of accessory/spare part

Connection technique

Accessory

Yes

Spare part

Yes

HS Code

8536.50
